Schneider Electric NSYSF12680E
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

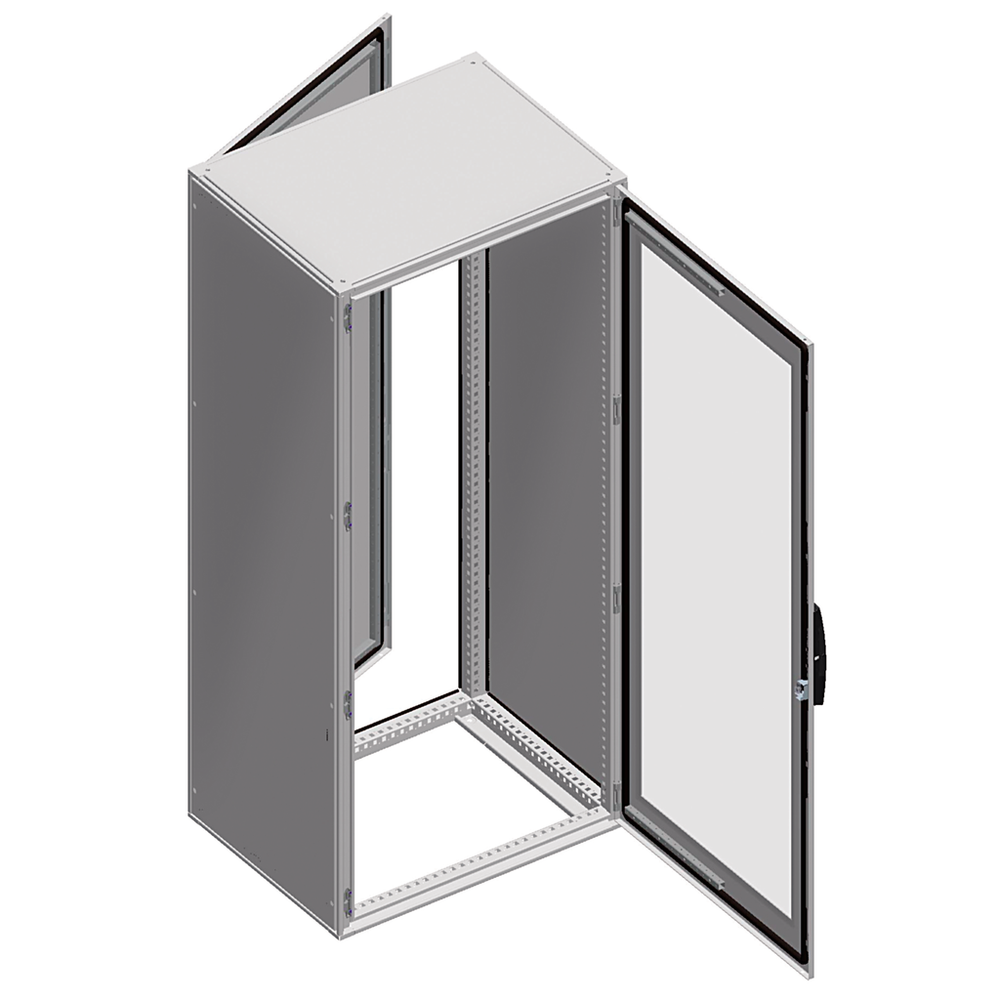

Spacial SF electronic enclosure - assembled - 1200x600x800 mm
Schneider Electric NSYSF12680E is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Accessibility For Operation
- rear || sides of enclosure || front
- Color
- enclosure Gray RAL 7035) || handle Black RAL 9005)
- Door Opening Side
- reversible 120 °)
- Door Type
- Solid front || Glass rear
- Lock Type
- 4 points lock, handle with 5 mm double bar insert front and rear doors
- Material
- frame galvanised steel || uprights galvanised steel || door sheet steel || panels sheet steel || hinge zamak || handle polyamide 6 with 30 % fibre glass
- Mounting Plate Description
- without mounting plate
- Number Of Doors
- front and rear 2
- Removable Parts
- door by screws hinge || roof by screws || side panel by screws
- Structure Type
- panels and doors built into the structure || vertical uprights joined with top and bottom frames || perforated structure with a pitch of 25 mm || formed from a single section
- Surface Finish
- epoxy-polyester powder
- Type Of Gland Plate
- without gland plate
Contractual warranty
- Warranty
- 18 months
Environment
- Ik Degree Of Protection
- IK08 IEC 62262 of transparent door) || IK10 IEC 62262 of plain door)
- Ip Degree Of Protection
- IP55 IEC 60529
- Nema Degree Of Protection
- NEMA 3R/12
- Standards
- IEC 62208
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP110923EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Application
- electronic application
- Device Composition
- 1 structure || 1 locking system with handle door || 1 roof || 2 door front and rear || 2 side panels
- Enclosure Mounting
- floor-standing
- Enclosure Nominal Depth
- 800 mm
- Enclosure Nominal Height
- 1200 mm
- Enclosure Nominal Width
- 600 mm
- Product Name
- Spacial SF-E
- Product Or Component Type
- suitable enclosure
- Range
- Spacial
