Schneider Electric NSYSBM152012
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

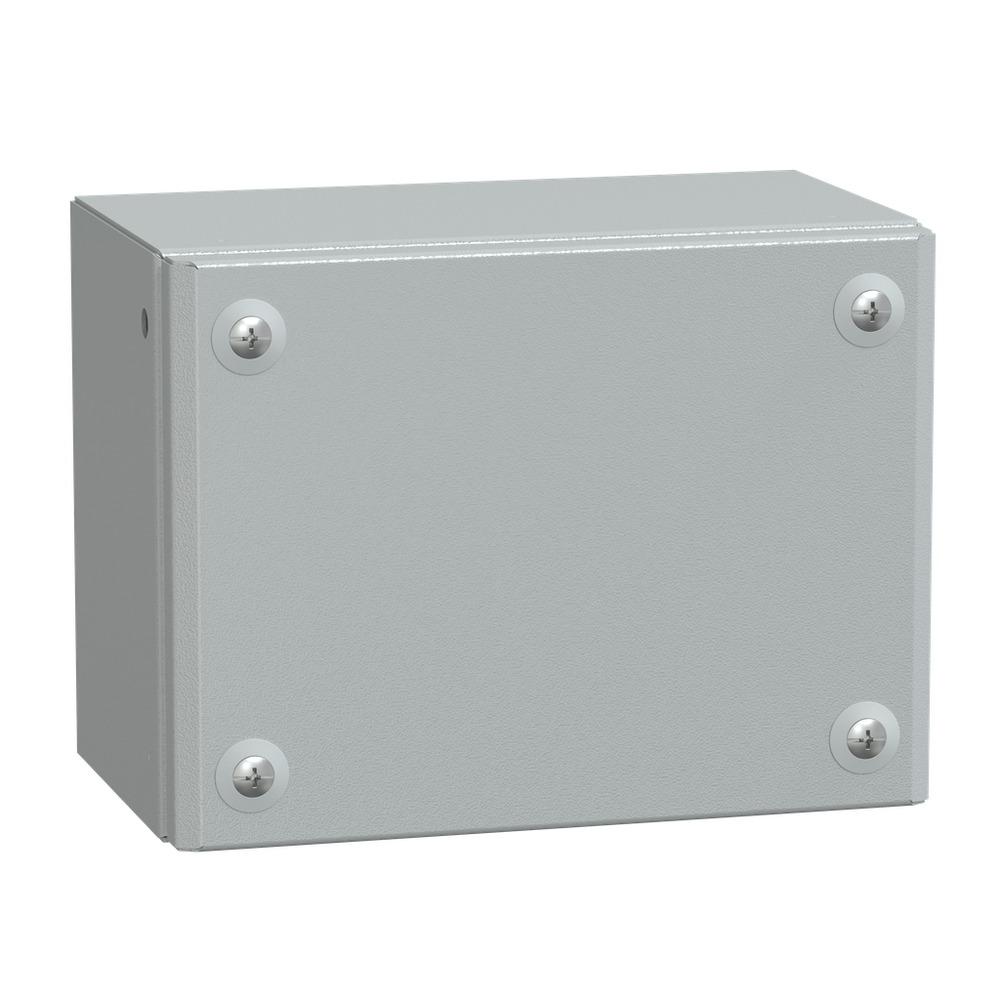

Industrial box for Spacial SBM. Multi purpose. 150 x 200 x 120 mm. Flat face box. Wall mounted on enclosure. Single piece body folded and welded. Cover fixing with half turn metal srew. Cover by 4 captive screw PZ2 outside sealed area. Made sheet of steel with polyester powder finish. Protection IP 66, IK10.Metal industrial box plain door H150xW200xD120 IP66 IK10 RAL 7035
Schneider Electric NSYSBM152012 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Ambient Air Temperature For Operation
- -35-80 °C
- Ambient Air Temperature For Storage
- -35-60 °C
- Color
- Gray RAL 7035)
- Ik Degree Of Protection
- IK10 IEC 62262
- Ip Degree Of Protection
- IP66 IEC 60529
- Material
- sheet steel
- Net Weight
- 1.542 kg
- Product Certifications
- LR || DNV-GL || UL || BV
- Standards
- IEC 62208
- Surface Finish
- polyester powder
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP121023EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
Specifications
- Body Type
- single piece body folded and welded
- Cover Fixing
- half turn metal screw
- Device Application
- multi-purpose
- Device Composition
- 4 cover screw || 1 cover || 1 body
- Device Short Name
- SBM
- Enclosure Mounting
- wall mounted
- Enclosure Nominal Depth
- 120 mm
- Enclosure Nominal Height
- 150 mm
- Enclosure Nominal Width
- 200 mm
- Enclosure Type
- flat face box
- Lock Type
- captive screw PZ2 outside sealed area
- Product Name
- Spacial SBM
- Product Or Component Type
- industrial box
- Range
- Spacial
- Removable Parts
- cover by captive screws
- Type Of Front Cover
- plain door
