Description

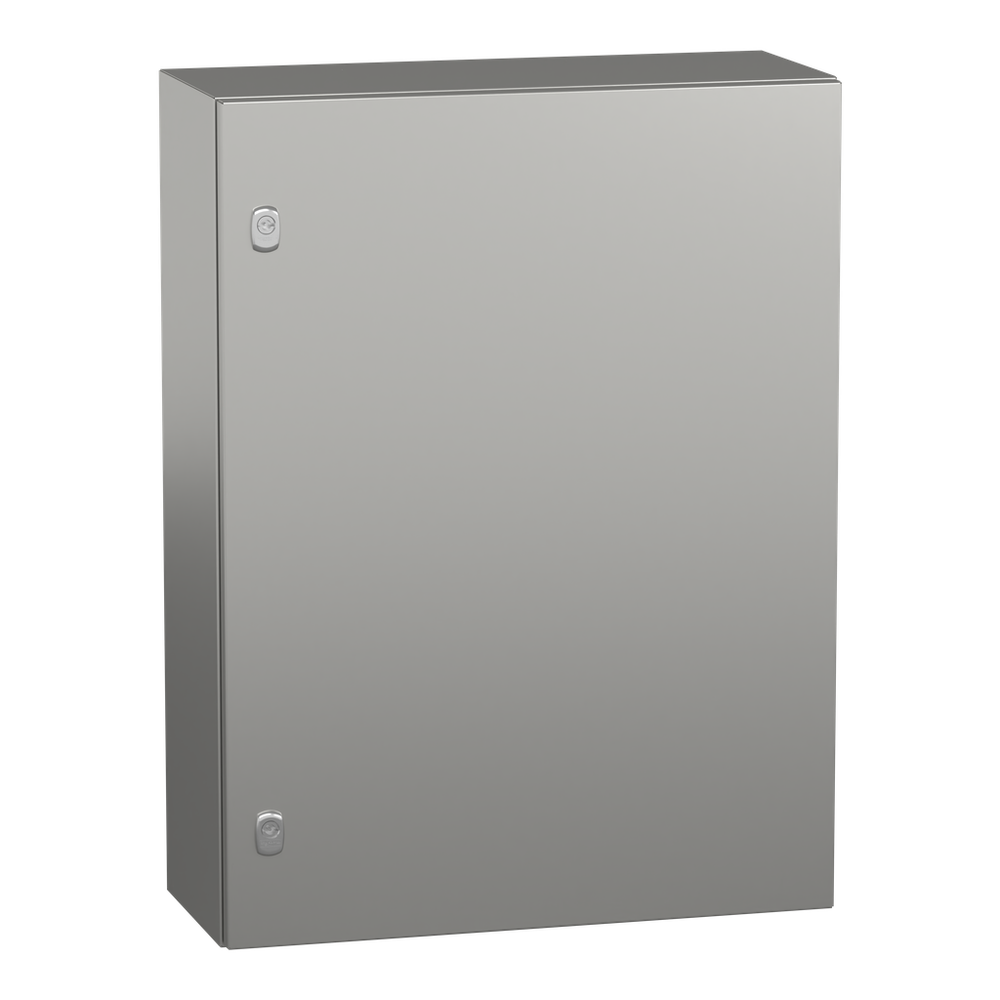

Wall mounted enclosure, Spacial S3X, stainless steel 316L, plain door, 800x600x250mm, IP66
Schneider Electric NSYS3X8625H is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Accessibility For Operation
- front
- Body Type
- single piece body, cross-shaped structure || gutter shaped front rail
- Door Opening Side
- reversible 120 °)
- Door Type
- Solid
- Lock Type
- 2 points lock, 3 mm double-bar
- Material
- lock zamak || hinge stainless steel || body and door stainless steel 316L
- Mounting Plate Description
- without mounting plate
- Net Weight
- 22.58 kg
- Number Of Doors
- front face 1
- Removable Parts
- door by hinges
- Surface Finish
- body and door Scotch-Brite® brushed || lock chromium plated
- Type Of Gland Plate
- without gland plate
Contractual warranty
- Warranty
- 18 months
Environment
- Environmental Characteristic
- specific hygiene || corrosive
- Ik Degree Of Protection
- IK10 IEC 62262
- Ip Degree Of Protection
- IP66 IEC 60529
- Product Certifications
- CAN/CSA 22 || UL 508 type A
- Standards
- IEC 62208
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Environmental Disclosure
- ENVPEP2109018EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Application
- multi-purpose
- Device Composition
- 1 body || 1 door || 2 lock door || 2 perforated vertical profile drilled door
- Enclosure Nominal Depth
- 250 mm
- Enclosure Nominal Height
- 800 mm
- Enclosure Nominal Width
- 600 mm
- Installation Accessory Type
- wall-mounting
- Product Name
- Spacial S3X
- Product Or Component Type
- compact enclosure
- Range
- Spacial
