Schneider Electric NSYS3D6525
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

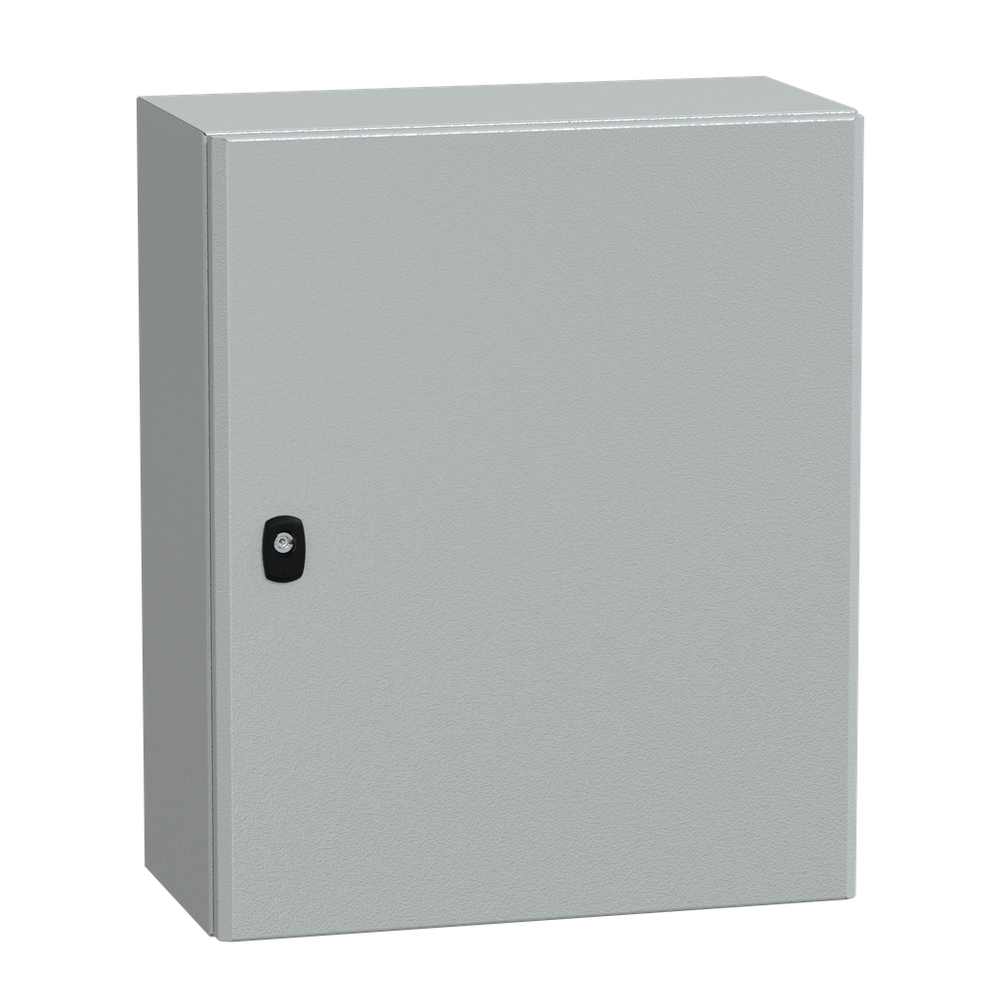

Spacial S3D wall mounted steel enclosure with plain door. 600 x 500 x 250 mm. Single piece body, without mounting plate. Robust construction based on a new design. 3-point closure system with handle and 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Gutter shaped front rail double sheet thickness. Protection IP 66, IK10, Grey RAL 7035. 1 cable gland plate included, standard. Extensive range of accessories. Packaging is reusable after assembly.Wall mounted steel enclosure, Spacial S3D, plain door, without mounting plate, 600x500x250mm, IP66, IK10
Schneider Electric NSYS3D6525 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Accessibility For Operation
- front
- Color
- Gray RAL 7035)
- Door Opening Side
- reversible 120 °)
- Lock Type
- 3 points lock, 3 mm double-bar
- Material
- steel
- Net Weight
- 13.466 kg
- Number Of Doors
- front face 1
- Product Certifications
- BV || DNV || cUL || LR || UL || GL
- Removable Parts
- door by hinges || cable gland plate by screws
- Standards
- IEC 62208
- Surface Finish
- epoxy-polyester powder
- Variant Particularity
- gutter-shaped front rail double sheet thickness || single piece body
Contractual warranty
- Warranty
- 18 months
Environment
- Ik Degree Of Protection
- IK10 IEC 62262
- Ip Degree Of Protection
- IP66 IEC 60529
- Nema Degree Of Protection
- NEMA 4X/13
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP100104EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Application
- multi-purpose
- Device Composition
- 1 body || 1 door || 1 lock || 1 cable gland plate
- Door Type
- Solid
- Enclosure Nominal Depth
- 250 mm
- Enclosure Nominal Height
- 600 mm
- Enclosure Nominal Width
- 500 mm
- Installation Accessory Type
- wall-mounting
- Mounting Plate Description
- without mounting plate
- Product Name
- Spacial S3D
- Product Or Component Type
- compact enclosure
- Range
- Spacial
- Type Of Gland Plate
- standard
