Description

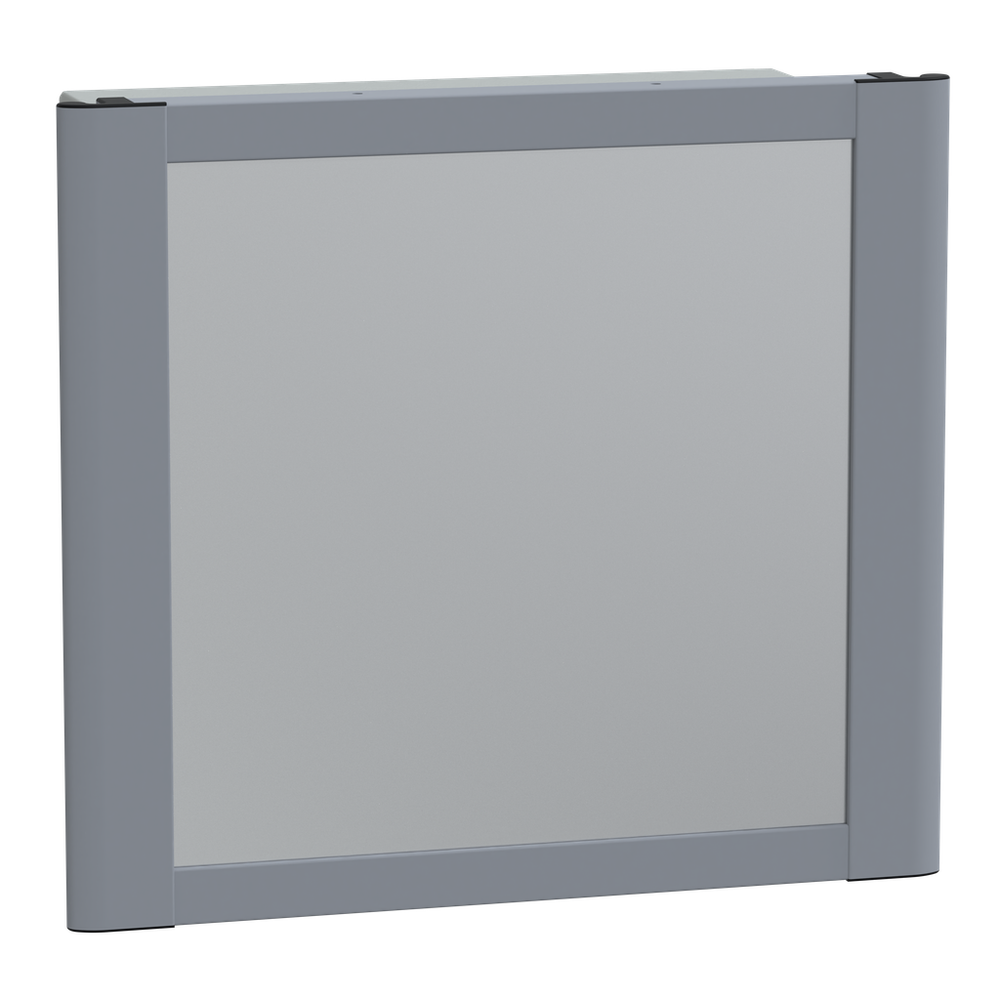

Spacial S3CM suspension system steel enclosure with trim frame aluminium. 500 x 500 x 250 mm. Human-machine dialogue application. Single piece body, without mounting plate included. 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Protection IP 54, IK10, Enclosure grey RAL 7035, front face grey RAL 7040.HMI encl. Spacial S3CM H500xW500xD250IP54 IK10, RAL7035.Rear door.
Schneider Electric NSYS3CM505025 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Accessibility For Operation
- rear
- Body Type
- single piece body
- Color
- enclosure Gray RAL 7035) || front face Gray RAL 7040)
- Door Opening Side
- reversible 120 °)
- Door Type
- Solid
- Lock Type
- 3 mm double-bar lock
- Material
- enclosure and front face steel || trim frame aluminium
- Mounting Plate Description
- without mounting plate
- Net Weight
- 16.53 kg
- Number Of Doors
- rear 1
- Removable Parts
- door by hinges || trim frame by screws || 2 rails by screws
- Surface Finish
- epoxy-polyester powder
- Type Of Gland Plate
- without gland plate
Contractual warranty
- Warranty
- 18 months
Environment
- Ik Degree Of Protection
- IK10 IEC 62262
- Ip Degree Of Protection
- IP54 IEC 60529
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP100104EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Application
- human-machine dialogue application
- Device Composition
- 1 body || 1 door with lock || 2 rail || 1 reinforcement plate || 1 front trim frame
- Enclosure Nominal Depth
- 250 mm
- Enclosure Nominal Height
- 500 mm
- Enclosure Nominal Width
- 500 mm
- Installation Accessory Type
- suspension system
- Product Destination
- interface
- Product Name
- Spacial S3CM
- Product Or Component Type
- control enclosure
- Range
- Spacial
