Description

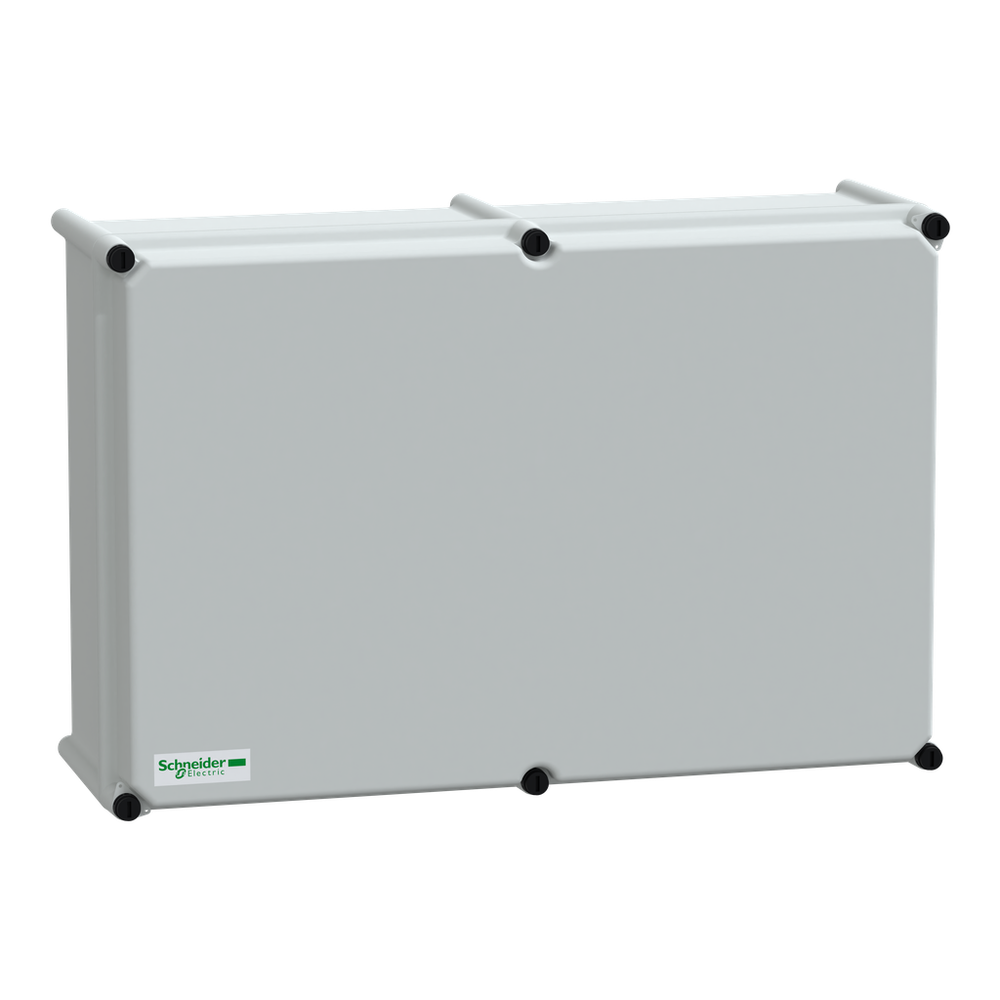

PLS box, polyester rear, opaque PC cover IP66 36x54x18cm
Schneider Electric NSYPLSC3654G is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Color
- body Gray RAL 7035)
- Material
- Cover polycarbonate || rear polyester reinforced with fibreglass
- Product Certifications
- UL
- Removable Parts
- cover locking screw
- Standards
- NEMA classification 13 || IEC 62208 || NEMA 4X
Environment
- Ambient Air Temperature For Storage
- -30-70 °C
- Electrical Insulation Class
- class II
- Fire Resistance
- 960 °C IEC 62208
- Ik Degree Of Protection
- IK09 IEC 62262
- Ip Degree Of Protection
- IP66 IEC 60529
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP110704EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Body Type
- one piece moulded
- Device Application
- multi-purpose
- Device Composition
- 1 cover on enclosure || 1 rear part on enclosure || locking screws
- Device Short Name
- PLS
- Enclosure Mounting
- wall mounted
- Enclosure Nominal Depth
- 180 mm
- Enclosure Nominal Height
- 360 mm
- Enclosure Nominal Width
- 540 mm
- Lock Type
- slot screw
- Product Name
- Thalassa PLS
- Product Or Component Type
- insulating modular box
- Range
- Thalassa
- Type Of Front Cover
- low plain cover
