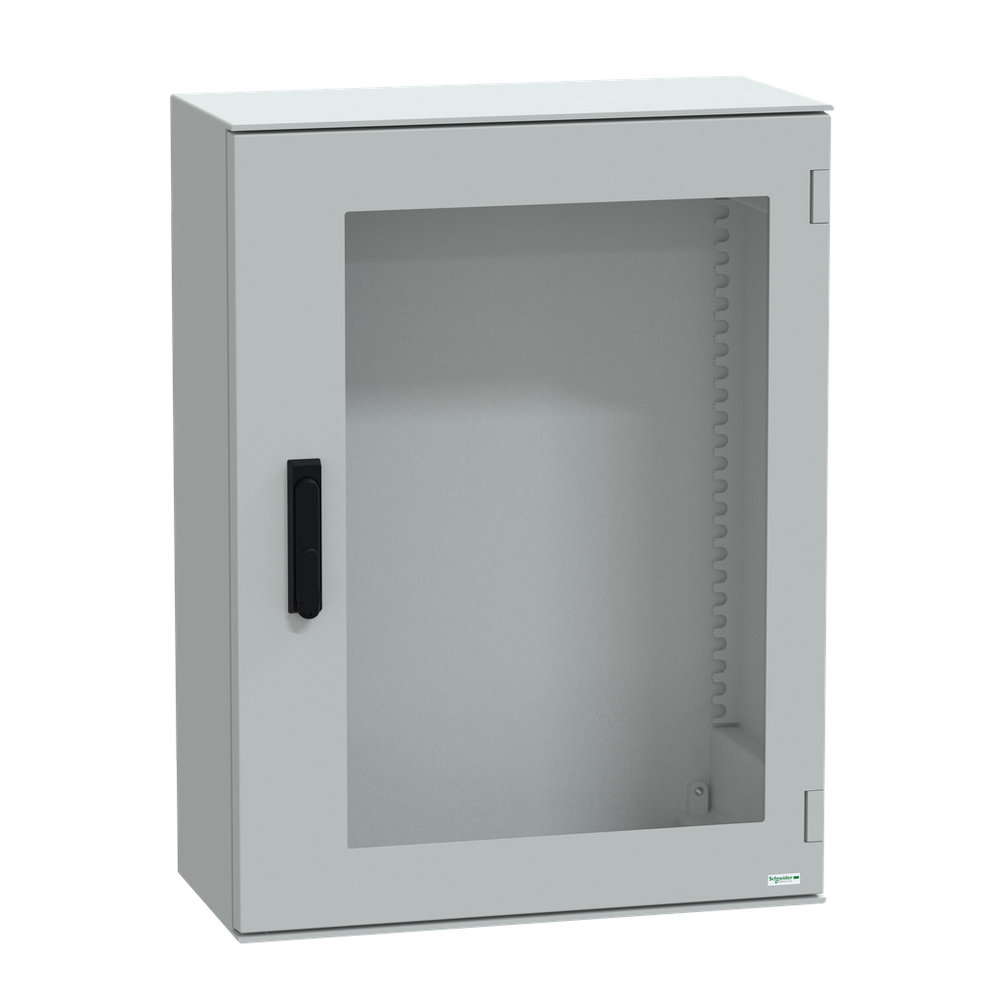

Schneider Electric NSYPLM86TVG
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Thalassa PLM wall-mounting polyester enclosure monobloc w/glazed door. 847 x 636 x 300 mm. Built-in canopy, one piece moulded with notches in the rear. Without mounting plate. 2 locks (3 points lock, handle with 1242E key lock). Accessible front. Polyester reinforced with fibreglass, tempered glass door. Grey RAL 7035. IP66, IK08, NEMA (13,4X) 960°C fire resistance.Wall mounted polyester enclosure, Thalassa PLM, glazed door, with handle, 847x636x300mm, IP66, IK08, RAL 7035
Schneider Electric NSYPLM86TVG is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Accessibility For Operation
- front
- Color
- Gray RAL 7035)
- Electrical Insulation Class
- class II
- Material
- body polyester reinforced with fibreglass || door tempered glass
- Mounting Plate Description
- without mounting plate
- Number Of Locks
- 1
- Product Certifications
- UL
- Removable Parts
- door by hinges
- Standards
- IEC 62208 || NEMA classification 4X || NEMA classification 13
Environment
- Ambient Air Temperature For Operation
- -40-80 °C
- Fire Resistance
- 960 °C IEC 62208
- Ik Degree Of Protection
- IK08 IEC 62262
- Ip Degree Of Protection
- IP66 IEC 60529
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP110118EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Application
- multi-purpose
- Device Composition
- 1 body || 1 door || 1 handle lock
- Device Short Name
- PLM
- Door Type
- transparent
- Enclosure Mounting
- wall mounted
- Enclosure Nominal Depth
- 300 mm
- Enclosure Nominal Height
- 847 mm
- Enclosure Nominal Width
- 636 mm
- Lock Type
- 3 points lock, handle with 1242E key lock
- Product Name
- Thalassa PLM
- Product Or Component Type
- compact enclosure
- Range
- Thalassa
