Schneider Electric NSYPLM810G
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

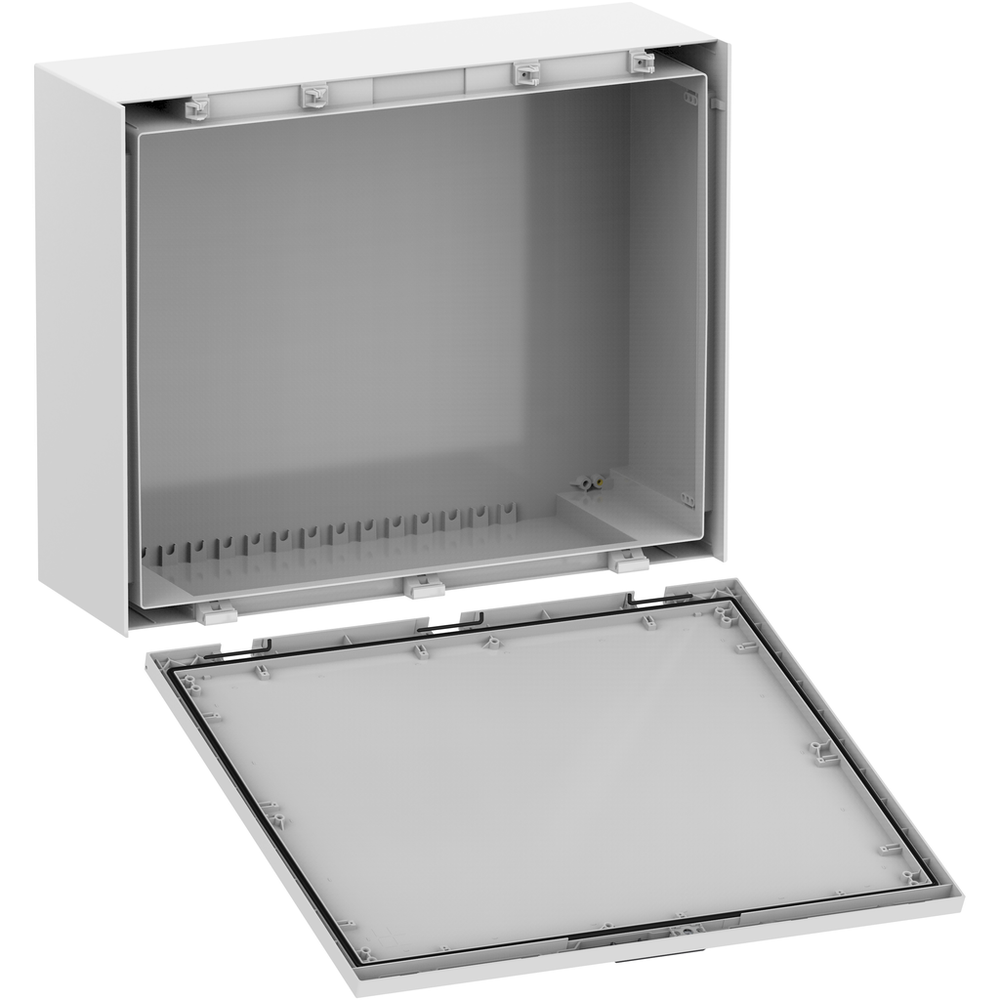

The Thalassa PLM landscape compact enclosure comes in grey colour and it's designed for multi-purpose application and photovoltaic (Solar). This compact enclosure is composed of body, door, lock. Featuring a removable door by cut hinges, comes without mounting plate. Has a built-in canopy, one piece moulded with notches in the rear. The compact enclosure is made of polyester reinforced with fibreglass, making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 1056 mm x (H) 852 mm x (D) 350 mm. The door type is plain, and the door opening side is down. Equipped with a 4 points lock, handle with 5 mm double bar insert lock type. It well satisfied the standard of IEC 62208, NEMA classification 13, NEMA classification 4X. This compact enclosure is BV, UL certified. This device is qualified as a green premium product, with minimal use of hazardous substances.Landscape (Horizontal) enclosure polyester monobloc IP66 H852xW1056xD350mm
Schneider Electric NSYPLM810G is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Accessibility For Operation
- front
- Color
- Gray RAL 7035)
- Electrical Insulation Class
- class II
- Material
- polyester reinforced with fibreglass
- Mounting Plate Description
- without mounting plate
- Number Of Locks
- 1
- Product Certifications
- UL || BV
- Removable Parts
- door by cut hinges
- Standards
- NEMA classification 13 || IEC 62208 || NEMA classification 4X
Environment
- Ambient Air Temperature For Operation
- -40-80 °C
- Fire Resistance
- 960 °C IEC 62208
- Ik Degree Of Protection
- IK10 IEC 62262
- Ip Degree Of Protection
- IP66 IEC 60529
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Environmental Disclosure
- ENVPEP110118EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Body Type
- built-in canopy, on lateral side || one piece moulded with notches in the rear
- Device Application
- multi-purpose
- Device Composition
- 1 body || 1 door || 1 lock
- Device Short Name
- PLM
- Door Opening Side
- down
- Door Type
- Solid
- Enclosure Mounting
- wall mounted
- Enclosure Nominal Depth
- 350 mm
- Enclosure Nominal Height
- 852 mm
- Enclosure Nominal Width
- 1056 mm
- Installation Direction
- horizontal
- Lock Type
- 4 points lock, handle with 5 mm double bar insert
- Product Name
- Thalassa PLM landscape
- Product Or Component Type
- compact enclosure
- Range
- Thalassa
