Schneider Electric NSYPLM75BG
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

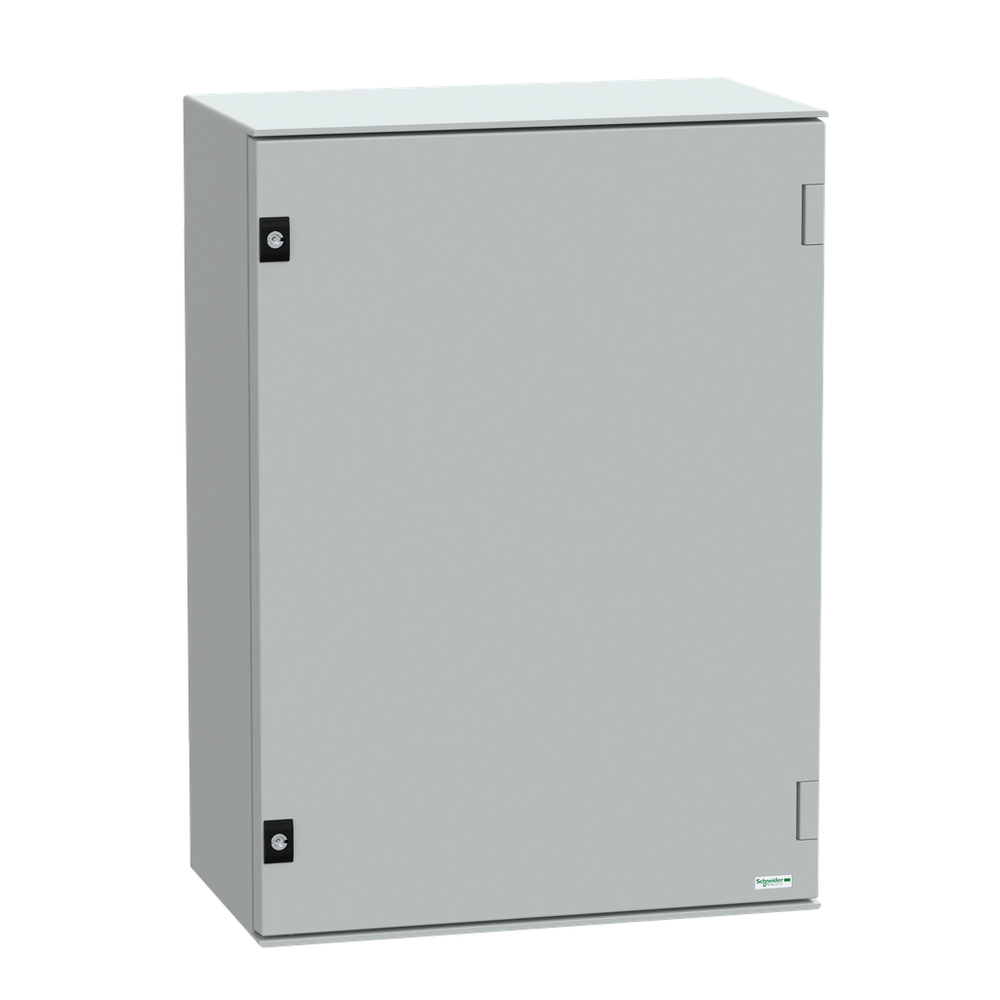

Wall mounted polyester enclosure, Thalassa PLM, plain door, with bakelite plate, 747x536x300mm, IP66, IK10, RAL 7035
Schneider Electric NSYPLM75BG is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Accessibility For Operation
- front
- Color
- Gray RAL 7035)
- Electrical Insulation Class
- class II
- Material
- polyester reinforced with fibreglass
- Mounting Plate Description
- plain bakelite
- Number Of Locks
- 2
- Product Certifications
- UL
- Removable Parts
- door by hinges || mounting plate by fixing element
- Standards
- NEMA classification 13 || IEC 62208 || NEMA classification 4X
Environment
- Ambient Air Temperature For Operation
- -40-80 °C
- Fire Resistance
- 960 °C IEC 62208
- Ik Degree Of Protection
- IK10 IEC 62262
- Ip Degree Of Protection
- IP66 IEC 60529
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP110118EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Application
- multi-purpose
- Device Composition
- 1 body || 1 door || 1 mounting plate || 2 lock
- Device Short Name
- PLM
- Door Type
- Solid
- Enclosure Mounting
- wall mounted
- Enclosure Nominal Depth
- 300 mm
- Enclosure Nominal Height
- 747 mm
- Enclosure Nominal Width
- 536 mm
- Lock Type
- 3 mm double-bar lock
- Product Name
- Thalassa PLM
- Product Or Component Type
- compact enclosure
- Range
- Thalassa
