Schneider Electric NSYMR3025
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

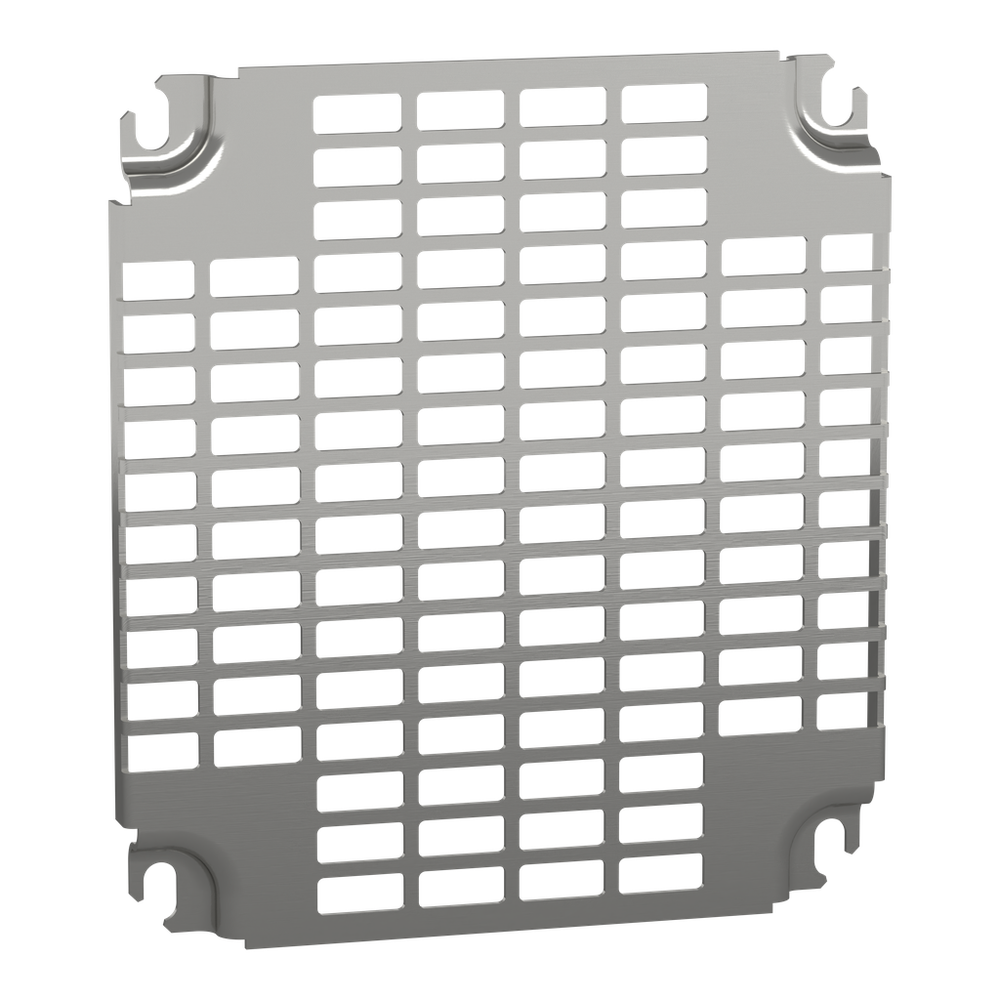

Monobloc perforated plates with universal perforations for CRN, S3D, PLM. For enclosures H is300 x W is250 mm. Multi-purpose accessory. Step slide or direct fixing on back studs mounting (M8 screws). Telequick perforated. Cut-out dimensions is 11x26mm. Steel made, zinc coated surface finish. 128 slots. Variant particularity is Installation in rear of enclosure.Monobloc perforated plates H300xW250mm with universal perforations 11x26mm
Schneider Electric NSYMR3025 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Cut-Out Dimensions
- 11 x 26 mm
- Depth
- 15 mm
- Fixing Mode
- screwed on backstuds M8 || by fixing element
- Height
- 253 mm
- Net Weight
- 0.463 kg
- Number Of Slots
- 128
- Thickness
- 2 mm
- Variant Particularity
- installation in rear of enclosure
- Width
- 228 mm
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP2202003EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
Specifications
- Accessory / Separate Part Category
- mounting accessory
- Device Application
- multi-purpose
- Enclosure Nominal Dimensions
- H: 300 mm W: 250 mm
- Material
- steel
- Mounting Location
- direct fixing on backstuds || step slide
- Mounting Plate Description
- Telequick perforated
- Product Or Component Type
- mounting plate
- Quantity Per Set
- set of 1
- Range
- Spacial
- Range Compatibility
- Spacial (Spacial S3D) || Spacial (Spacial CRN) || Spacial (Spacial S3X) || Thalassa (Thalassa PLM)
- Surface Finish
- zinc coated
