Schneider Electric NSYMD66
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

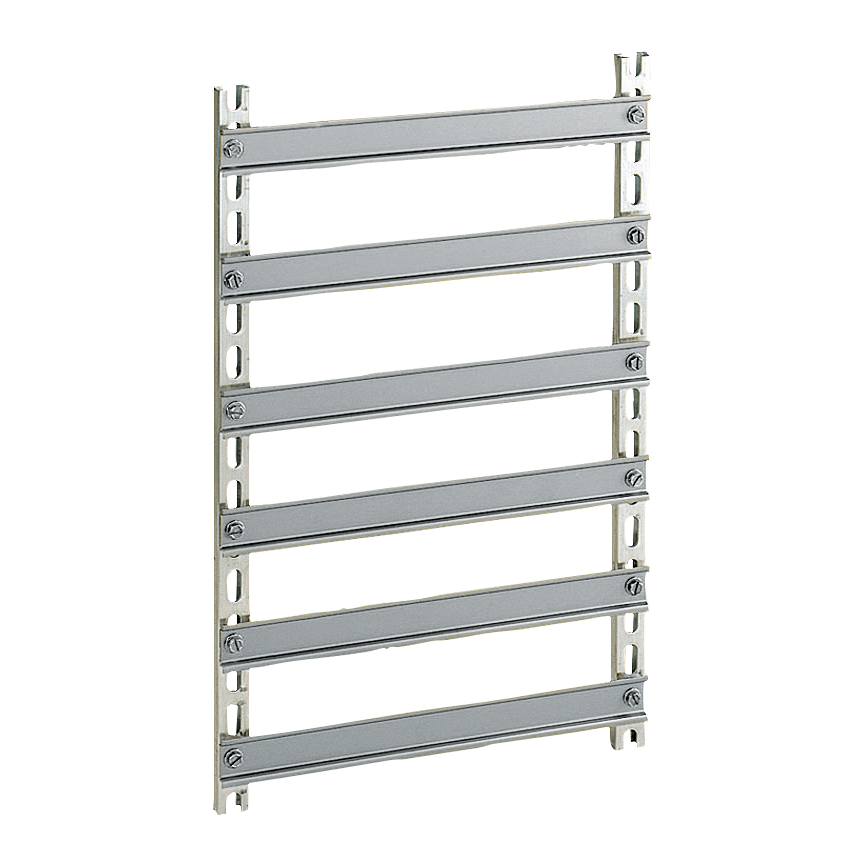

Symmetrical mounting chassis for enclosures (S3D, S3X, PLM, CRN). (6 rails) 600 x 600 mm. Vertical aluminium rails and 6 cross rails (symmetrical DIN). 2 uprights. Steel for rail, aluminum for uprights.Symmetrical mounting chassis (6 rails) for enclosure dimensions H600xW600mm
Schneider Electric NSYMD66 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Adjustment
- on step slides, type NSYSDCR…, pitch 12.5 mm
- Depth
- real 30 mm
- Fixing Mode
- screwed on backstuds || by fixing element
- Height
- nominal 600 mm || real 539.3 mm
- Material
- uprights aluminium || rail steel
- Width
- nominal 600 mm || real 550 mm
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP100104EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
Specifications
- Accessory / Separate Part Category
- mounting accessory
- Device Application
- multi-purpose
- Device Composition
- fixing elements || 6 DIN rail || 2 upright
- Mounting Support
- step slide || direct fixing on backstuds || spacer
- Product Or Component Type
- chassis
- Quantity Per Set
- set of 1
- Range
- Spacial
- Range Compatibility
- Spacial (Spacial CRN) || Spacial (Spacial S3D) || Spacial (Spacial S3X) || Thalassa (Thalassa PLM)
- Type Of Rail
- symmetrical DIN
