Description

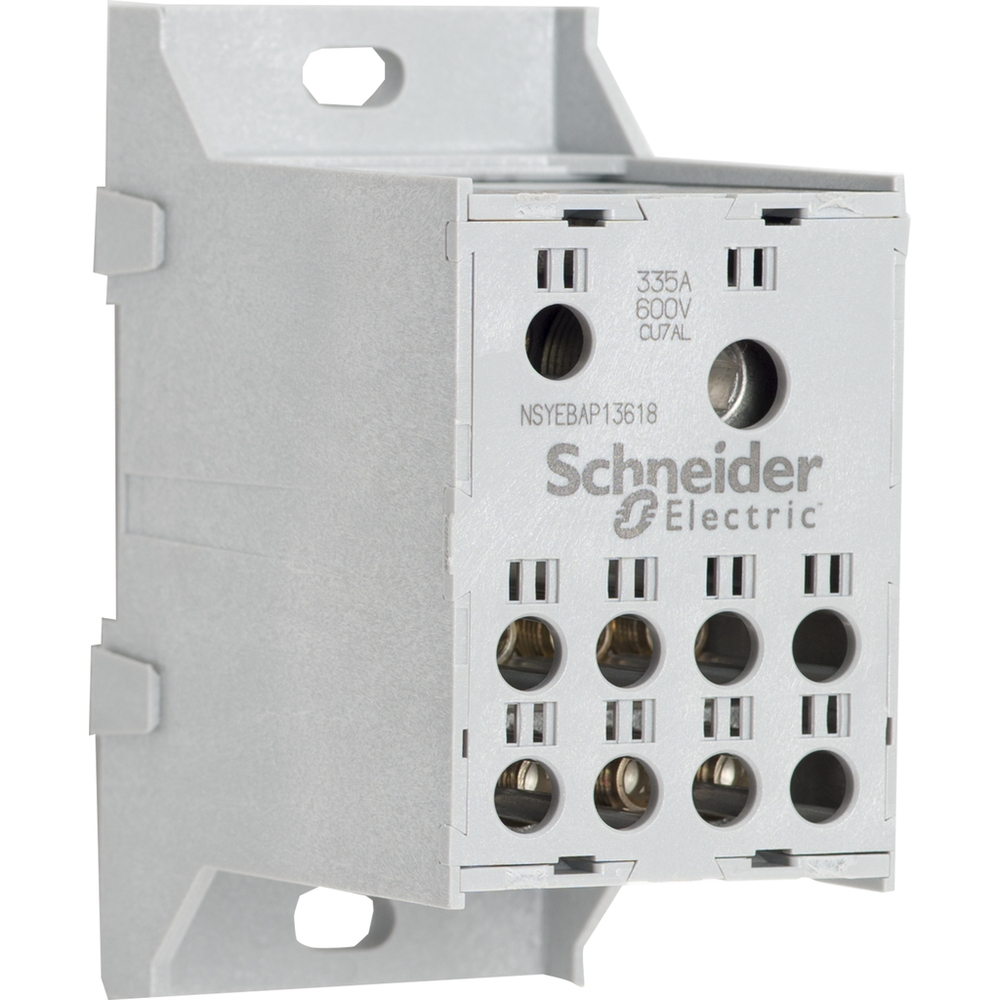

NSYEB power distribution blocks are enclosed IEC versions of our NEMA 9080 power distribution blocks, which are finger safe. The terminals of these power terminal blocks are finger safe from the front according to IP20. They are one pole modular units with an interlocking dovetail feature that enables ganging of the blocks to create multipole configurations according to application requirements. This block has a Short-Circuit Current Ratings (SCCR) of up to 100 kA with fuses and circuit breakers. Refer to the catalog for details on this. The lugs in these blocks are available with either copper or aluminum. This block has a tin plated aluminum lug. The line side lug of this block is rated to 335A at 600 V when copper wire is used and 270A at 600 V when aluminum wire is used. One of the line side terminals will accept 14 AWG to 3/0 AWG copper wires or 6 AWG to 3/0 AWG aluminium wires. The other line side terminal will accept 6 AWG to 400 kcmil copper wires or 6 AWG to 400 kcmil aluminium wires. The eight load side terminals will accept 14 AWG to 2 AWG copper wires or 6 AWG to 2 AWG aluminium wires. This block can be mounted directly to a panel. This block is 4.39 inches tall, 2.26 inches wide and 3.14 inches deep. This block is UL Listed, CSA cerified and RoHS compliant.Power distribution block, Linergy, enclosed, 335A CU, 270A AL, 600V, 2 line side lug, 8 load side lug, AL lug, panel
Schneider Electric NSYEBAP13618 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Colour Of Enclosure
- grey
- Connections - Terminals
- line lug 375 lbf.in AWG 2/0...400 kcmil copper || load lug 80 lbf.in AWG 6...AWG 2 copper || load lug 40 lbf.in AWG 14...AWG 8 copper || load lug 80 lbf.in AWG 6...AWG 2 aluminium || line lug 275 lbf.in AWG 6...AWG 1/0 copper || line lug 375 lbf.in AWG 2/0...400 kcmil aluminium || line lug 275 lbf.in AWG 6...AWG 1/0 aluminium || line lug 120 lbf.in AWG 1...AWG 3/0 copper || line lug 80 lbf.in AWG 6...AWG 2 copper || line lug 40 lbf.in AWG 14...AWG 8 copper || line lug 120 lbf.in AWG 1...AWG 3/0 aluminium || line lug 80 lbf.in AWG 6...AWG 2 aluminium
- Depth
- 3.14 in
- Electrical Connection
- tin plated aluminium lugs
- Fixing Mode
- by screws M6 || by screws 1/4 inch
- Height
- 4.39 in
- Line Rated Current
- 335-335 A copper || 270-270 A aluminium
- Material
- thermoplastic block
- Mounting Support
- panel
- Number Of Cables
- line 1 , AWG 14...AWG 3/0, copper || line 1 , AWG 6...AWG 3/0, aluminium || line 1 , AWG 6...400 kcmil, copper || line 1 , AWG 6...400 kcmil, aluminium || load 8 , AWG 14...AWG 2, copper || load 8 , AWG 6...AWG 2, aluminium
- Number Of Terminals
- 1 line || 8 load
- Product Compatibility
- NSYEBP2 AWG 2) || NSYEBP20 AWG 2/0) || NSYEBP400 400 kcmil)
- Short-Circuit Current
- 100 kA
- Tightening Torque
- line 375 lb.in, AWG 2/0...400 kcmil, copper || load 80 lb.in, AWG 6...AWG 2, copper || load 40 lb.in, AWG 14...AWG 8, copper || load 80 lb.in, AWG 6...AWG 2, aluminium || line 275 lb.in, AWG 6...AWG 1/0, copper || line 375 lb.in, AWG 2/0...400 kcmil, aluminium || line 275 lb.in, AWG 6...AWG 1/0, aluminium || line 120 lb.in, AWG 1...AWG 3/0, copper || line 80 lb.in, AWG 6...AWG 2, copper || line 40 lb.in, AWG 14...AWG 8, copper || line 120 lb.in, AWG 1...AWG 3/0, aluminium || line 80 lb.in, AWG 6...AWG 2, aluminium
- [Ue] Rated Operational Voltage
- 600 V AC/DC
- Width
- 2.26 in
- Wire Stripping Length
- line: 1 in || line: 1.44 in || load: 0.63 in for top connection || load: 0.63 in for bottom connection
Environment
- Ambient Air Temperature For Operation
- -40-257 °F
- Dielectric Strength
- 1000 V 185 mm² IEC 60947-7-1
- Product Certifications
- CSA file 70361 class 6228 01 || CE || UL recognized E60616 CCN XCFR2
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free product
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Product Or Component Type
- Power Distribution Block
- Range Of Product
- NSYEB
