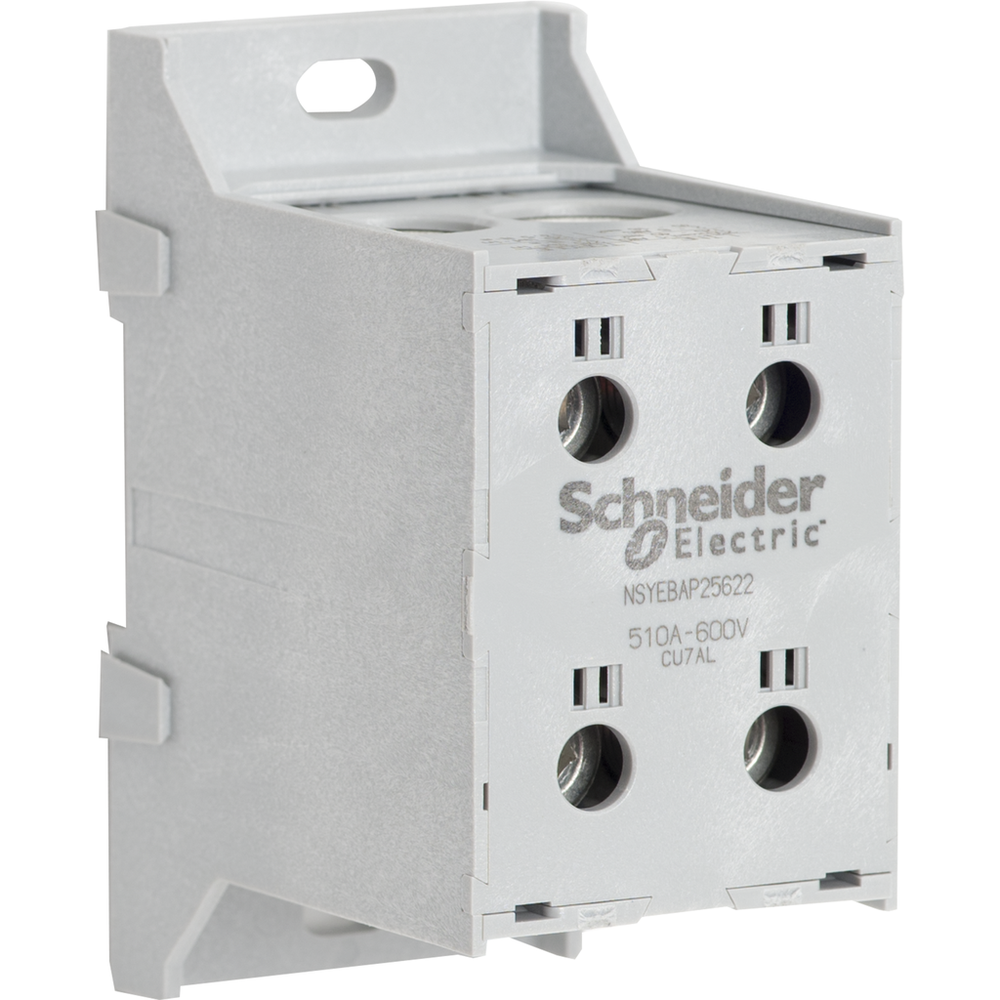

Schneider Electric NSYEBAD25622
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
NSYEB power distribution blocks are enclosed IEC versions of our NEMA 9080 power distribution blocks, which are finger safe. The terminals of these power terminal blocks are finger safe from the front according to IP20. They are one pole modular units with an interlocking dovetail feature that enables ganging of the blocks to create multipole configurations according to application requirements. This block has a Short-Circuit Current Ratings (SCCR) of up to 10 kA with fuses and circuit breakers. Refer to the catalog for details on this. The lugs in these blocks are available with either copper or aluminum. This block has a tin plated aluminum lug. The line side lug of this block is rated to 510A at 600 V when copper wire is used and 410A at 600 V when aluminum wire is used. Each of the two line side terminals will accept 6 AWG to 250 kcmil copper or aluminium wires. Each of the two load side terminals will accept 6 AWG to 250 kcmil copper or aluminium wires. This block can be mounted on 35 mm DIN rail. This block is 4.39 inches tall, 2.26 inches wide and 3.14 inches deep. This block is UL Listed, CSA cerified and RoHS compliant.Power distribution block, Linergy, enclosed, 510A CU, 410A AL, 600 V, 2 line side lug, 2 load side lug, AL lug, rail
Schneider Electric NSYEBAD25622 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Colour Of Enclosure
- grey
- Connections - Terminals
- line lug 275 lbf.in AWG 1...250 kcmil copper || line lug 120 lbf.in AWG 6...AWG 2 copper || line lug 275 lbf.in AWG 1...250 kcmil aluminium || line lug 120 lbf.in AWG 6...AWG 2 aluminium || load lug 275 lbf.in AWG 1...250 kcmil copper || load lug 120 lbf.in AWG 6...AWG 2 copper || load lug 275 lbf.in AWG 1...250 kcmil aluminium || load lug 120 lbf.in AWG 6...AWG 2 aluminium
- Depth
- 3.14 in
- Electrical Connection
- tin plated aluminium lugs
- Height
- 4.39 in
- Line Rated Current
- 510-510 A copper || 410-410 A aluminium
- Material
- thermoplastic block
- Mounting Support
- 35 mm DIN rail
- Number Of Cables
- line 2 , AWG 6...250 kcmil, copper or aluminium || load 2 , AWG 6...250 kcmil, copper or aluminium
- Number Of Terminals
- 2 line || 2 load
- Product Compatibility
- NSYEBP250 250 kcmil) || NSYEBP500 500 kcmil)
- Short-Circuit Current
- 10 kA
- Tightening Torque
- line 275 lb.in, AWG 1...250 kcmil, copper || line 120 lb.in, AWG 6...AWG 2, copper || line 275 lb.in, AWG 1...250 kcmil, aluminium || line 120 lb.in, AWG 6...AWG 2, aluminium || load 275 lb.in, AWG 1...250 kcmil, copper || load 120 lb.in, AWG 6...AWG 2, copper || load 275 lb.in, AWG 1...250 kcmil, aluminium || load 120 lb.in, AWG 6...AWG 2, aluminium
- [Ue] Rated Operational Voltage
- 600 V AC/DC
- Width
- 2.26 in
- Wire Stripping Length
- line: 1.38 in || load: 1.38 in
Environment
- Ambient Air Temperature For Operation
- -40-257 °F
- Dielectric Strength
- 1000 V 120 mm² IEC 60947-7-1
- Product Certifications
- CSA file 70361 class 6228 01 || UL recognized E60616 CCN XCFR2 || CE
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Product Or Component Type
- Power Distribution Block
- Range Of Product
- NSYEB
