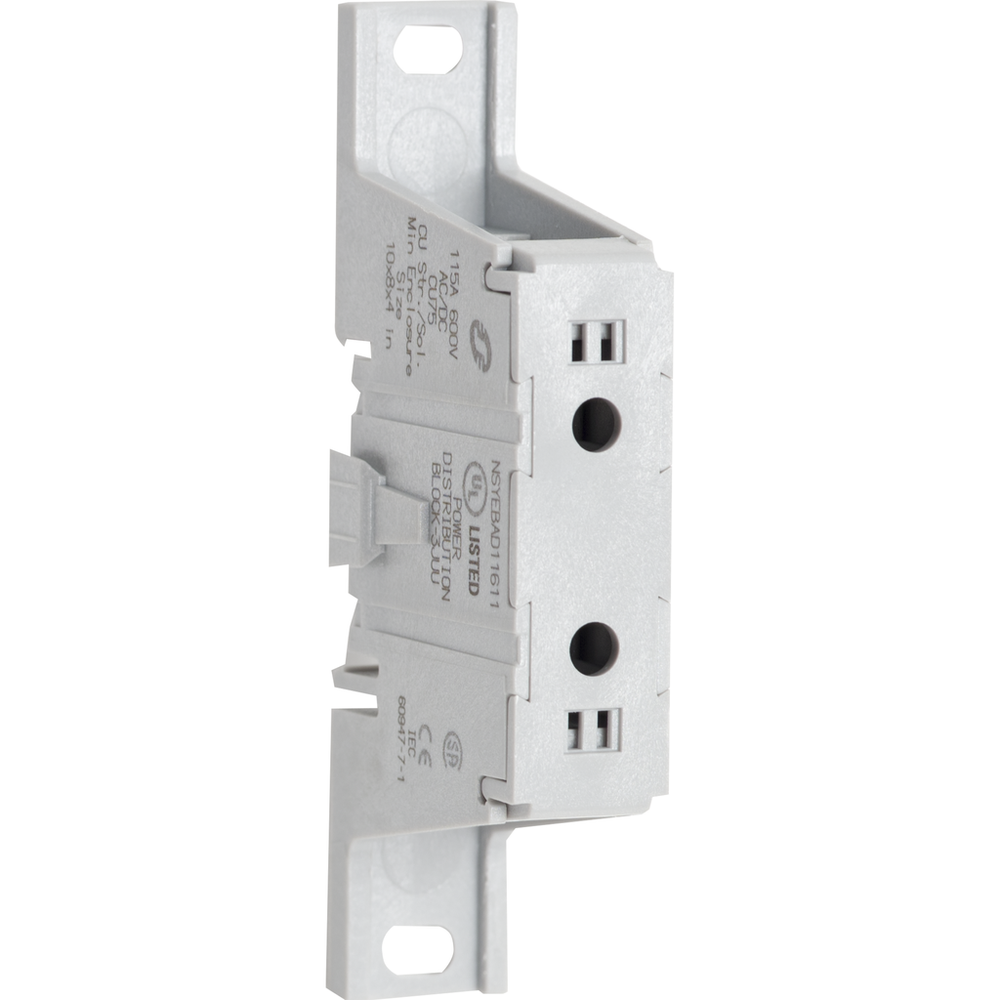

Schneider Electric NSYEBAD11611
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
NSYEB power distribution blocks are enclosed IEC versions of our NEMA 9080 power distribution blocks, which are finger safe. The terminals of these power terminal blocks are finger safe from the front according to IP20. They are one pole modular units with an interlocking dovetail feature that enables ganging of the blocks to create multipole configurations according to application requirements. This block has a Short-Circuit Current Ratings (SCCR) of up to 100 kA with fuses and circuit breakers. Refer to the catalog for details on this. The lugs in these blocks are available with either copper or aluminum. This block has a tin plated aluminum lug. The line side lug of this block is rated to 115A at 600 V when copper wire is used. The line side terminal will accept 14 AWG to 2 AWG copper wires. The load side terminal will accept 14 AWG to 2 AWG copper wires. This block can be mounted on 35 mm DIN rail or can be mounted directly to a panel. This block is 4.14 inches tall, 0.85 inches wide and 1.71 inches deep. This block is UL Listed, CSA cerified and RoHS compliant.Power distribution block, Linergy, enclosed, 115A CU, 600 V, 1 line side lug, 1 load side lug, AL lug
Schneider Electric NSYEBAD11611 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Colour Of Enclosure
- grey
- Connections - Terminals
- line lug 50 lbf.in AWG 3...AWG 2 copper || line lug 45 lbf.in AWG 6...AWG 4 copper || line lug 40 lbf.in AWG 8 copper || line lug 35 lbf.in AWG 14...AWG 10 copper || load lug 50 lbf.in AWG 3...AWG 2 copper || load lug 45 lbf.in AWG 6...AWG 4 copper || load lug 40 lbf.in AWG 8 copper || load lug 35 lbf.in AWG 14...AWG 10 copper
- Depth
- 1.71 in
- Electrical Connection
- tin plated aluminium lugs
- Fixing Mode
- by screws 10
- Height
- 4.14 in
- Line Rated Current
- 115-115 A copper
- Material
- thermoplastic block
- Mounting Support
- panel || 35 mm DIN rail
- Number Of Cables
- line 1 , AWG 14...AWG 2, copper || load 1 , AWG 14...AWG 2, copper
- Number Of Terminals
- 1 line || 1 load
- Short-Circuit Current
- 100 kA
- Tightening Torque
- line 50 lb.in, AWG 3...AWG 2, copper || line 45 lb.in, AWG 6...AWG 4, copper || line 40 lb.in, AWG 8, copper || line 35 lb.in, AWG 14...AWG 10, copper || load 50 lb.in, AWG 3...AWG 2, copper || load 45 lb.in, AWG 6...AWG 4, copper || load 40 lb.in, AWG 8, copper || load 35 lb.in, AWG 14...AWG 10, copper
- [Ue] Rated Operational Voltage
- 600 V AC/DC
- Width
- 0.85 in
- Wire Stripping Length
- line: 0.63 in || load: 0.63 in
Environment
- Ambient Air Temperature For Operation
- -40-257 °F
- Dielectric Strength
- 1000 V 35 mm² IEC 60947-7-1
- Product Certifications
- CSA file 70361 class 6228 01 || CE || UL listed file E323110 CCN QPQS
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free product
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Product Or Component Type
- Power Distribution Block
- Range Of Product
- NSYEB
