Description

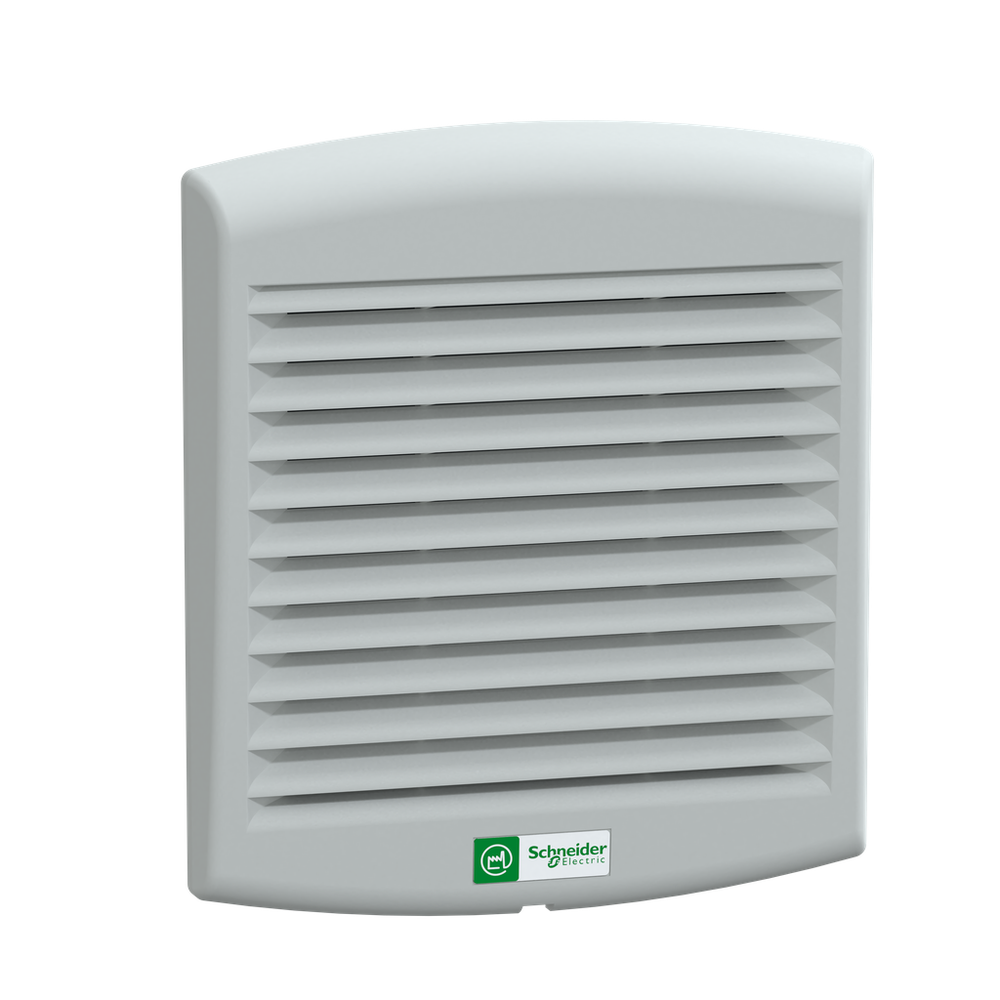

ClimaSys CV Axial motor ventilator. 24V DC 50Hz or 60Hz. 7.6W 50 Hz. Free flow rate with standard filter of 80 m3/h at 50 Hz. 170 x 150 x 62 mm. Cut-out dimensions of 125 x 125 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by cable. 2 protective grille on the front and rear surfaces. Protection IP54.ClimaSys forced vent. IP54, 80m3/h, 24V DC, with outlet grille and filter G2
Schneider Electric NSYCVF85M24DPF is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Ambient Air Temperature For Operation
- -10-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Bearing Type
- ball
- Color
- outlet grille Gray RAL 7035)
- Condition Of Use
- overfrequent filter replacement should be avoided || outside temperature must be 5 °C lower than inside temperature || surrounding environment must be relatively clean || filter must be cleaned and replaced regularly || flow rates depends on the work point, see ProClima software
- Connections - Terminals
- cable
- Cut-Out Dimensions
- 125 x 125 mm
- Depth
- external 62 mm
- Device Composition
- 1 axial motor || 2 protective grille on the front and rear surfaces || 1 filter front of axial motor || 1 outlet grille front || 1 cut-out template || 1 power cord
- Height
- external 170 mm
- Ip Degree Of Protection
- IP54
- Line Rated Current
- 0.3-0.3 A
- Material
- outlet grille injected thermoplastic (ASA PC)
- Maximum Pressure
- 50 Pa flow rate 0 m³/h
- Net Weight
- 0.48 kg
- Noise Level
- 46-49 dB
- Power Range
- 7.6 W
- Width
- external 150 mm
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI1107017EN
- Environmental Disclosure
- ENVPEP110717EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Air Flow
- free flow rate with standard filter: 80 m3/h
- Input Voltage
- 24 V DC
- Product Name
- ClimaSys CV
- Product Or Component Type
- fan
- Range
- ClimaSys
- Type Of Ventilation Filter
- standard
- [Us] Rated Supply Voltage
- 10...27.6 V
