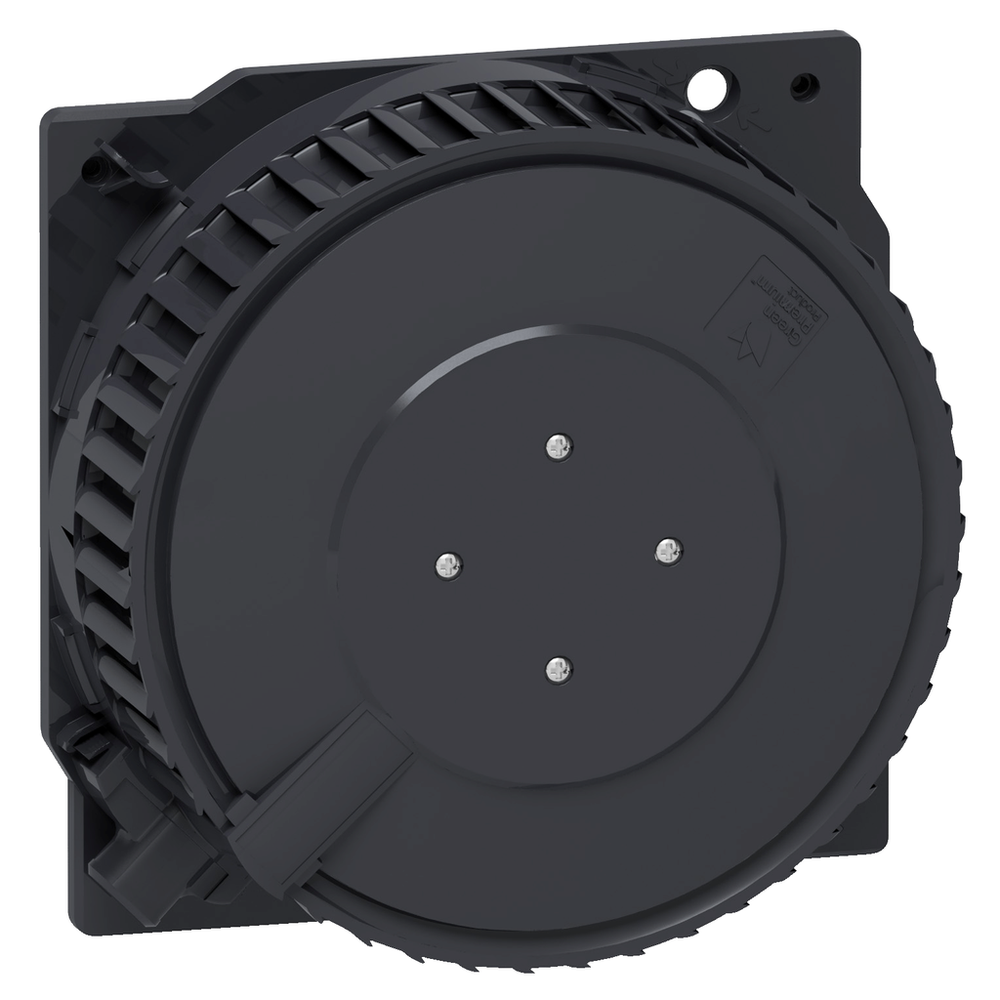

Schneider Electric NSYCVF550M115FB

Complementary

• Ambient Air Temperature For Operation
  • -40-70 °C
• Ambient Air Temperature For Storage
  • -40-80 °C
• Bearing Type
  • ball
• Color
  • dark grey RAL 7016)
• Condition Of Use
  • overfrequent filter replacement should be avoided || flow rates depends on the work point, see ProClima software || surrounding environment must be relatively clean || filter must be cleaned and replaced regularly || outside temperature must be 5 °C lower than inside temperature
• Connections - Terminals
  • spring clamp terminal
• Depth
  • external 90 mm
• Device Composition
  • 1 fanbox || 4 screw
• Height
  • external 223 mm
• Ip Degree Of Protection
  • grid IP55 || IP44
• Line Rated Current
  • 0.7-0.8 A 50 Hz
• Maximum Pressure
  • 300 Pa flow rate 0 m³/h
• Net Weight
  • 1.7 kg
• Noise Level
  • 60-60 dB
• Power Range
  • 78...102 W
• Width
  • external 223 mm

Offer Sustainability

• China Rohs Regulation
  • Product out of China RoHS scope. Substance declaration for your information.
• Circularity Profile
  • ENVEOLI1107017EN
• Environmental Disclosure
  • ENVPEP110717EN
• Eu Rohs Directive
  • Compliant
• Mercury Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Sustainable Offer Status
  • Green Premium product

Specifications

• Air Flow
  • free flow rate: 550 m3/h at 50 Hz || 550 m3/h at 60 Hz
• Input Voltage
  • 115 V AC 50/60 Hz
• Product Certifications
  • CE || UL UL 508 A || CSA CSA C22.2 || ecodesign directive 2009/125/EC
• Product Name
  • ClimaSys CV
• Product Or Component Type
  • fanbox without grille and filter
• Product Specific Application
  • outdoor heavy duty
• Range
  • ClimaSys
• Range Compatibility
  • Thalassa (PHD) || Spacial (S3HD) || Spacial (SFHD)
• [Us] Rated Supply Voltage
  • 115 V AC +/- 10 %
