Schneider Electric NSYCVF54M230MM2
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

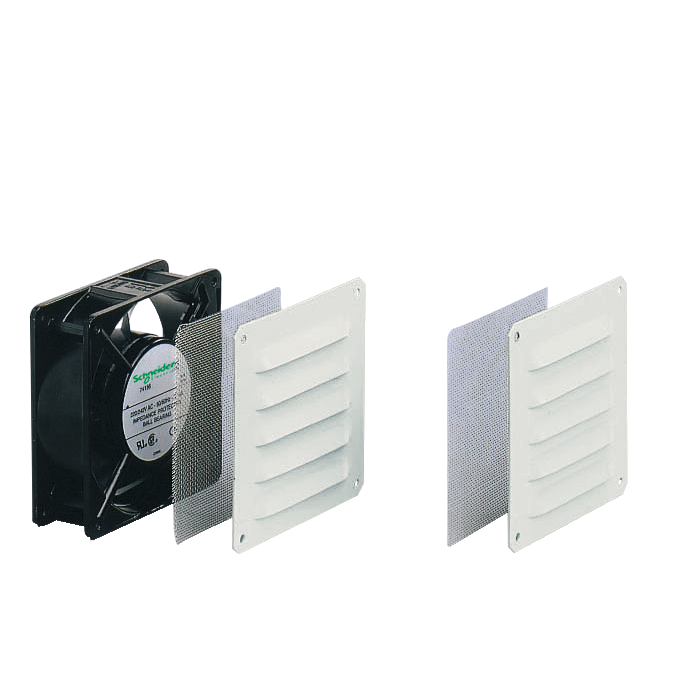

ClimaSys CV Axial motor ventilator with 2 metal outlet grilles and 2 anti-insect filters. 230V 50Hz or 60Hz. 22 W 50 Hz, 20 W 60 Hz. Free flow rate of 170 m3/h at 50 Hz and 208 m3/h at 60 Hz. 120 x 120 x 38 mm. Cut-out dimensions of 96 x 96 mm. Metal Outlet grilles, Steel made, epoxy-polyester powder finish, Grey RAL 7035, IP33 Protection, IK10 Power cable included. 2 protective grilles on the front and rear surfaces. Protection IP33.Climasys forced vent. 54 m3/h, 230V, 2 metal grilles and 2 anti-insect filters
Schneider Electric NSYCVF54M230MM2 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Color
- outlet grille Gray RAL 7035)
- Cut-Out Dimensions
- 96 x 96 mm
- Depth
- external 38 mm
- Device Composition
- 1 axial motor || 1 power cord || 2 anti-insect filter || 2 metal louvre
- Height
- external 120 mm
- Ip Degree Of Protection
- IP33
- Material
- outlet grille steel || filter stainless steel 304L
- Width
- external 120 mm
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI1107017EN
- Environmental Disclosure
- ENVPEP110717EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Air Flow
- free flow rate without filter or grille: 170 m3/h || overall flow rate: 54 m3/h at 50 Hz
- Input Voltage
- 230 V 50/60 Hz
- Product Name
- ClimaSys CV
- Product Or Component Type
- fan
- Range
- ClimaSys
- Type Of Ventilation Filter
- anti-insect
