Schneider Electric NSYCUX3K3P4UL
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

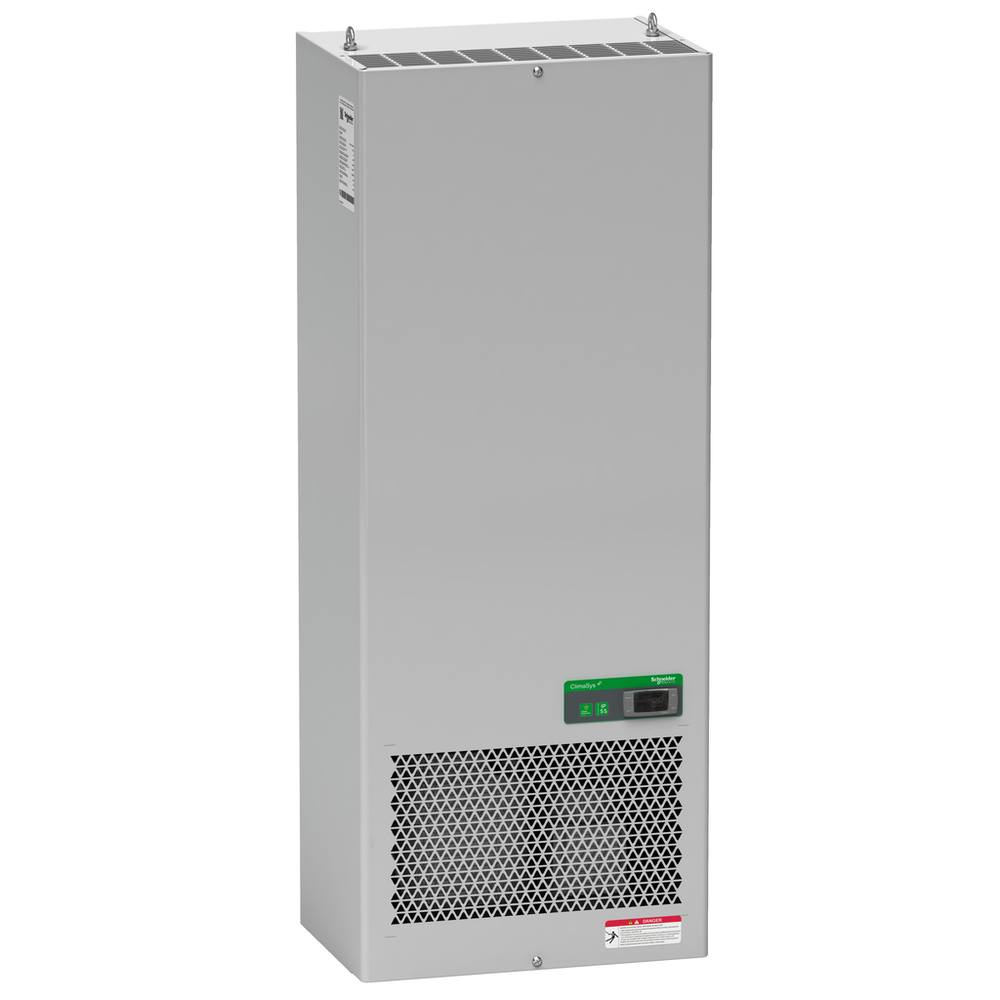

ClimaSys standard cooling unit side of enclosure - 2900W at 400 V
Schneider Electric NSYCUX3K3P4UL is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Air Flow
- internal circuit 1450 m3/h 60 Hz || external circuit 1450 m3/h 60 Hz
- Ambient Air Temperature For Operation
- outside the enclosure 20-45 °C || maximum 45-45 °C || inside the enclosure 20-45 °C
- Color
- Gray RAL 7035)
- Control Type
- electronic controller
- Cooling Gas Type
- R134a 0.84 kg)
- Depth
- 336 mm
- Energy Efficiency Ratio
- 2.4
- Height
- 1270 mm
- Inrush Current
- 14 A
- Line Rated Current
- 2.6 A
- Material
- stainless steel
- Net Weight
- 84 kg
- Noise Level
- 70 dB
- Power Consumption In W
- 1220 W 60 Hz, L35-L35 || 1440 W 60 Hz, L35-L50
- Pressure
- 25 bar
- Protection Type
- thermal protection T 6 A || short-circuit protection (magnetic)
- Temperature Setting Range
- 20-45 °C
- Type Of Ventilation Filter
- optional external circuit filter
- Width
- 500 mm
Environment
- Ip Degree Of Protection
- IP54 IEC 60529 on the internal circuit) || IP34 IEC 60529 on the external circuit)
- Product Certifications
- UL
- Standards
- DIN 3168
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Cooling Power
- 9900 Btu/h 60 Hz L35-L35 || 7680 Btu/h 60 Hz L35-L50
- Kw Rating
- 3300 W
- Mounting Location
- side
- Mounting Mode
- by screws
- Product Destination
- for enclosure
- Product Name
- CU
- Product Or Component Type
- cooling unit
- Range
- ClimaSys
