Description

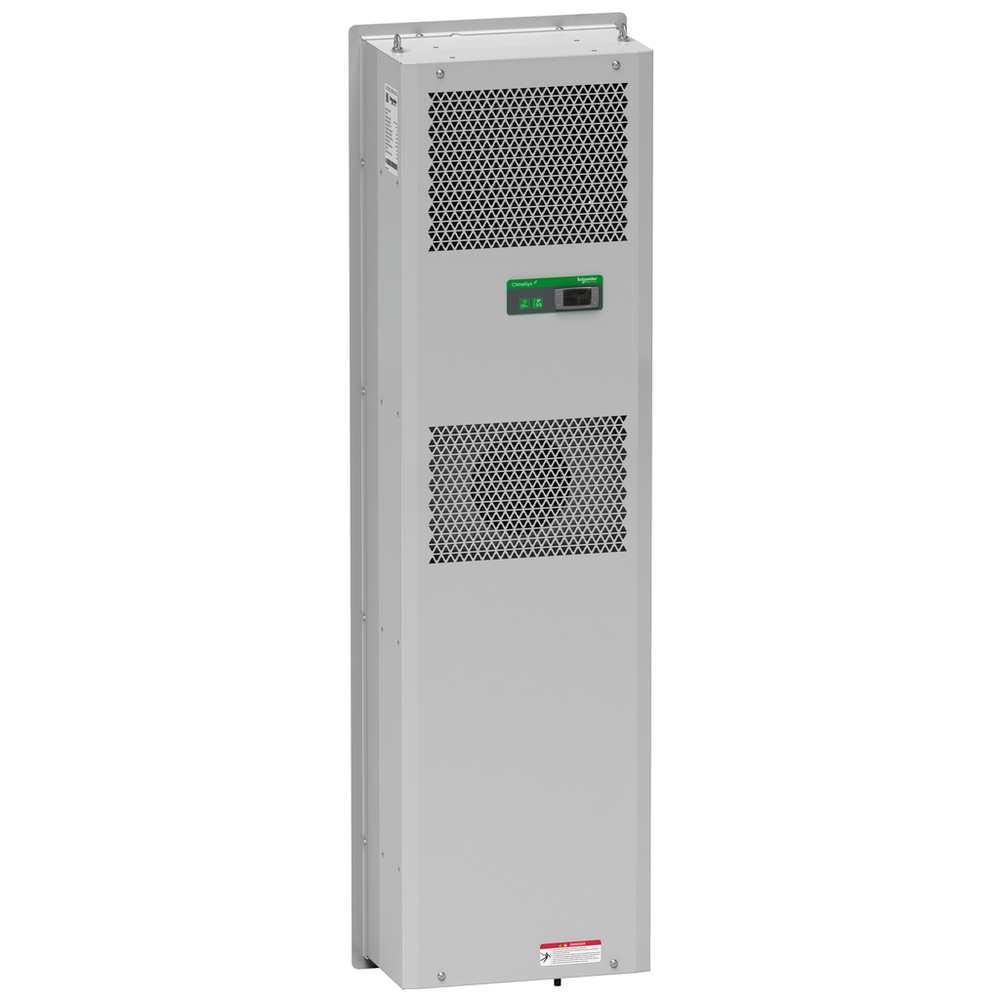

ClimaSys indoor slim cooling unit block stainless steel - 3200W at 230 V - UL
Schneider Electric NSYCUSX3K2UL is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Air Flow
- internal circuit 1450 m3/h 50/60 Hz || external circuit 1450 m3/h 50/60 Hz
- Ambient Air Temperature For Operation
- maximum 50-50 °C || inside the enclosure 20-46 °C || outside the enclosure 20-50 °C
- Color
- Gray RAL 7035)
- Control Type
- electronic controller
- Cooling Gas Type
- R134a 0.85 kg)
- Depth
- 235 mm
- Energy Efficiency Ratio
- 1.9
- Height
- 1696 mm
- Inrush Current
- 37 A
- Line Rated Current
- 10.5 A
- Material
- stainless steel
- Net Weight
- 78 kg
- Noise Level
- 69 dB EN/ISO 3746
- Power Consumption In W
- 1720 W 50/60 Hz, L35-L35 || 2000 W 50/60 Hz, L35-L50
- Pressure
- 28 bar
- Protection Type
- thermal protection T 16 A || short-circuit protection (magnetic)
- Temperature Setting Range
- 20-50 °C
- Type Of Ventilation Filter
- optional external circuit filter
- Width
- 495 mm
Environment
- Ip Degree Of Protection
- IP55 IEC 60529 on the internal circuit) || IP34 IEC 60529 on the external circuit)
- Product Certifications
- UL
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Cooling Power
- 10919 Btu/h 50/60 Hz L35-L35 || 8530 Btu/h 50/60 Hz L35-L50
- Kw Rating
- 1200 W
- Mounting Location
- door of enclosure
- Mounting Mode
- by screws
- Product Destination
- for enclosure
- Product Name
- CU
- Product Or Component Type
- slim cooling unit block
- Range
- ClimaSys
