Description

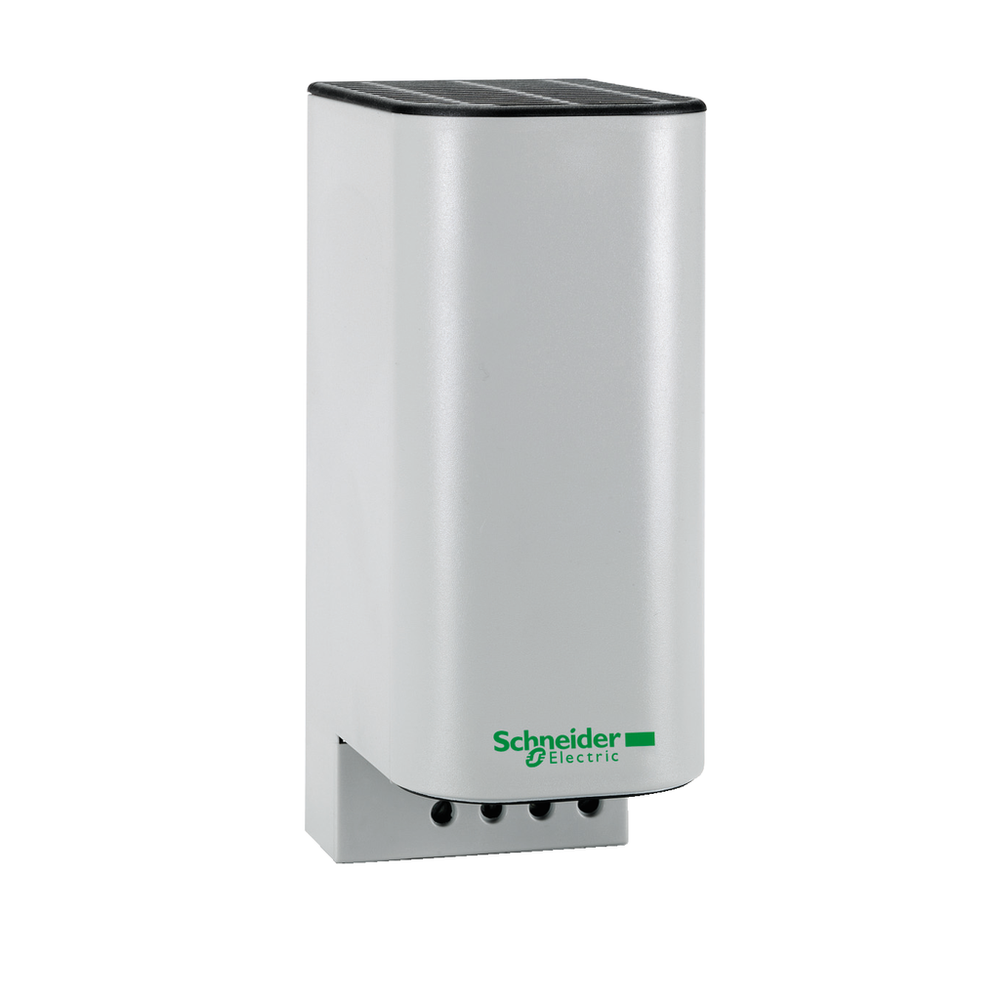

ClimaSys PTC heating resistance insulate. 150W, 110-250V AC, 50/60 Hz. (-40 to 70)°C temp for operation. Electrical connection is 4 screw terminals 2.5 mm². 35 mm DIN rail mounting support. Extruded aluminium body. IP20, Insulation Class II. Electrical protection needed, must be installed with a thermal controller.ClimaSys PTC heating resistance 150W,110-250V insulate
Schneider Electric NSYCR150WU2C is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Ambient Air Temperature For Operation
- -40-70 °C
- Condition Of Use
- electrical protection is needed || heaters must be installed with a thermal controller || air sealed enclosure
- Depth
- external 90 mm
- Electrical Insulation Class
- class II
- Fixing Mode
- by clips
- Height
- external 150 mm
- Ip Degree Of Protection
- IP20
- Material
- body extruded aluminium || Cover plastic
- Mounting Support
- 35 mm DIN rail
- Operating Position
- vertical
- Product Certifications
- VDE || UL
- Width
- external 60 mm
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP2103011EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Electrical Connection
- 4 screw terminals 2.5 mm²
- Input Voltage
- 110...250 V AC 50/60 Hz
- Power Range
- 150 W
- Product Name
- ClimaSys CR
- Product Or Component Type
- resistance heater
- Range
- ClimaSys
