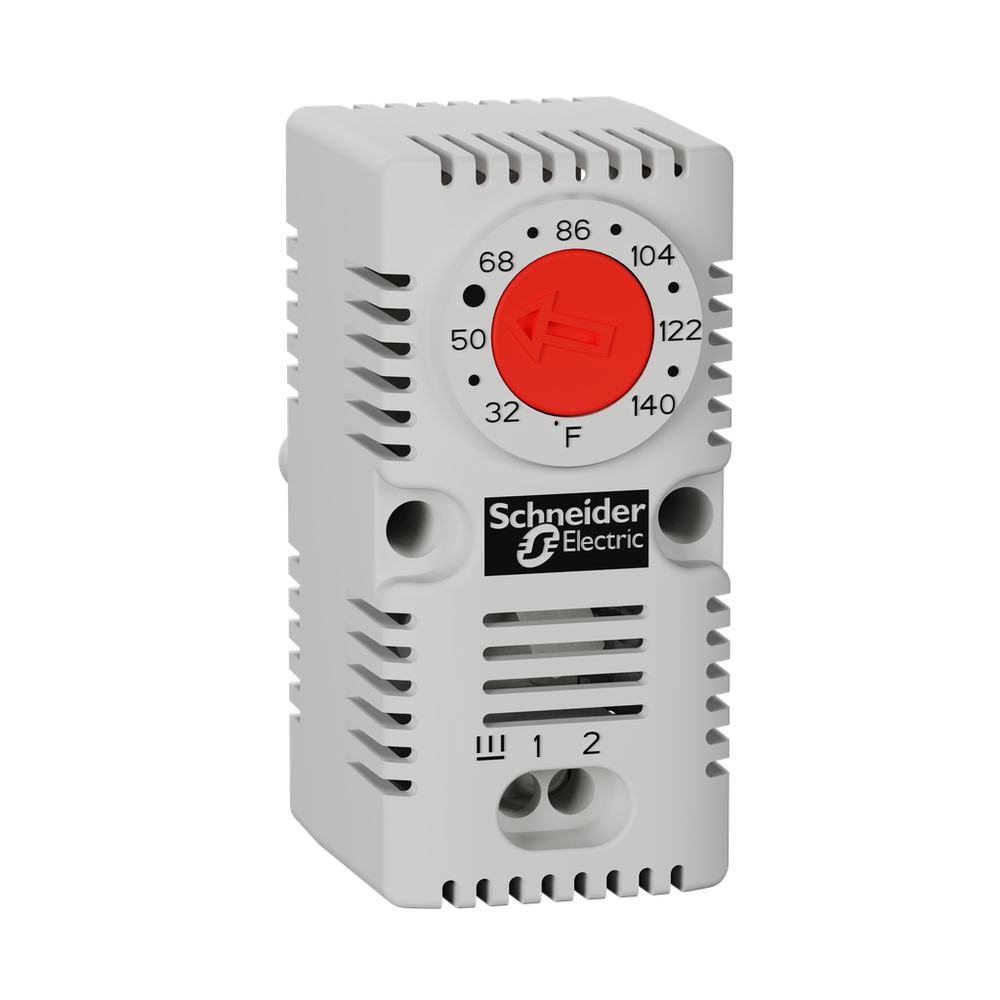

Schneider Electric NSYCCOTHCF
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Schneider Electric NSYCCOTHCF is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Ambient Air Temperature For Operation
- -20-80 °C
- Color
- Light gray
- Contact Resistance
- 10 mOhm
- Contacts Type And Composition
- NC
- Depth
- external 44 mm
- Electrical Connection
- 4 terminals 2.5 mm²
- Flame Retardance
- self-extinguishing conforming to UL94 (material V0)
- Height
- external 68 mm
- Hysteresis
- 7 %
- 7 K +/- 0.4K
- Input Voltage
- 250 V
- Ip Degree Of Protection
- IP20
- Material
- PC
- Maximum Switching Capacity
- 2 A 120...250 V AC inductive 0.6 || 10 A 250 V AC resistive || 15 A 120 V AC resistive || 30 W DC
- Mounting Location
- on mounting plate || 35 mm DIN rail || cross rails || Spacial upright
- Mounting Mode
- clipped
- Net Weight
- 40 g
- Number Of Outputs
- 1 heating function
- Product Certifications
- UL
- Sensor Type
- bimetal
- Service Life In Cycles
- 100000 cycles
- Width
- external 33 mm
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP2103012EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Information Displayed
- temperature in °F
- Product Name
- ClimaSys CC
- Product Or Component Type
- simple thermostat
- Range
- ClimaSys
- Temperature Setting Range
- 0-60 °C
