Schneider Electric METSEPM5560
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

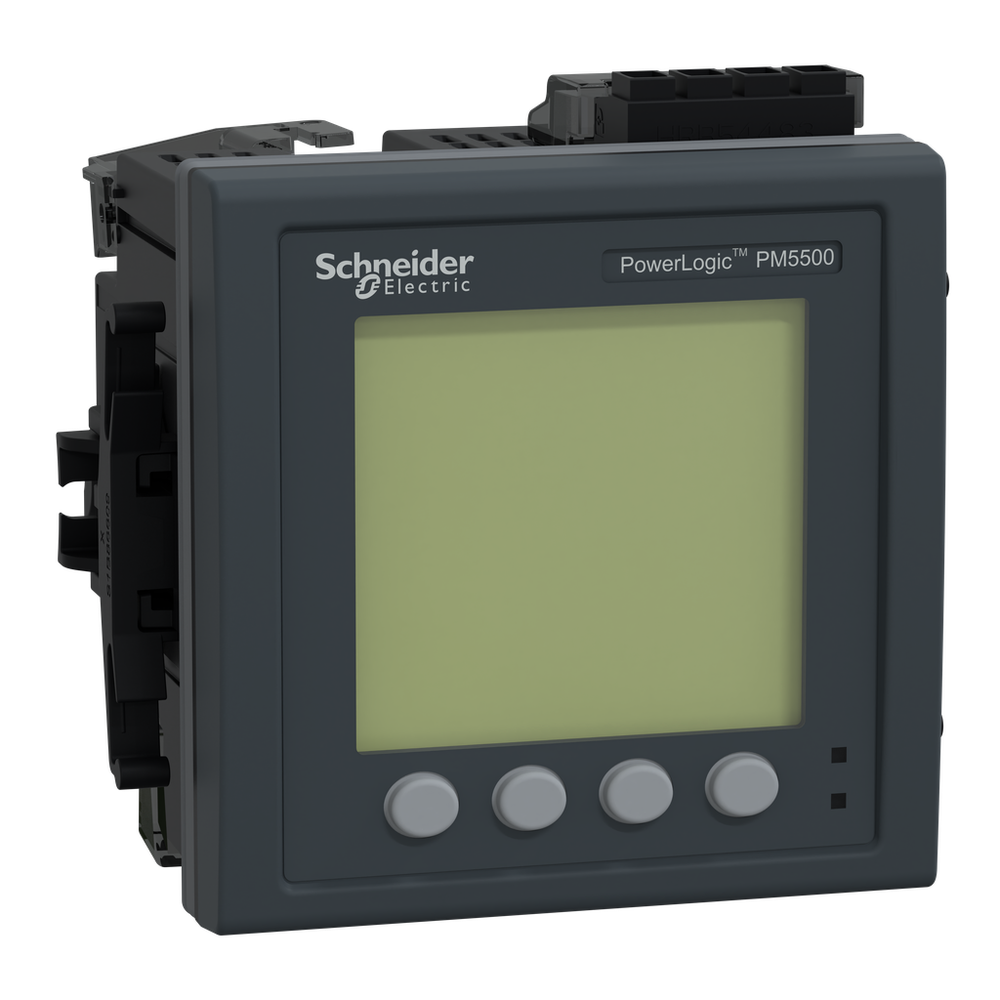

This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display. The meter provides Class 0.2S accuracy per IEC 62053-22 standard and 128 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to the 63rd Harmonic. Include 1.1 MegaBytes of memory for up to 14 selectable parameters with configurable interval and duration. This meter also feature the direct monitoring of neutral current. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 480 VAC and 125 to 250 VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. The range of measurement voltage between Phases is 20 to 690 VAC at 45 to 65 Hz. Measurement range between Phase and Neutral is 20 to 400VAC at 45 to 65 Hz. Communication protocol are Modbus RTU and ASCII 2 wires with RS485 port support plus Modbus TCP/IP, Ethernet/IP and BACnet/IP based on 10/100 Mbit/s, daisy chain Ethernet with RJ45 port support. The embedded communication capabilities allow the support of the DNP 3.0 protocol, the access to an onboard web server and a Serial to Ethernet gateway. The meter also has four digital inputs with WAGES support and two digital outputs. There are 52 configurable alarms and it supports eight tariff schedules. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 3.03 inches (77 millimetres), height 3.78 inches (96 millimetres) and product weight 15.9 onces (450 g).power meter PowerLogic PM5560, 2 ethernet, up to 63th Harmonic, 1,1MB 4DI/2DO 52 alarms
Schneider Electric METSEPM5560 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Accuracy Class
- class 0.2S active energy IEC 62053-22
- Analogue Input Type
- voltage (impedance 5 MOhm) || current (impedance <= 0.3 mOhm)
- Communication Gateway
- Ethernet/serial
- Communication Port Protocol
- Modbus RTU and ASCII 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires 2500 V || JBUS || Modbus TCP/IP 10/100 Mbit/s 2500 V || Ethernet Modbus TCP/IP daisy chain || BACnet IP || DNP3 over ethernet
- Communication Port Support
- RS485 || ETHERNET
- Connections - Terminals
- voltage circuit screw terminal block4 || control circuit screw terminal block2 || current transformer screw terminal block6 || RS485 link screw terminal block4 || digital input screw terminal block8 || digital output screw terminal block4 || Ethernet network RJ45 connector2
- Data Recording
- event logs || maintenance logs || min/max of instantaneous values || data logs || alarm logs || time stamping
- Depth
- 72 mm
- Device Application
- gateway || WAGES metering || power monitoring || multi-tariff
- Display Resolution
- 128 x 128 pixels
- Display Type
- Backlit LCD
- Ethernet Service
- SNTP client || SNMP-Traps
- Frequency Measurement Range
- 45-65 Hz
- Height
- 96 mm
- Information Displayed
- tariff 8)
- Line Rated Current
- 1 A || 5 A
- Maximum Power Consumption In Va
- 16 VA 480 V
- Measurement Accuracy
- apparent power +/- 0.5 % || frequency +/- 0.05 % || active energy +/- 0.2 % || reactive energy +/- 1 % || active power +/- 0.2 % || voltage +/- 0.1 % || power factor +/- 0.005 || current +/- 0.15 % || reactive power +/- 1 %
- Measurement Current
- 50-10000 mA
- Measurement Voltage
- 20-400 V AC 45...65 Hz between phase and neutral || 20-828 V AC 45...65 Hz between phases
- Memory Capacity
- 1.1 MB
- Metering Type
- measured neutral current || calculated ground current
- Mounting Mode
- flush-mounted
- Mounting Support
- framework
- Net Weight
- 450 g
- Network Frequency
- 60 Hz || 50 Hz
- Number Of Inputs
- 4 digital
- Number Of Outputs
- 2 digital
- Poles Description
- 3P + N || 3P || 1P + N
- Power Quality Analysis
- up to the 63rd harmonic
- Product Certifications
- CE IEC 61010-1 || cULus UL 61010-1 || BTL
- Ride-Through Time
- 35 ms 120 V AC typical || 129 ms 230 V AC typical || 50 ms 125 V DC typical
- Sampling Rate
- 128 samples/cycle
- Standards
- EN 50470-3 || IEC 61557-12 || IEC 62053-22 || IEC 62053-24 || IEC 60529 || EN 50470-1 || UL 61010-1 || ANSI C12.20
- Type Of Measurement
- current || voltage || frequency || power factor || energy || active and reactive power
- [Us] Rated Supply Voltage
- 100...300 V DC || 90...528 V AC 45...65 Hz
- Web Services
- alarm notification by e-mail || diagnostic via predefined web pages || web server || real time viewing of data
- Width
- 96 mm
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Electromagnetic Compatibility
- limits for harmonic current emissions class A conforming to IEC 61000-3-2 || conducted RF disturbances level 3 conforming to IEC 61000-4-6 || magnetic field at power frequency level 4 conforming to IEC 61000-4-8 || conducted and radiated emissions class B conforming to EN 55022 || limitation of voltage changes, voltage fluctuations and flicker in low-voltage conforming to IEC 61000-3-3 || electrostatic discharge - test level: 8 kV level 4 conforming to IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 || surge immunity test level 4 conforming to IEC 61000-4-5 || voltage dips and interruptions immunity test conforming to IEC 61000-4-11
- Ip Degree Of Protection
- display IP54 IEC 60529 || rear IP30 IEC 60529
- Operating Altitude
- <= 9842.52 ft (3000 m)
- Pollution Degree
- 2
- Relative Humidity
- 5-95 % 50-50 °C non-condensing
Offer Sustainability
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1310016EN
- Environmental Disclosure
- ENVPEP1310016EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- PM5560
- Product Name
- PowerLogic PM5000
- Product Or Component Type
- power meter
- Range
- PowerLogic
