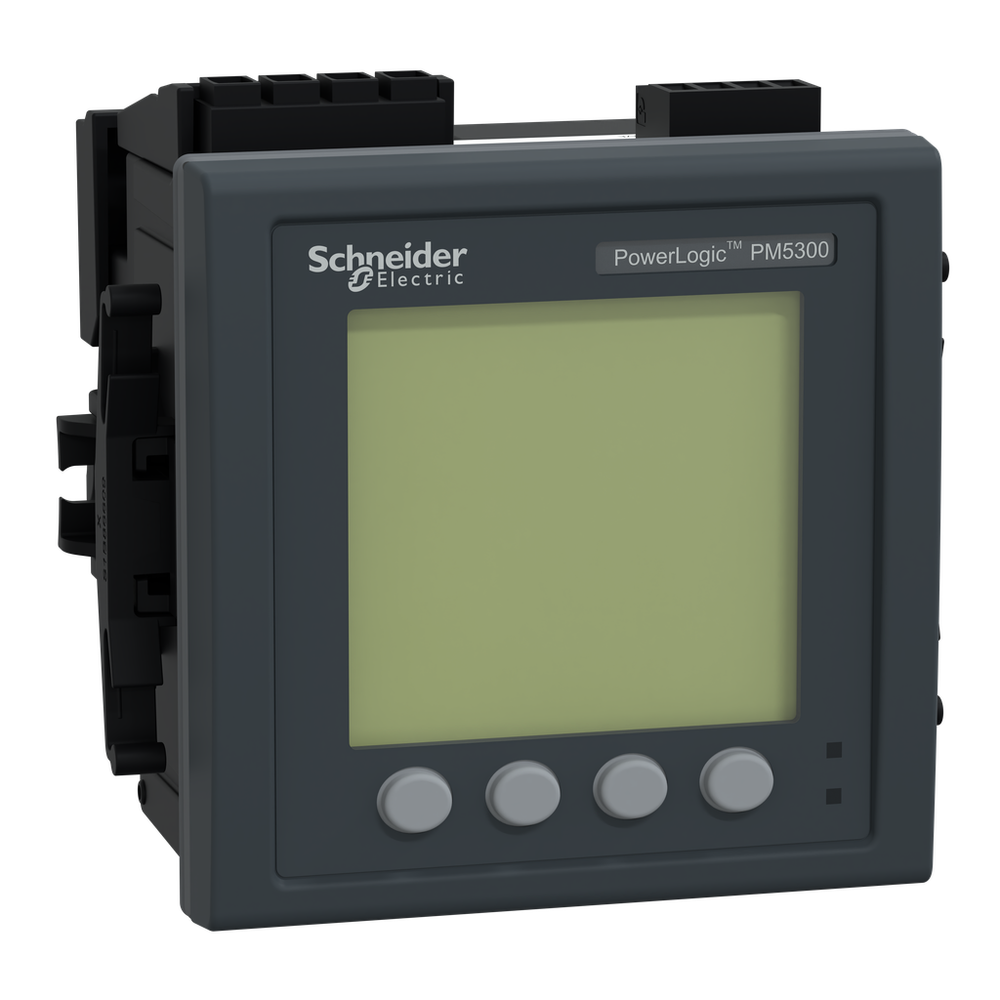

Schneider Electric METSEPM5340
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 64 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to the 31st Harmonic. Include 256 kiloBytes of memory for two fixed parameters, active and reactive energy. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 415 VAC and 125 to 250 VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. The range of measurement voltage between Phases is 35 to 690 VAC at 47 to 63 Hz. Measurement range between Phase and Neutral is 20 to 400VAC at 47 to 63 Hz. Communication protocol are Modbus TCP/IP and BACnet/IP based on 10/100 Mbit/s, Ethernet with RJ45 port support. The meter also has two digital inputs or digital outputs, configurable, and dual relay outputs. There are 35 configurable alarms and it supports four tariff schedules. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 2.83 inches (72 millimetres), height 3.78 inches (96 millimetres) and product weight 15.2 onces (430 g).power meter PowerLogic PM5340, ethernet, up to 31st Harmonic, 256KB 2DI/2DO 35 alarms
Schneider Electric METSEPM5340 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Accuracy Class
- class 0.5S active energy IEC 62053-22
- Analogue Input Type
- voltage (impedance 10 MOhm) || current (impedance <= 0.3 mOhm)
- Communication Port Protocol
- Modbus TCP/IP 10/100 Mbit/s 2500 V || BACnet IP
- Communication Port Support
- ETHERNET
- Connections - Terminals
- voltage circuit screw terminal block4 || control circuit screw terminal block2 || current transformer screw terminal block6 || input/output circuit screw terminal block6 || relay output screw terminal block4 || Ethernet network RJ45 connector
- Data Recording
- data logs || alarm logs || time stamping || event logs || min/max of instantaneous values || maintenance logs
- Depth
- 72 mm
- Device Application
- multi-tariff || power monitoring
- Display Resolution
- 128 x 128 pixels
- Display Type
- monochrome graphic LCD
- Frequency Measurement Range
- 45-65 Hz
- Height
- 96 mm
- Information Displayed
- tariff 4)
- Line Rated Current
- 5 A || 1 A
- Maximum Power Consumption In Va
- 11 VA 415 V
- Measurement Accuracy
- active energy +/- 0.5 % || reactive energy +/- 2 % || active power +/- 0.5 % || apparent power +/- 0.5 % || frequency +/- 0.05 % || power factor +/- 0.5 || current +/- 0.5 % || voltage +/- 0.5 % || apparent energy +/- 0.5 % || reactive power +/- 2 %
- Measurement Current
- 5-9000 mA
- Measurement Voltage
- 35-760 V AC 45...65 Hz between phases || 20-400 V AC 45...65 Hz between phase and neutral
- Memory Capacity
- 256 kB
- Mounting Mode
- flush-mounted
- Mounting Support
- framework
- Net Weight
- 430 g
- Network Frequency
- 60 Hz || 50 Hz
- Number Of Inputs
- 2 digital
- Number Of Outputs
- 2 relay || 2 digital
- Poles Description
- 3P || 1P + N || 3P + N
- Power Quality Analysis
- up to the 31st harmonic
- Product Certifications
- CE IEC 61010-1 || cULus UL 61010-1
- Ride-Through Time
- 100 ms 120 V AC typical || 400 ms 230 V AC typical || 50 ms 125 V DC typical
- Sampling Rate
- 64 samples/cycle
- Standards
- EN 50470-1 || IEC 62053-24 || IEC 60529 || UL 61010-1 || IEC 62053-22 || EN 50470-3 || IEC 61557-12
- Type Of Measurement
- current || voltage || frequency || power factor || energy || active and reactive power
- [Us] Rated Supply Voltage
- 90...450 V AC 45...65 Hz || 100...300 V DC
- Width
- 96 mm
Environment
- Ambient Air Temperature For Operation
- -25-70 °C meter || -20-70 °C display || -25--20 °C with reduced performance) display
- Ambient Air Temperature For Storage
- -40-85 °C
- Electromagnetic Compatibility
- limits for harmonic current emissions class A conforming to IEC 61000-3-2 || electrostatic discharge level 4 conforming to IEC 61000-4-2 || conducted RF disturbances level 3 conforming to IEC 61000-4-6 || magnetic field at power frequency level 4 conforming to IEC 61000-4-8 || conducted and radiated emissions class B conforming to EN 55022
- Ip Degree Of Protection
- display IP51 IEC 60529 || rear IP30 IEC 60529
- Operating Altitude
- <= 9842.52 ft (3000 m)
- Pollution Degree
- 2
- Relative Humidity
- 5-95 % 50-50 °C non-condensing
Offer Sustainability
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1305025
- Environmental Disclosure
- ENVPEP1305025
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- PM5340
- Product Name
- PowerLogic PM5000
- Product Or Component Type
- power meter
- Range
- PowerLogic
