Description

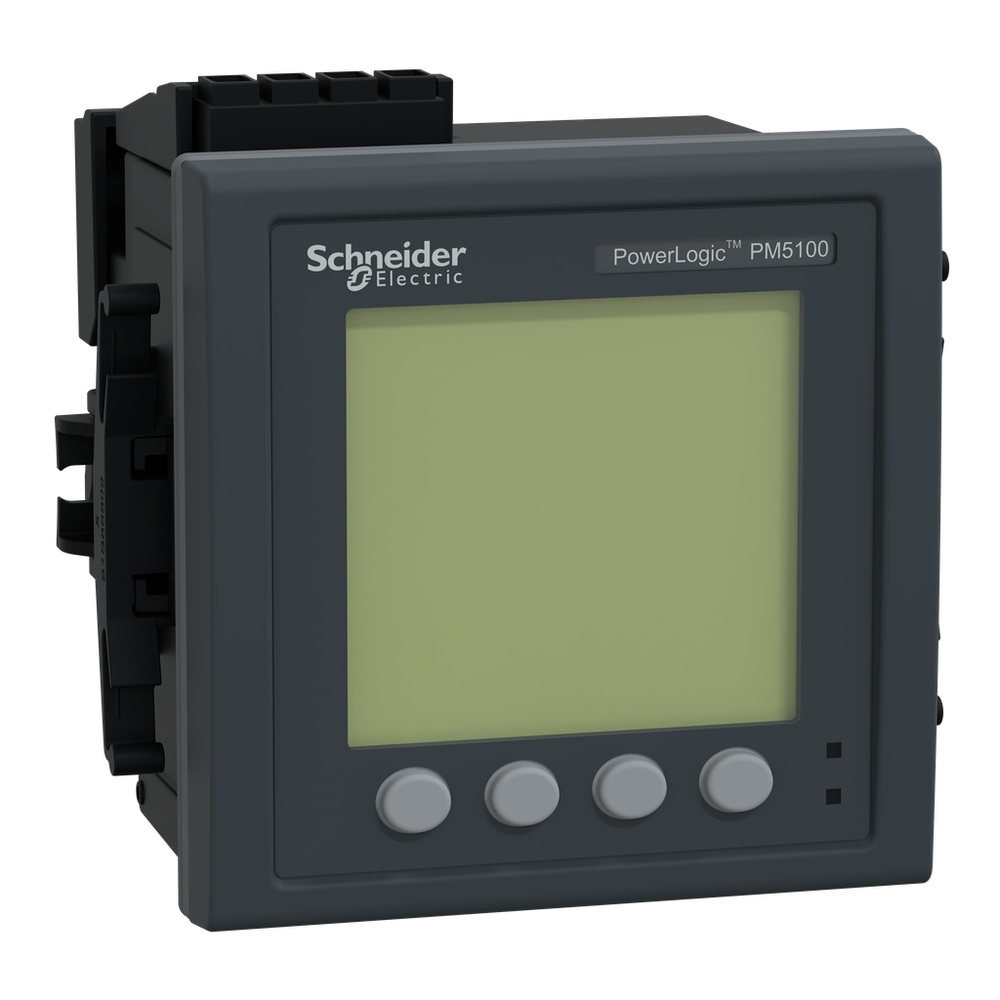

This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 64 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to 15th Harmonic. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 415 VAC and 125 to 250 VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. The range of measurement voltage between Phases is 35 to 690 VAC at 47 to 63 Hz. Measurement range between Phase and Neutral is 20 to 400VAC at 47 to 63 Hz. Communication protocol is Modbus RTU and ASCII 2 wires with RS485 port support. The meter also has one digital pulse output and 33 configurable alarms. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 2.83 inches (72 millimetres), height 3.78 inches (96 millimetres) and product weight 13.4 onces (380 g).power meter PowerLogic PM5110, modbus, up to 15th Harmonic, 1DO 33 alarms
Schneider Electric METSEPM5110 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Accuracy Class
- class 0.5S active energy IEC 62053-22
- Analogue Input Type
- voltage (impedance 5 MOhm) || current (impedance <= 0.3 mOhm)
- Communication Port Protocol
- Modbus RTU and ASCII 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires 2500 V || JBUS
- Communication Port Support
- RS485
- Connections - Terminals
- voltage circuit screw terminal block4 || control circuit screw terminal block2 || current transformer screw terminal block6 || input/output circuit screw terminal block6 || RS485 link screw terminal block4
- Data Recording
- time stamping || min/max of instantaneous values
- Depth
- 72 mm
- Device Application
- power monitoring
- Display Resolution
- 128 x 128 pixels
- Display Type
- monochrome graphic LCD
- Frequency Measurement Range
- 45-65 Hz
- Height
- 96 mm
- Line Rated Current
- 1 A || 5 A
- Maximum Power Consumption In Va
- 11 VA 415 V
- Measurement Accuracy
- active energy +/- 0.5 % || reactive energy +/- 2 % || active power +/- 0.5 % || apparent power +/- 0.5 % || frequency +/- 0.05 % || power factor +/- 0.5 || current +/- 0.5 % || voltage +/- 0.5 % || apparent energy +/- 0.5 % || reactive power +/- 2 %
- Measurement Current
- 50-8500 mA
- Measurement Voltage
- 35-760 V AC 45...65 Hz between phases || 20-440 V AC 45...65 Hz between phase and neutral
- Mounting Mode
- flush-mounted
- Mounting Support
- framework
- Net Weight
- 380 g
- Network Frequency
- 50 Hz || 60 Hz
- Number Of Inputs
- 0
- Number Of Outputs
- 1 digital
- Poles Description
- 1P + N || 3P + N || 3P
- Power Quality Analysis
- up to the 15th harmonic
- Product Certifications
- CE IEC 61010-1 || cULus UL 61010-1
- Ride-Through Time
- 80 ms 120 V AC typical || 100 ms 230 V AC typical || 100 ms 415 V AC typical || 50 ms 125 V DC typical
- Sampling Rate
- 64 samples/cycle
- Standards
- UL 61010-1 || EN 50470-3 || EN 50470-1 || IEC 62053-22 || IEC 60529 || IEC 62053-24 || IEC 61557-12
- Type Of Measurement
- current || voltage || frequency || power factor || energy || active and reactive power
- [Us] Rated Supply Voltage
- 90...450 V AC 45...65 Hz || 100...300 V DC
- Width
- 96 mm
Environment
- Ambient Air Temperature For Operation
- -25-70 °C meter || -20-70 °C display || -25--20 °C with reduced performance) display
- Ambient Air Temperature For Storage
- -40-85 °C
- Electromagnetic Compatibility
- voltage dips and interruptions immunity test class A conforming to IEC 61000-4-11 || limits for harmonic current emissions class A conforming to IEC 61000-3-2 || electrostatic discharge level 4 conforming to IEC 61000-4-2 || conducted RF disturbances level 3 conforming to IEC 61000-4-6 || magnetic field at power frequency level 4 conforming to IEC 61000-4-8 || immunity to conducted disturbances - test level: 150 kHz...80 MHz conforming to IEC 61000-4-6 || electrical fast transient/burst immunity test conforming to IEC 61000-4-4 || radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3 || voltage dips and interruptions immunity test conforming to IEC 61000-4-11 || conducted and radiated emissions class B conforming to EN 55022 || surge immunity test conforming to IEC 61000-4-5
- Ip Degree Of Protection
- display IP54 IEC 60529 || rear IP30 IEC 60529
- Operating Altitude
- 6561.68 ft (2000 m) CAT III
- Pollution Degree
- 2
- Relative Humidity
- 5-95 % 50-50 °C non-condensing
Offer Sustainability
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1305025
- Environmental Disclosure
- ENVPEP1305025
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- PM5110
- Product Name
- PowerLogic PM5000
- Product Or Component Type
- power meter
- Range
- PowerLogic
