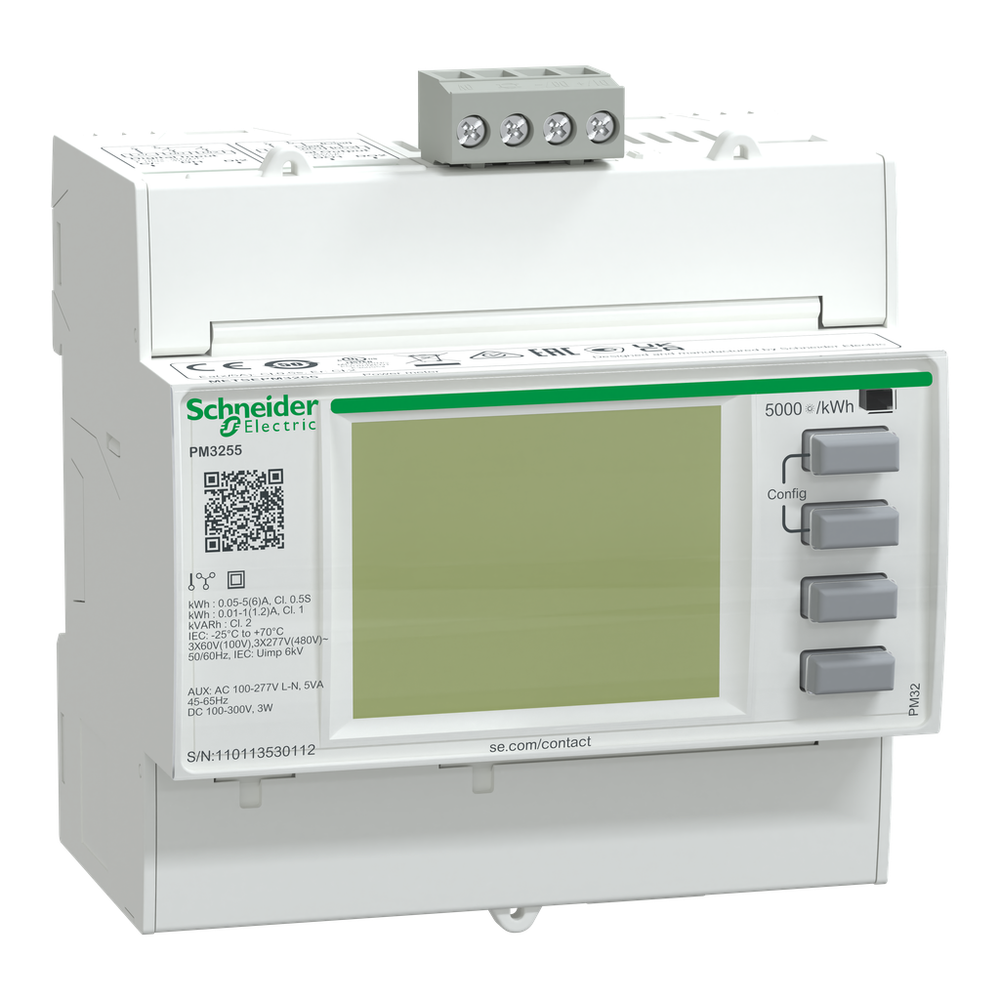

Schneider Electric METSEPM3255
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
PM3255 DIN mount energy meter with a 128 by 96 pixel backlit, LCD display. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 32 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor, Apparent Power, Total Harmonic Distortion and up to 15th Harmonic. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 277VAC, 173 to 480VAC and 100 to 300VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase, Single Phase and Neutral or Three Phase configurations. Direct measurement range is 50 to 570VAC, with an external VT 570 to 999000VAC. The range of measurement voltage between Phases is 80 to 570VAC at 45 to 65 Hz. Measurement range between Phase and Neutral is 50 to 330VAC at 45 to 65 Hz. Communication protocol is Modbus RTU and ASCII 2 wires with RS485 port support. Support for two digital input and two digital outputs. The meter offers 512kB of memory for event recording with up to 15 alarms with power and energy consumption logs. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.76in (70 mm), height 3.74 in (95 mm) and product weight 9.17 oz (260 g).PM3255 power meter - 2 digital I - 2 digital O - RS485
Schneider Electric METSEPM3255 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Accuracy Class
- class 0.5S active energy IEC 62053-22 || class 1 active energy IEC 62053-21 || class 2 reactive energy IEC 62053-23 || class C active energy EN 50470-3
- Analogue Input Type
- current 0...5 A || current 0...1 A
- Communication Port Protocol
- Modbus 9.6...38.4 kbauds
- Communication Port Support
- RS485
- Data Recording
- energy consumption logs || 15 alarms || power logs || time stamping || min/max of instantaneous values
- Depth
- 70 mm
- Device Application
- multi-tariff || power monitoring || sub billing
- Display Resolution
- 128 x 96 pixels
- Display Type
- Backlit LCD
- Frequency Measurement Range
- 45-65 Hz
- Height
- 95 mm
- Information Displayed
- tariff 4)
- Line Rated Current
- 5 A || 1 A
- Measurement Accuracy
- current 0.3 % 0.5...6 A || current 0.5 % 0.1...1.2 A || voltage 0.3 % 50...330 V || voltage 0.3 % 80...570 V
- Measurement Current
- 0.02-1.2 A || 0.05-6 A
- Measurement Voltage
- 50-330 V AC 45...65 Hz direct || 50-330 V AC 45...65 Hz phase to neutral || 80-570 V AC 45...65 Hz direct || 80-570 V AC 45...65 Hz phase to phase || 570-999000 V AC 45...65 Hz with external VT
- Memory Capacity
- 512 KB
- Mounting Mode
- clip-on
- Mounting Support
- DIN rail
- Net Weight
- 0.26 kg
- Network Frequency
- 60 Hz || 50 Hz
- Number Of Inputs
- 2 digital 0...4 mA 11...40 V DC
- Number Of Outputs
- 2 digital (static)
- Poles Description
- 3P || 3P + N || 1P + N
- Power Consumption In Va
- 5 VA
- Power Quality Analysis
- up to the 15th harmonic
- Product Certifications
- CE IEC 61010-1 safety) || CE EN 61557-12 power monitor) || CE EN/IEC 61326-1 EMC) || UKCA BS EN 61010-1 safety) || UKCA BS EN 61557-12 power monitor) || UKCA BS EN 61326-1 EMC) || cULus EN 61010-1 safety) || cULus UL 61010-1 safety) || EAC sub-meter) || RCM
- Sampling Rate
- 32 samples/cycle
- Standards
- BS EN 61557-12 || IEC 61557-12 || EN 61557-12 || BS EN 61326-1 || IEC 61326-1 || EN 61326-1 || BS EN 62052-11 || IEC 62052-11 || EN 62052-11 || BS EN 62053-21 || IEC 62053-21 || EN 62053-21 || BS EN 62053-22 || IEC 62053-22 || EN 62052-22 || BS EN 62053-23 || IEC 62053-23 || EN 62052-23 || BS EN 61010-1 || EN 61010-1 || IEC 61010-1 || UL 61010-1 || BS EN 61010-2-30 || IEC 61010-2-30 || EN 61010-2-30 || UL 61010-2-30 || ANSI C12.20
- Type Of Measurement
- active and reactive power || apparent power || current || voltage || energy || power factor || frequency || total current harmonic distortion THD (I) || total voltage harmonic distortion THD (U)
- [Us] Rated Supply Voltage
- 100...277 V AC 45...65 Hz || 173...480 V AC 45...65 Hz || 100...300 V DC
- Width
- 90 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Electromagnetic Compatibility
- electrostatic discharge level 4 conforming to IEC 61000-4-2 || susceptibility to electromagnetic fields level 3 conforming to IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 || surge immunity test level 4 conforming to IEC 61000-4-5 || conducted RF disturbances level 3 conforming to IEC 61000-4-6 || magnetic field at power frequency - test level: 0.5 mT conforming to IEC 61000-4-8 || conducted and radiated emissions class B conforming to EN 55022
- Ip Degree Of Protection
- front panel IP40 IEC 60529 || body IP20 IEC 60529
- Operating Altitude
- < 9842.52 ft (3000 m)
- Overvoltage Category
- III
- Pollution Degree
- 2
- Relative Humidity
- 5-95 % 50-50 °C
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI111258EN
- Environmental Disclosure
- ENVPEP111275EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- PM3255
- Product Name
- PowerLogic PM3000
- Product Or Component Type
- power meter
- Range
- PowerLogic
