Schneider Electric METSEPM2KDGTLIO22
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

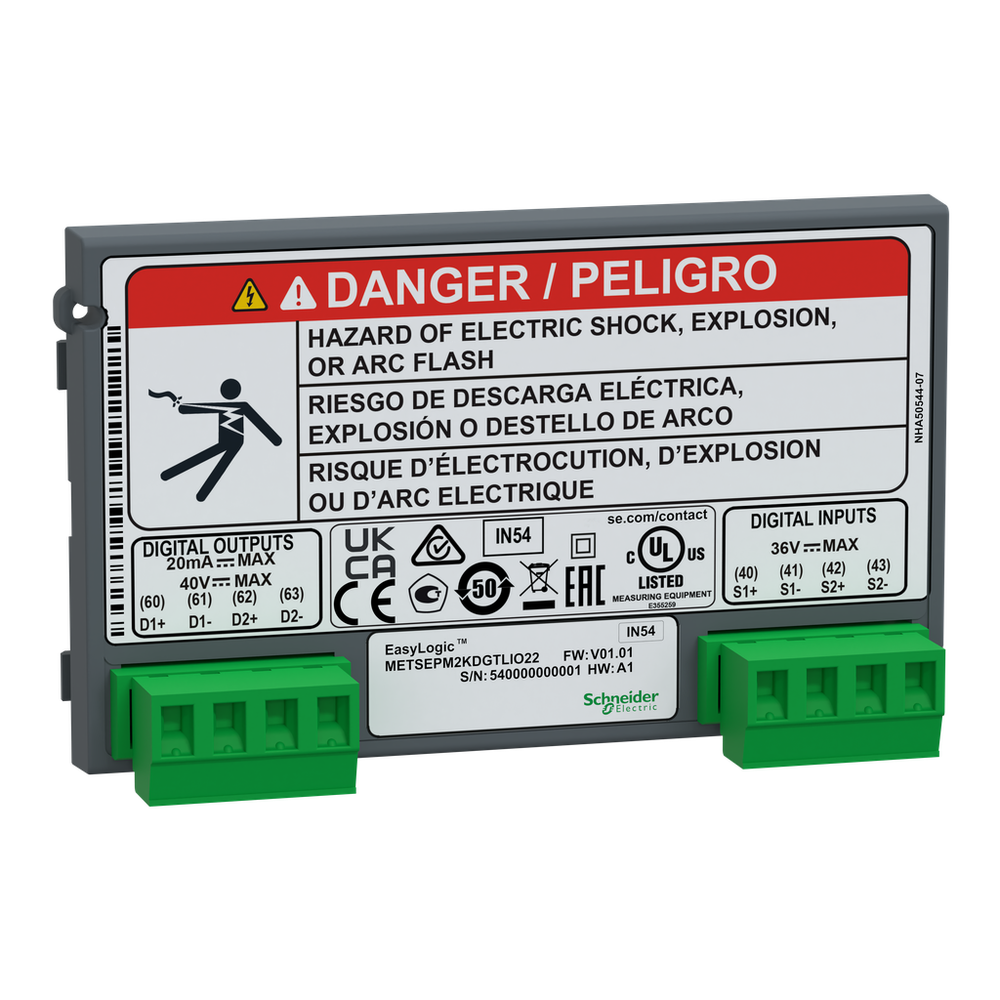

Optional Input Output module compatible with EasyLogic PM2130, PM2230 devices that provides additional digital inputs and configurable outputs. This digital module provides 2 digital status inputs that support 30VDC. Plus 2 configurable pulse outputs to provide energy or parameters values. The pulse support loads up to 20mA at 40VDC. The option modules are attached to the back of the meter providing connection for control power and interfacing bus. The EasyLogic PM2130 and PM2230 devices allow a maximum of 1 input/output option modules per meter.EasyLogic PM2X30 - I/O Module - Digital - 2 Inputs + 2 outputs
Schneider Electric METSEPM2KDGTLIO22 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Depth
- 14.6 mm
- Height
- 53 mm
- Input Impedance
- 110 kOhm
- Net Weight
- 50 g
- Number Of Inputs
- 2
- Number Of Outputs
- 2 configurable, <= 20 mA
- Output Impedance
- 50 Ohm
- Output Voltage
- 40 V DC
- Switching Frequency
- 2 Hz digital input
- [Ui] Rated Insulation Voltage
- 2500 V
- Voltage State 0 Guaranteed
- 0...4 V DC
- Voltage State 1 Guaranteed
- 18.5...36 V DC
- Width
- 90.5 mm
Environment
- Ambient Air Temperature For Operation
- -10-60 °C
- Ambient Air Temperature For Storage
- -25-70 °C
Offer Sustainability
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1510005
- Environmental Disclosure
- ENVPEP1510005
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Application
- optional expansion module
- Device Short Name
- PM2K2DIDO
- Product Or Component Type
- I/O module
- Range
- EasyLogic
- Range Compatibility
- EasyLogic (EasyLogic PM2100) PM2130 || EasyLogic (EasyLogic PM2200) PM2230
