Schneider Electric METSEPM2KANLGIO22
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

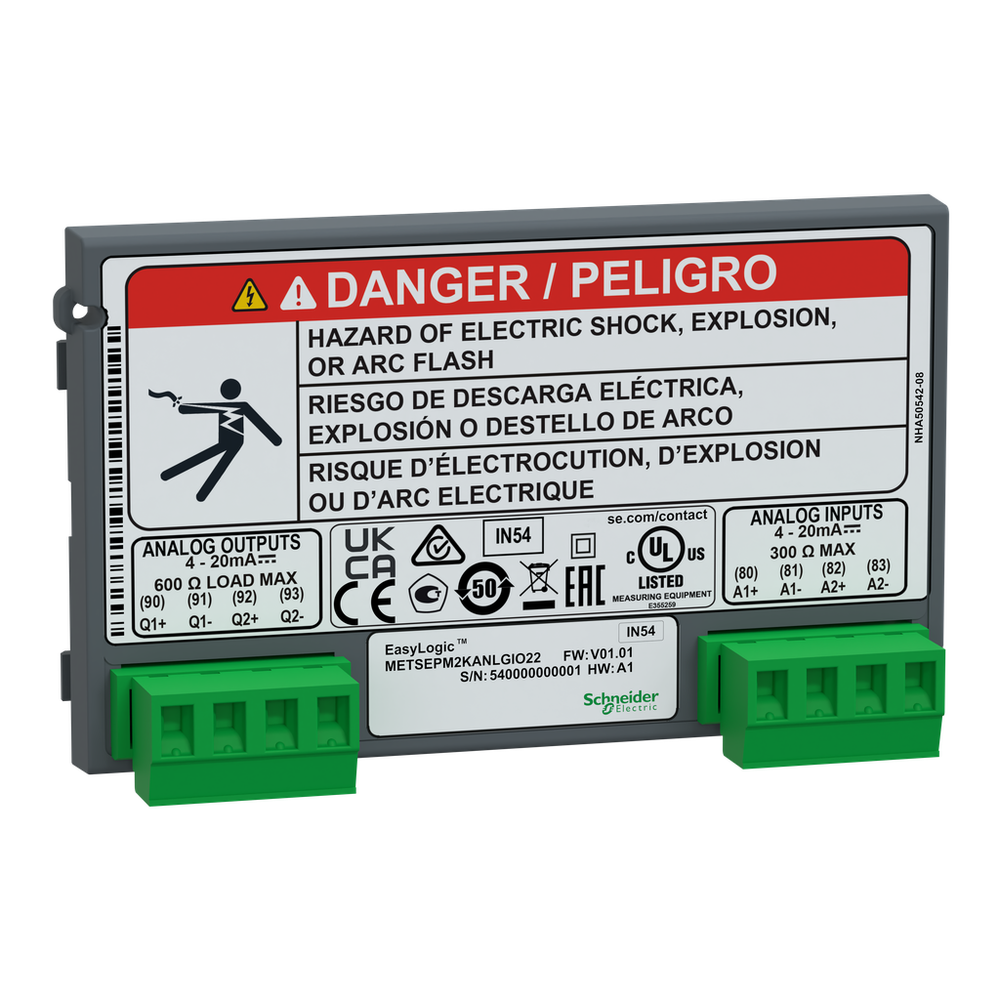

Optional Input Output module compatible with EasyLogic PM2130, PM2230 devices that provides additional analog inputs outputs. This analog module provides 2 analog inputs that support 4 to 20mA. Plus 2 analog outputs that can be assiciated to one out of 40 instantaneous parameters. The analog outputs support 4 to 20mA. Analog inputs and outputs are setted-up and configured through ION set-up software utility tool. The option modules are attached to the back of the meter providing connection for control power and interfacing bus. The EasyLogic PM2130 and PM2230 devices allow a maximum of 1 input/output option modules per meter.EasyLogic PM2X30 - I/O Module - Analogue - 2 inputs + 2 outputs
Schneider Electric METSEPM2KANLGIO22 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Analogue Input Type
- analog input (impedance <= 300 Ohm)
- Analogue Output Type
- analog output 600 Ohm
- Depth
- 14.6 mm
- Height
- 53 mm
- Input Voltage
- 12...30 V AC
- Net Weight
- 50 g
- Number Of Inputs
- 2 analog 4...20 mA
- Number Of Outputs
- 2 analog, 4...20 mA
- Output Voltage
- 12 V AC
- [Ui] Rated Insulation Voltage
- 2500 V
- Width
- 90.5 mm
Environment
- Ambient Air Temperature For Operation
- -10-60 °C
- Ambient Air Temperature For Storage
- -25-70 °C
Offer Sustainability
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1510005
- Environmental Disclosure
- ENVPEP1510005
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Application
- optional expansion module
- Device Short Name
- PM2K2AIAO
- Product Or Component Type
- I/O module
- Range
- EasyLogic
- Range Compatibility
- EasyLogic (EasyLogic PM2100) PM2130 || EasyLogic (EasyLogic PM2200) PM2230
