Schneider Electric METSEPM2220
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

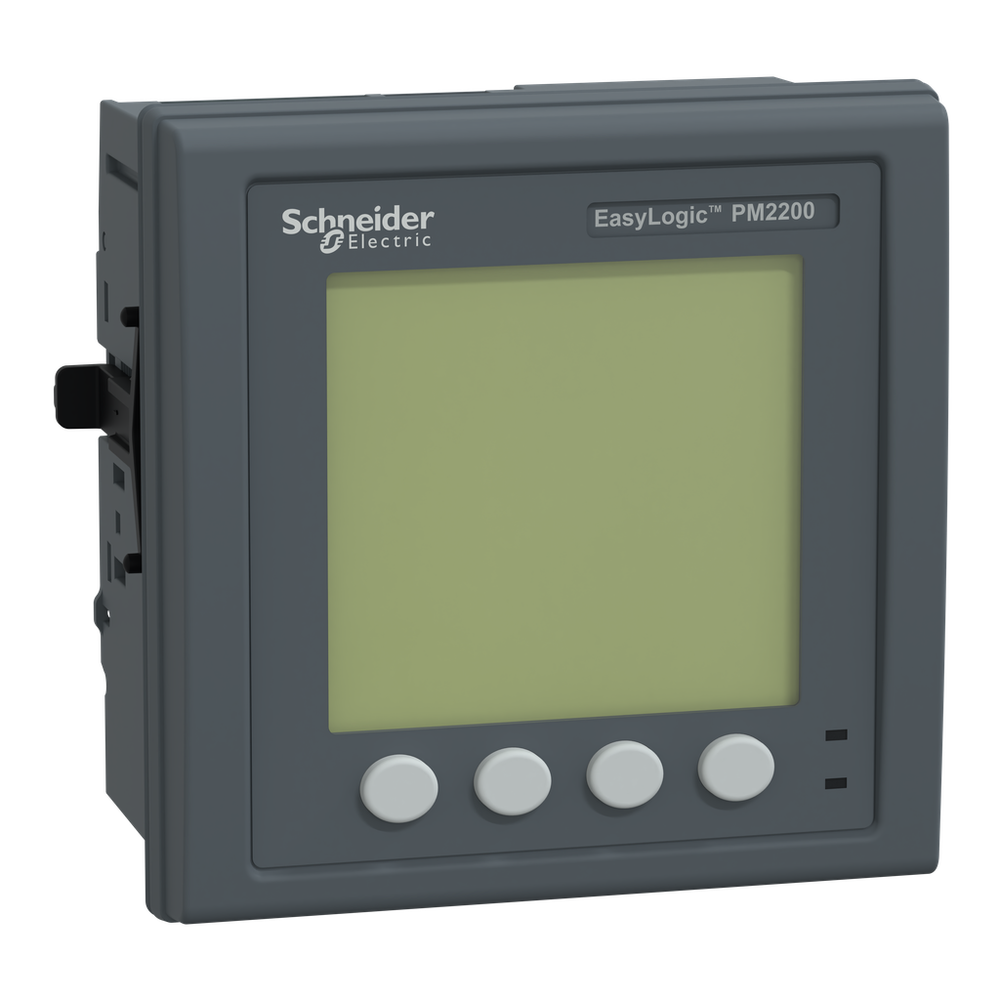

This device is a panel mount or flush mount power meter with a 96mm by 96mm bezel size having backlit LCD display of 128 by 128 pixels. The meter measures active energy as per accuracy class Class 1.0 complying to IEC 62053-21 standard with sampling rate of 64 samples per cycle. Able to measures all three vectors of power and energy such as Active, Apparent & Reactive beside Voltages, Current, Frequency and Power Factor. Plus the total Harmonic Distortion and Individual harmonics up to 15th Harmonic order. The meter will function in either 50Hz or 60Hz network frequency and accepts universal control power voltages ranging from 44 to 300 V Line to Neutral AC or DC voltages. Rated current for this meter is either 1A or 5A input. it supports up to 13 different types of wiring schemes under Single Phase, Two Phase or Three Phase configuration types. The range of measurement voltage between Phases is 35 to 480 V Line to Line AC at 45 to 65 Hz while it is 20 to 277 V between Line and Neutral. It is having RS485 communication port over Modbus RTU protocol. Product dimensions are as follows: width 3.78 in (96 mm), depth 2.16 in (54 mm), height 3.78 in (96 mm) and product weight 10.58 oz (300 g).EasyLogic PM2220, Power & Energy meter, up to the 15th harmonic, LCD display, RS485, class 1
Schneider Electric METSEPM2220 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Accuracy Class
- class 1 active energy IEC 62053-21 || class 1 reactive energy IEC 62053-24 || class 5 harmonic distorsion (I THD & U THD)
- Analogue Input Type
- current (impedance <= 0.3 mOhm) || voltage (impedance > 5 MOhm)
- Communication Port Protocol
- Modbus RTU 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps even/odd or none - 2 wires 2500 V
- Communication Port Support
- screw terminal block RS485
- Communication Service
- remote monitoring
- Compatibility Code
- PM2220
- Connections - Terminals
- current transformer screw connection bottom) 6 || voltage inputs screw connection top) 4
- Control Type
- 4 x button
- Cybersecurity
- enable/disable communication ports
- Data Recording
- time stamping || min/max for 8 parameters
- Depth
- total 76.09 mm || embedded 61.64 mm
- Device Application
- power monitoring || sub billing
- Display Colour
- monochrome
- Display Resolution
- 128 x 128 pixels
- Display Type
- Backlit LCD
- Electrical Insulation Class
- double insulation || class II
- Flame Retardance
- V-0 conforming to UL 94
- Frequency Measurement Range
- 45-65 Hz
- Function Available
- real time clock
- Height
- 96 mm
- Information Displayed
- demand current past value) || demand current present value) || demand power past value) || demand power present value) || voltage || current || frequency || energy consumption || harmonic distortion || power factor || active power || apparent power || reactive power || unbalanced in % || harmonic amplitude
- Line Rated Current
- 1 A || 5 A
- Local Signalling
- Red LED output signal 1...9999000 pulse/ k_h (kWh, kVAh, kVARh) || Green LED module operation and integrated communication
- Material
- polycarbonate
- Maximum Power Consumption In Va
- 6 VA 277 V AC
- Maximum Power Consumption In W
- 3.3 W power lines (AC)) || 2 W 277 V power lines (DC))
- Measurement Accuracy
- apparent power +/- 1 % || active energy +/- 1 % || reactive energy +/- 1 % || active power +/- 1 % || voltage +/- 0.5 % || power factor +/- 0.01 || current +/- 0.5 % || frequency +/- 0.05 %
- Measurement Category
- category III 480-480 V || category II 480-600 V
- Measurement Current
- 5-6000 mA
- Measurement Voltage
- 35-480 V AC 50/60 Hz between phases || 20-277 V AC 50/60 Hz between phase and neutral || 480-999000 V AC 50/60 Hz with external VT
- Metering Type
- active, reactive, apparent energy (signed, four quadrant) || current I, I1, I2, I3 || peak demand currents || peak demand power PM, QM, SM || unbalance current || active power P, P1, P2, P3 || reactive power Q, Q1, Q2, Q3 || demand power P, Q, S || voltage U, U21, U32, U13, V, V1, V2, V3 || apparent power S, S1, S2, S3 || calculated neutral current
- Mounting Mode
- clip-on
- Mounting Position
- vertical
- Mounting Support
- framework
- Net Weight
- 300 g
- Network Frequency
- 50 Hz || 60 Hz
- Number Of Inputs
- 0
- Number Of Outputs
- 0
- Power Quality Analysis
- total harmonic distortion || up to the 15th harmonic
- Product Certifications
- CE IEC 61010-1 || cULus UL 61010-1 || cULus CSA C22.2 No 61010-1 || RCM || EAC || C-tick
- Provided Equipment
- 1 x Installation guide
- Refresh Time
- configurable from 1 to 60 min
- Sampling Rate
- 64 samples/cycle
- Tamperproof Of Settings
- protected by access code
- Type Of Measurement
- apparent power min/max, total || active and reactive power min/max, total || current min/max, avg || voltage min/max, avg || frequency min/max, avg || total current harmonic distortion THD (I) per phase || total voltage harmonic distortion THD (U) per phase || power factor min/max, avg || apparent energy total || active and reactive energy total
- User Language
- Spanish || French || English || Russian || Portuguese || German || Chinese
- [Us] Rated Supply Voltage
- 44...277 V AC 45...65 Hz +/- 10 % || 44...277 V DC +/- 10 %
- Width
- 96 mm
Environment
- Ambient Air Temperature For Operation
- -10-60 °C
- Ambient Air Temperature For Storage
- -25-70 °C
- Electromagnetic Compatibility
- electrostatic discharge conforming to IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3 || electrical fast transient/burst immunity test conforming to IEC 61000-4-4 || surge immunity test conforming to IEC 61000-4-5 || conducted RF disturbances conforming to IEC 61000-4-6 || magnetic field at power frequency conforming to IEC 61000-4-8 || voltage dips and interruptions immunity test conforming to IEC 61000-4-11 || emission tests conforming to FCC Part 15 class A
- Ip Degree Of Protection
- front IP54 IEC 60529 || body IP30 IEC 60529
- Operating Altitude
- <= 6561.68 ft (2000 m)
- Overvoltage Category
- III
- Pollution Degree
- 2
- Relative Humidity
- 5-95 % 50-50 °C
- Service Life
- 7 year(s)
Offer Sustainability
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1510004
- Environmental Disclosure
- ENVPEP1510004
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Short Name
- PM2220
- Product Name
- EasyLogic PM2200
- Product Or Component Type
- power meter
- Range
- EasyLogic
