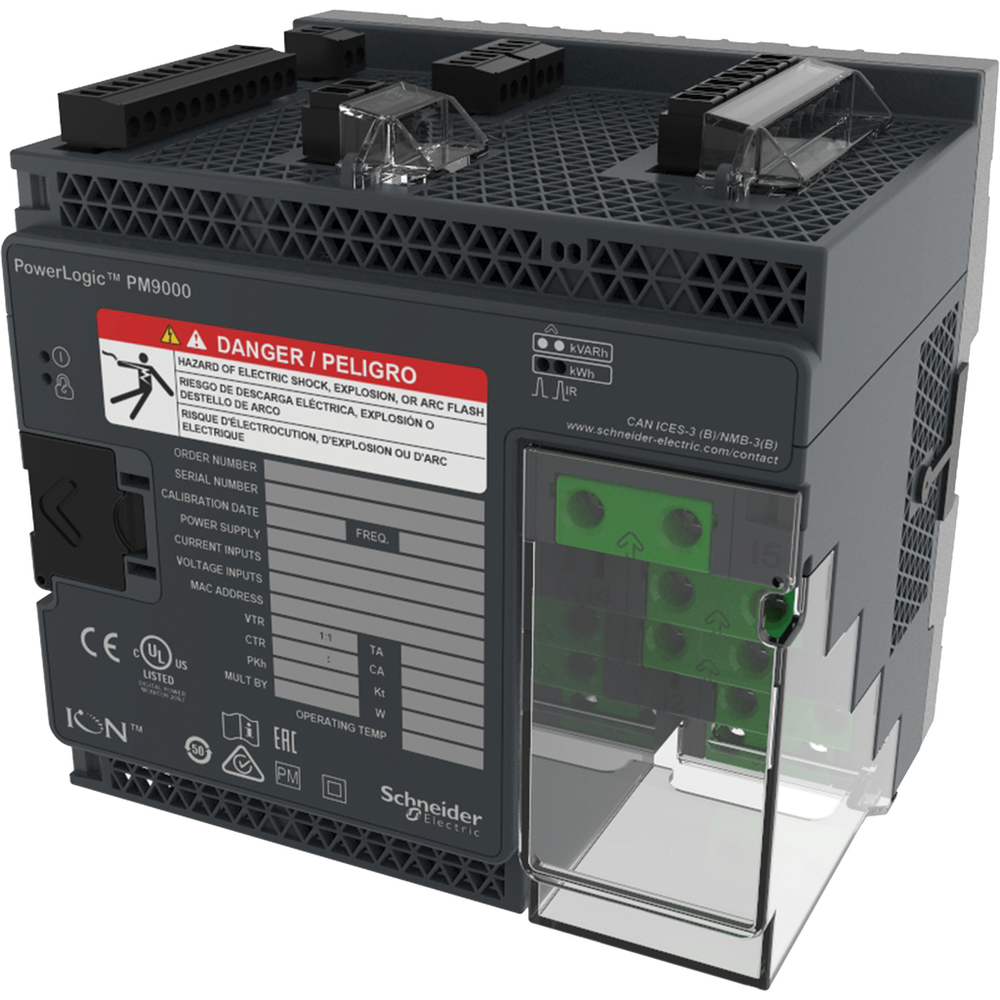

Schneider Electric METSEION95030
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The PowerLogic ION9000 is your 24/7 power quality expert, providing information, not just data. A comprehensive, industry-leading Power Quality Instrument (PQI-A) certified to IEC 62586-1/-2 ensures reliable, precision performance that is perfect for both supply and demand side applications. Third-party lab verified accuracy to Class 0.1S (ANSI C12.20, IEC 62053-22). Highly customizable and modular, ION technology programmability and field installable option modules can satisfy any solution, protecting your investment now and into the future. Providing power quality analysis according to both EN 50160 and IEEE 519, and patented Disturbance Direction Detection, you become a PQ expert and will be able to respond rapidly to system events. Cybersecurity features include secure protocols (HTTPS, SFTP), security event logging, Syslog protocol, ability to enable/disable communication ports, and 50 user configurable accounts. With 2GB of memory to support 50 data logs, 50+ user-definable alarms, disturbance and transient waveforms. 1/2 cycle RMS logging, custom web pages, min/max logs, energy trends, and Time of Use. The ability to timestamp events to +/-1 ms utilizing time synchronization method that include PTP (IEEE1588), NTP, IRIG-B, GPS ASCII (RS485) and network time set function. 8 digital inputs, 4 digital outputs and 2 relay outputs, plus the ability to add up to 4 option modules. Option modules include 2 relays and 6 digital inputs or 2 analog outputs and 4 analog inputs. Ability to capture high-speed impulsive and oscillatory transients as short as 100 ns and record both waveforms and 1/2-cycle RMS concurrently on any event. Voltage inputs of 100 to 690 V between phases; Current inputs of 1 A, 5 A; current class 2, 10, 20 A; Frequency of 20-450 Hz. Wide control power range of 90 to 480 VAC or 110 to 480 VDC. DIN rail mounting or panel mounting (with back to back adapter) transducer, plus 2 display options, further enhance the flexibility and adaptability of the ION9000.PowerLogic™ ION9000T meter, HSTC, DIN mount, no display, HW kit
Schneider Electric METSEION95030 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Accuracy Class
- class 0.1S active energy IEC 62053-22 || class 0.1 active energy IEC 61557-12 || class 0.1 active energy ANSI C12.20 || class 0.5S reactive energy IEC 62053-24 || class 0.1 current IEC 61557-12 || class 0.1 voltage IEC 61557-12 || class 0.1 active power IEC 61557-12 || class 0.5 power factor IEC 61557-12
- Analogue Input Type
- voltage (impedance 5 MOhm) || external CT (impedance 0.3 mOhm)5 x
- Communication Gateway
- Ethernet/serial
- Communication Port Protocol
- Modbus RTU 2400...115200 bps - 2-wire || ION 2400...115200 bps - 2-wire || DNP3 2400...115200 bps - 2-wire || Modbus TCP 10/100 Mbit/s || ION TCP 10/100 Mbit/s || DNP3 TCP 10/100 Mbit/s || IEC 61850 || Ethernet Modbus TCP/IP daisy chain 10/100 Mbit/s || DHCP || DNS || DLMS
- Communication Port Support
- 2 RS485 removable screw terminal block
- Communication Service
- compliant reports || power quality summary || energy report || EcoStruxure Power Events Analysis || SMTP e-mail notification || SNMP
- Cybersecurity
- Syslog protocol support || robust security logs || port hardening || enable/disable communication ports || hardware metrology lock
- Data Recording
- time stamping || min/max of instantaneous values || user-definable data logs || continuous logging or snapshot || trending/forecasting || event logs || alarm logs || configuration change || power outage || user login/logout || data logs || GPS synchronisation || sequence of event recording
- Depth
- 135.3 mm
- Display Type
- Without Display
- Electrical Insulation Class
- class III EN/IEC 62052-11
- Ethernet Service
- DHCP client || Device Profile Web Services (DPWS) || Rapid Scanning Tree Protocol (RSTP) || FTP/HTTP/HTTPS
- Frequency Measurement Range
- 20-450 Hz
- Height
- 160 mm
- Isolation Voltage
- III400-690 V conforming to EN 61010-1:ed. 3 || III347-600 V conforming to UL 61010-1:ed. 3 || III347-600 V conforming to CSA C22.2 No 61010-1:ed. 3
- Line Rated Current
- 1 A || 5 A
- Maximum Power Consumption In Va
- 80 VA 480 V AC
- Measurement Accuracy
- voltage +/- 0.1 % || current +/- 0.1 %
- Measurement Current
- 0.01-20 A
- Measurement Voltage
- 57-400 V AC 42...69 Hz between phase and neutral || 100-690 V AC 42...69 Hz between phases || 10-10 kV AC transient
- Memory Capacity
- 2 GB
- Mounting Support
- DIN rail
- Net Weight
- 1.5 kg
- Network Frequency
- 50 Hz || 60 Hz
- Number Of Inputs
- 8 digital 30 V AC/60 V DC
- Number Of Outputs
- 4 digital || 2 form C relay
- Poles Description
- 3P + N + E
- Port Ethernet
- 10/100BASE-TX 2 RJ45
- Power Consumption In Va
- 38 VA 480 V AC
- Power Quality Analysis
- EN 50160 compliance checking || IEEE 519 harmonic limit || IEC 61000-4-30 class A compliance reporting || IEEE 519 compliance reporting || waveform capture || total demand distortion || total harmonic distortion || up to the 63rd harmonic || up to the 127th harmonic with software || disturbance direction detection || dip, swell and transient || half cycle data acquisition || high-speed transient capture || coincidence disturbance waveform capture || transient detection (100 ns)
- Ride-Through Time
- 100 ms 6 cycles at 60 Hz 120 V AC typical || 400 ms 24 cycles at 60 Hz 240 V AC typical || 1200 ms 72 cycles at 60 Hz 480 V AC typical
- Sampling Rate
- 1024 samples/cycle
- Tamperproof Of Settings
- protected by sealable cover
- Time Synchronisation Protocol
- GPS || IRIG-B || NTP || SNTP || PTP
- Type Of Measurement
- voltage sags and swells || current sags and swells || voltage || current || frequency || active and reactive power total || apparent power total || active and reactive power per phase || apparent power per phase || power factor total || power factor per phase || active and reactive energy || apparent energy || harmonic distorsion (I THD & U THD)
- [Us] Rated Supply Voltage
- 90...480 V AC 45...66 Hz +/- 10 % || 90...120 V AC 400 Hz +/- 10 % || 110...480 V DC +/- 15 %
- Web Services
- viewing of captured waveform || web page || pass/fail report for IEEE 519 || pass/fail report for EN 50160 || ITIC (CBEMA) curve || SEMI curve || NEMA motor derating curve || alarm notification by e-mail || TLS 1.2 || push historical data via mail
- Width
- 160 mm
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Degree Of Protection
- UL type 12, front
- Electromagnetic Compatibility
- EMC immunity conforming to IEC 62052-11 || EMC immunity conforming to IEC 61326-1 || EMC immunity conforming to IEC 61000-6-5 || electrostatic discharge immunity test conforming to IEC 61000-4-2 || immunity to radiated fields conforming to IEC 61000-4-3 || immunity to fast transients conforming to IEC 61000-4-4 || surge immunity test conforming to IEC 61000-4-5 || immunity to conducted disturbances conforming to IEC 61000-4-6 || immunity to magnetic fields at network frequency conforming to IEC 61000-4-8 || immunity to conducted disturbances - test level: 2...150 kHz conforming to CLC/TR 50579 || voltage dips and interruptions immunity test conforming to IEC 61000-4-11 || immunity to impulse waves conforming to IEC 61000-4-12 || conducted and radiated emissions conforming to EN 55011 || conducted and radiated emissions class B conforming to EN 55032 || conducted and radiated emissions class B conforming to FCC part 15 || conducted and radiated emissions class B conforming to ICES-003 || surge withstand conforming to ANSI C37.90.1 || surge withstand conforming to IEEE C37.90.1
- Installation Category
- III
- Ip Degree Of Protection
- front IP65 || rear IP30
- Operating Altitude
- 0...9842.52 ft (0...3000 m)
- Quality Labels
- ISO 9001 || ISO 14000
- Relative Humidity
- 5-95 %
- Standards
- ANSI C12.20 || ANSI C37.90.1 || IEC 61000-4-15 || IEC 61000-4-30 || IEC 61010-1 || IEC 61326-1 || IEC 61557-12 || IEC 61850 || IEC 62052-11 || IEC 62052-31 || IEC 62053-22 || IEC 62053-23 || IEC 62053-24 || IEC 62586 || UL 61010-1
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1801009EN
- Environmental Disclosure
- ENVPEP1801009EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Application
- power monitoring || WAGES metering || Net metering || medium voltage || high voltage
- Device Short Name
- ION95030
- Metering Type
- demand current I1, I2, I3, I4, I5 || peak demand currents || demand power P, Q, S || peak demand power PM, QM, SM || calculated active and reactive energy (+/- W.h, +/- VAR.h)
- Product Or Component Type
- energy and power quality meter
- Range
- PowerLogic
