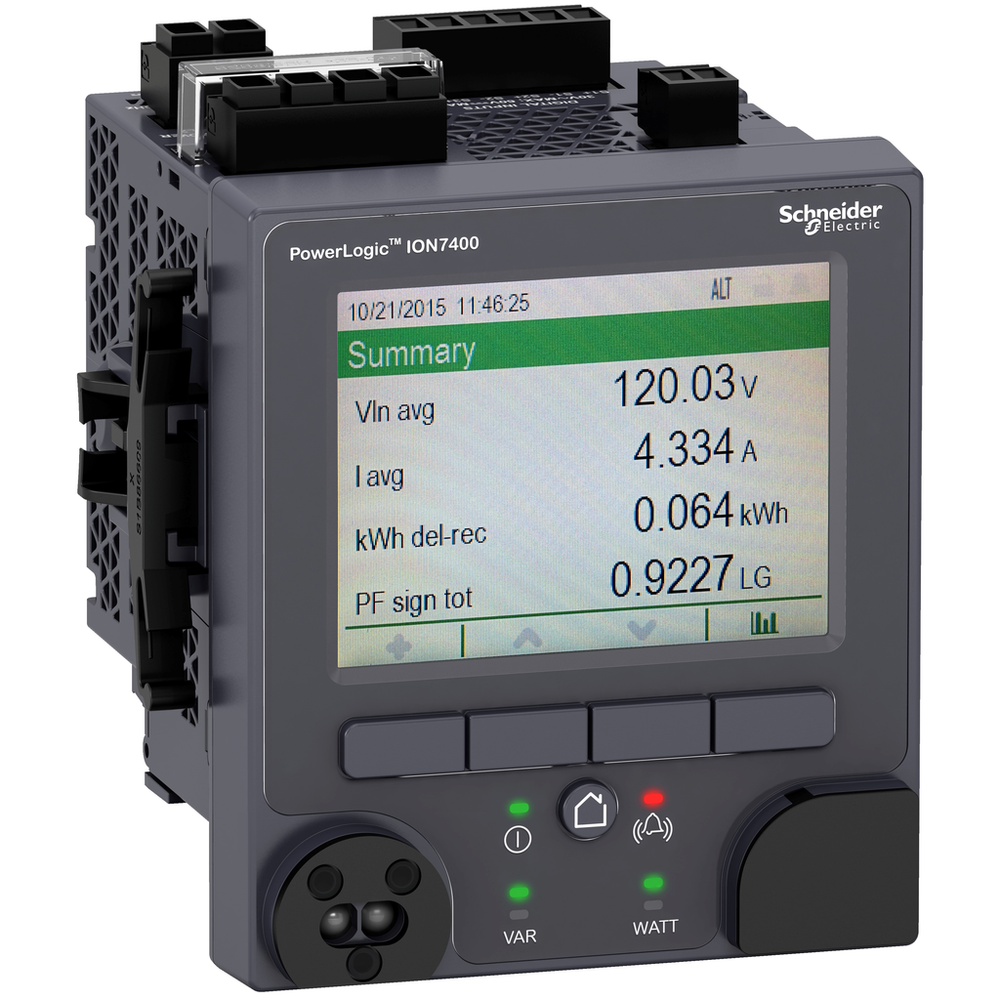

Schneider Electric METSEION7410
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
PowerLogic ION7400 utility feeder power meters combine capabilities not typically available in compact meters. They offers a hight flexibility and usability, along with accurate 3-phase energy and power measurements with data logging. Use Power Monitoring Expert software for data analysis or share operation data with SCADA systems through multiple communication channels and protocols. Certified by third party labs for energy accuracy (IEC 62052-11, IEC 62052-22, IEC 62052-24) and power quality (IEC 62586-2, IEC 61000-4-30 Class S). Cybersecurity features include secure protocols (HTTPS, SFTP), security event logging, Syslog protocol. Ability to enable/disable communication ports, and 16 user configurable accounts. With 512 MB of memory to support 50 data logs, 50+ user-definable alarms, waveform captures, 1/2 cycle RMS logging, custom web pages, min/max logs, energy trends, and Time of Use. The ability to timestamp events to +/-1 ms utilizing time synchronization method that include PTP (IEEE1588), NTP, IRIG-B, GPS ASCII (RS485) and network time set function. 3 digital inputs and one digital output. I/O option modules include 2 relays and 6 digital inputs or 2 analog outputs and 4 analog inputs. Wide control power range of 20-60 VDC. Operating environment of -25 to +70C; Humidity rating of 5% to 95%; Altitude up to 3000 m. Panel mounting (1/4 DIN) with integrated display.PowerLogic ION7410 LV DC - Panel mount meter - display - optical port and 2 puls
Schneider Electric METSEION7410 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Accuracy Class
- class 0.2S active energy IEC 62053-22 || class 0.2 active energy ANSI C12.20 || class 0.2 active power IEC 61557-12 || class 0.5S reactive energy IEC 62053-24 || class 0.5 power factor IEC 61557-12 || class 0.2 voltage IEC 61557-12 || class 0.2 current IEC 61557-12 || class 0.2 frequency IEC 61557-12 || class 0.2 active energy IEC 61557-12
- Analogue Input Type
- voltage (impedance 5 MOhm) || current (impedance 0.3 mOhm)
- Communication Network Type
- IPv6 (internet protocol)
- Communication Port Protocol
- Modbus RTU 115 kbauds - 2-wire || ION 115 kbauds - 2-wire || DNP3 || IEC 61850 || Modbus TCP/IP || Ethernet Modbus TCP/IP daisy chain 10/100 Mbit/s || RSTP 801.1d 2004 || Ansi C12.19 || DLMS
- Communication Port Support
- ETHERNET || screw terminal block RS485 || optical probe fiber optic || mini B USB USB
- Communication Service
- SNMP || SMTP e-mail notification || RSTP support || DHCP || NTP time synchronization || PTP time synchronization
- Cybersecurity
- enable/disable communication ports || port hardening || Syslog protocol support || password protection || robust security logs
- Data Recording
- data logs || sag and swell logs || waveform logs || trending/forecasting || sequence of event recording || GPS synchronisation || harmonics logs || time stamping || alarm logs || event logs || min/max of instantaneous values
- Depth
- 78.5 mm
- Device Application
- data aggregation || revenue billing || WAGES metering || power monitoring
- Display Resolution
- 320 x 240 pixels QVGA
- Display Type
- colour TFT LCD
- Frequency Measurement Range
- 42-69 Hz
- Height
- 112 mm
- Information Displayed
- voltage || current || frequency || power || energy consumption || harmonic distortion
- Installation Category
- III
- Isolation Voltage
- III400-690 V conforming to IEC 61010-1:ed. 3 || III400-690 V conforming to EN 61010-1:ed. 3 || III347-600 V conforming to UL 61010-1:ed. 3 || III347-600 V conforming to CSA C22.2 No 61010-1:ed. 3
- Line Rated Current
- 10 A || 1 A || 5 A
- Measurement Accuracy
- current +/- 0.1 % || voltage +/- 0.1 % || active energy +/- 0.2 %
- Measurement Current
- 50-10000 mA
- Measurement Voltage
- 57-400 V AC 42...69 Hz between phase and neutral || 100-690 V AC 42...69 Hz between phases
- Memory Capacity
- 512 MB
- Mounting Mode
- flush-mounted
- Mounting Support
- framework
- Net Weight
- 706 g
- Network Frequency
- 50 Hz || 60 Hz
- Number Of Inputs
- 3 digital 30 V AC || 3 digital 60 V DC
- Number Of Outputs
- 1 pulse
- Poles Description
- 1P + N || 3P + N || 3P
- Power Consumption In W
- 17 W
- Power Quality Analysis
- EN 50160 2010 compliance report || IEEE 519 2014 compliance report || IEC 61000-4-30 class S power quality measurement || up to the 63rd harmonic || harmonic distortion || waveform capture || voltage sag and swell detection || programmablity (logic and math functions) || IEC 62586 power quality monitoring || IEC 61000-4-15 flicker || disturbance direction detection
- Product Certifications
- CE || cULus || N998
- Sampling Rate
- 256 samples/cycle
- Standards
- IEC 61557-12 || IEC 61326-1 || IEC 62052-11 || IEC 62053-24 || IEC 62053-22 || IEEE 1588 || IEC 62586
- Type Of Installation
- indoor installation
- Type Of Measurement
- current || voltage || frequency || active and reactive power total || apparent power total || power factor total || active and reactive power per phase, rms || apparent power per phase, rms || power factor per phase, rms || active and reactive energy || apparent energy
- [Us] Rated Supply Voltage
- 20...60 V DC +/- 10 %
- Web Services
- customizable home page || file upload/download via FTP || file upload/download via SFTP || web server || alarm notification by e-mail || viewing of captured waveform (FTP) || viewing of captured waveform (web) || HTTPS server
- Width
- 98 mm
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Electromagnetic Compatibility
- electrostatic discharge conforming to IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3 || electrical fast transient/burst immunity test conforming to IEC 61000-4-4 || surge immunity test conforming to IEC 61000-4-5 || conducted RF disturbances conforming to IEC 61000-4-6 || magnetic field at power frequency conforming to IEC 61000-4-8 || voltage dips and interruptions immunity test conforming to IEC 61000-4-11 || immunity to impulse waves conforming to IEC 61000-4-12 || conducted and radiated emissions conforming to EN 55022 || conducted and radiated emissions conforming to EN 55011 || conducted and radiated emissions conforming to FCC part 15 || conducted and radiated emissions conforming to ICES-003 || conducted RF disturbances (2...150 Hz) conforming to CLC/TR 50579 || surge withstand conforming to IEEE C37.90.1
- Ip Degree Of Protection
- front IP54 IEC 60529 || body IP30 IEC 60529
- Operating Altitude
- 9842.52 ft (3000 m)
- Relative Humidity
- 5-95 %
Offer Sustainability
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1512006EN
- Environmental Disclosure
- ENVPEP1512006EN
- Eu Rohs Directive
- Compliant
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- ION7410
- Product Name
- PowerLogic ION7400
- Product Or Component Type
- power meter
- Range
- PowerLogic
