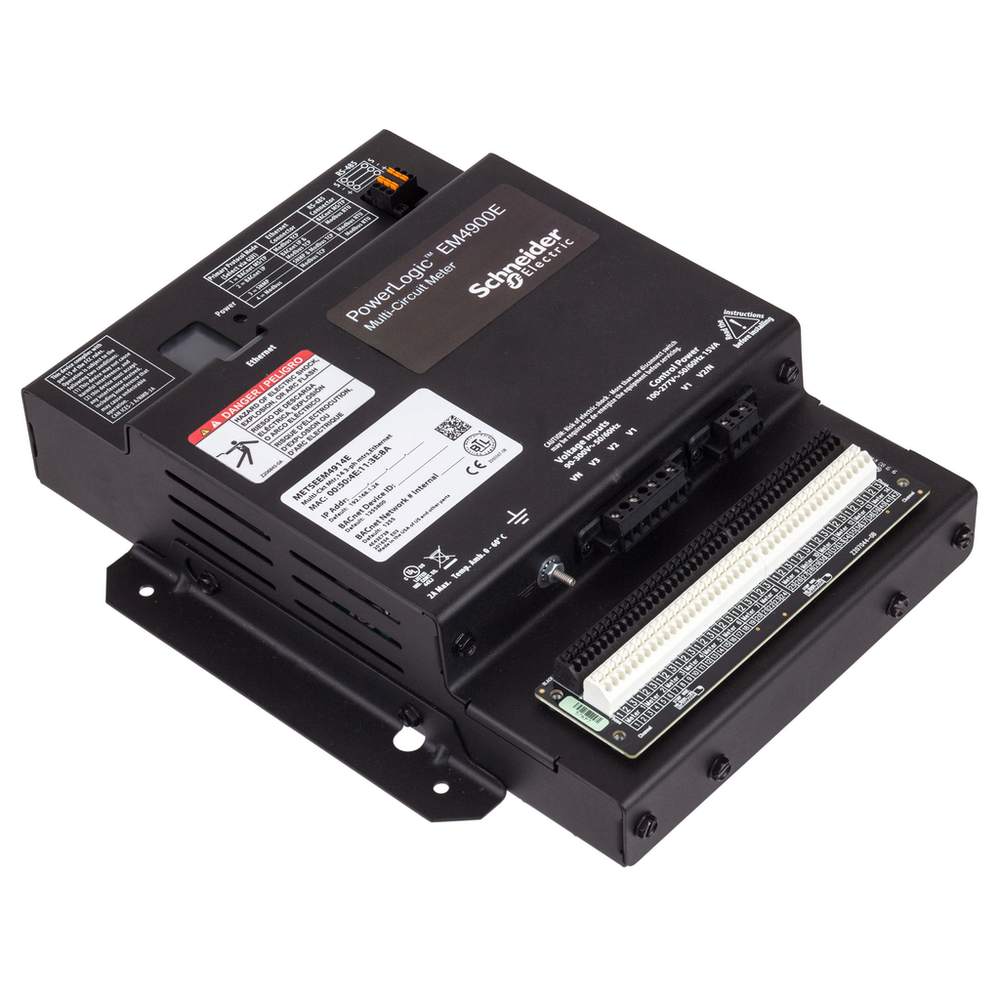

Schneider Electric METSEEM4928E
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This multi-circuit power meter is part of the PowerLogic EM4900 Series. This device is a multi-circuit power meters that make it easy to add many revenue-grade metering points. Without having to purchase, mount, wire and commission individual energy meters. This version measures current, voltage, power and energy consumption of up to 28 3-phase circuits with a two board configuration. It also offers Ethernet and serial communications. Measurement accuracy is plus or minus 1 % with LVCT0xxxx0S split core, or plus or minus 0.5 % with LVCT2xxxx0S split core. The printed board is installed in a sturdy metal enclosure. Mechanical dimensions of the main unit are 253 mm in width, 353 mm in height and 71 mm in depth.PowerLogic EM4900 Multi-Circuit Meter – 28x3P circuits - Ethernet and Serial
Schneider Electric METSEEM4928E is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Analogue Input Type
- solid core CT 0.333 V84 x single pole || solid core CT 0.333 V42 x single phase || solid core CT 0.333 V28 x three phase || split core CT 0.333 V84 x single pole || split core CT 0.333 V42 x single phase || split core CT 0.333 V28 x three phase
- Communication Of Data
- low-low current alarm || total energy || over voltage alarm || high-high current alarm || low current alarm || high current alarm || under voltage alarm
- Communication Port Protocol
- Modbus RTU 9600, 19200, 38400 bps even/odd or none - 2 wires || Modbus TCP 9600, 19200, 38400 bps even/odd or none - 2 wires || SNMP || BACnet IP 10, 100 Mbits || BACnet MS/TP
- Communication Port Support
- spring connector RS485 || RJ45
- Communication Service
- updating firmware
- Data Recording
- maximum of demand active power || maximum of instantaneous current || maximum of demand current
- Measurement Accuracy
- power +/- 0.5 % of the measuring range || energy +/- 0.5 % of the measuring range || current +/- 0.5 % of the measuring range || voltage +/- 0.5 % of the measuring range
- Measurement Voltage
- 150-480 V AC 50/60 Hz between phases || 90-277 V AC 50/60 Hz between phase and neutral
- Refresh Time
- 2 s Modbus) || 14 s BACnet) || 20 s SNMP)
- Sampling Rate
- 256 samples/cycle
- Web Services
- web server
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Depth
- 307 mm
- Height
- 70 mm
- Installation Category
- III
- Mounting Mode
- wall mount
- Net Weight
- 1.5 kg
- Pollution Degree
- 2
- Standards
- IEC 61010 || UL 508
- Width
- 253 mm
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Application
- sub billing
- Device Short Name
- EM4928
- Energy Management
- billing analysis || sub billing and cost allocation
- Metering Type
- demand current I1, I2, I3, peak demand current IM1, IM2, IM3 || demand power P
- Network Frequency
- 50 Hz || 60 Hz
- Power Monitoring
- basic instrumentation
- Product Name
- PowerLogic EM4900E
- Product Or Component Type
- multi-circuit energy meter
- Range
- PowerLogic
- Type Of Measurement
- current per phase, rms || current average || phase angle || active power total || active power per phase || apparent power total || apparent power per phase || power factor average || power factor per phase || active energy
- [Us] Rated Supply Voltage
- 100...277 V AC 50/60 Hz
