Schneider Electric METSEEM488016
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

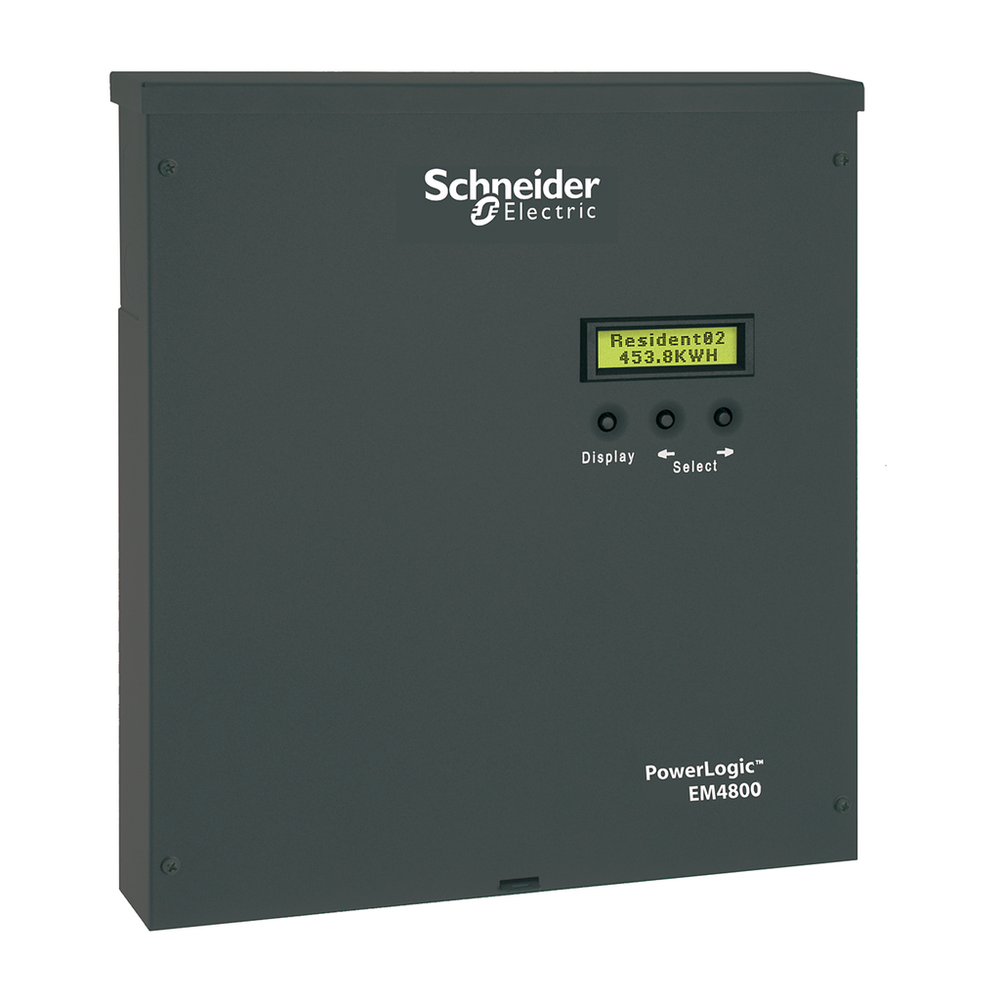

This multi-circuit power meter is part of the PowerLogic EM4800 Series. This compact multi-circuit energy meter enables reliable metering of individual tenants with a low installation cost-per-point. It combine revenue-accurate electricity sub-metering with advanced communications technology. It is ideal for multi-tenant or departmental metering applications within office, condominiums, malls and other multi-user environments. This version monitor up to 24 tenants with a single device, combined with 80 mA solid core current transformers. Designed for 120 volts networks, working at 60 Hz. Measurement accuracy is plus or minus 0.5 %, compliant with ANSI C12.1 and C12.20 Class 0.5 ; IEC 62053-22 Class 0.5S. The printed board is installed in a Type 1 black enclosure, with an integrated backlit LCD display, 2 lines, on the door. Mechanical dimensions are 335 mm in width, 440 mm in height and 55 mm in depth ; for 5.4 kg.EM4800 multi-circuit energy meter - 24 x 80 mA inputs, 120 V - 60 Hz
Schneider Electric METSEEM488016 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Analogue Input Type
- solid core CT 80 mA24 x single pole || solid core CT 80 mA12 x single phase || solid core CT 80 mA8 x three phase
- Communication Of Data
- positive reactive energy || positive active energy || voltage || apparent energy || negative reactive energy || negative active energy
- Communication Port Protocol
- BACnet IP || FTP || HTTP || Modbus TCP/IP || SNTP
- Communication Port Support
- RJ45 ETHERNET || RJ11 modem || SUB-D 9 RS232
- Display Type
- Backlit LCD
- Measurement Accuracy
- +/- 0.5 % of the measuring range
- Measurement Voltage
- 80-480 V || 480-999000 V with external VT
- Messages Display Capacity
- 2 lines of 16 characters
- Number Of Inputs
- 2 pulse
- Sampling Rate
- 256 samples/cycle
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Depth
- 5.5 cm
- Device Mounting
- wall mounted
- Height
- 30.5 cm
- Mounting Mode
- wall mount
- Net Weight
- 4 kg
- Operating Altitude
- <= 9842.52 ft (3000 m)
- Pollution Degree
- 2
- Product Certifications
- UL
- Relative Humidity
- 90-90 % 40-40 °C
- Standards
- ICES-003 || CSA C22.2 No 61010-1 || IEC 61000-4-5 || EN 55022 || FCC Part 15 class B || IEC 61010-1 || ANSI/TIA-568-A
- Type Of Installation
- indoor installation || enclosed outdoor
- Width
- 33.5 cm
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
Specifications
- Device Application
- sub billing
- Device Short Name
- EM4800
- Energy Management
- sub billing and cost allocation || billing analysis
- Network Frequency
- 60 Hz
- Power Monitoring
- basic instrumentation
- Product Name
- PowerLogic EM4800
- Product Or Component Type
- multi-circuit energy meter
- Range
- PowerLogic
- Type Of Measurement
- current per phase, rms || voltage per phase, rms || negative reactive energy || apparent energy || pulse count || positive active energy || positive reactive energy || negative active energy
- [Us] Rated Supply Voltage
- 120 V AC 60 Hz
