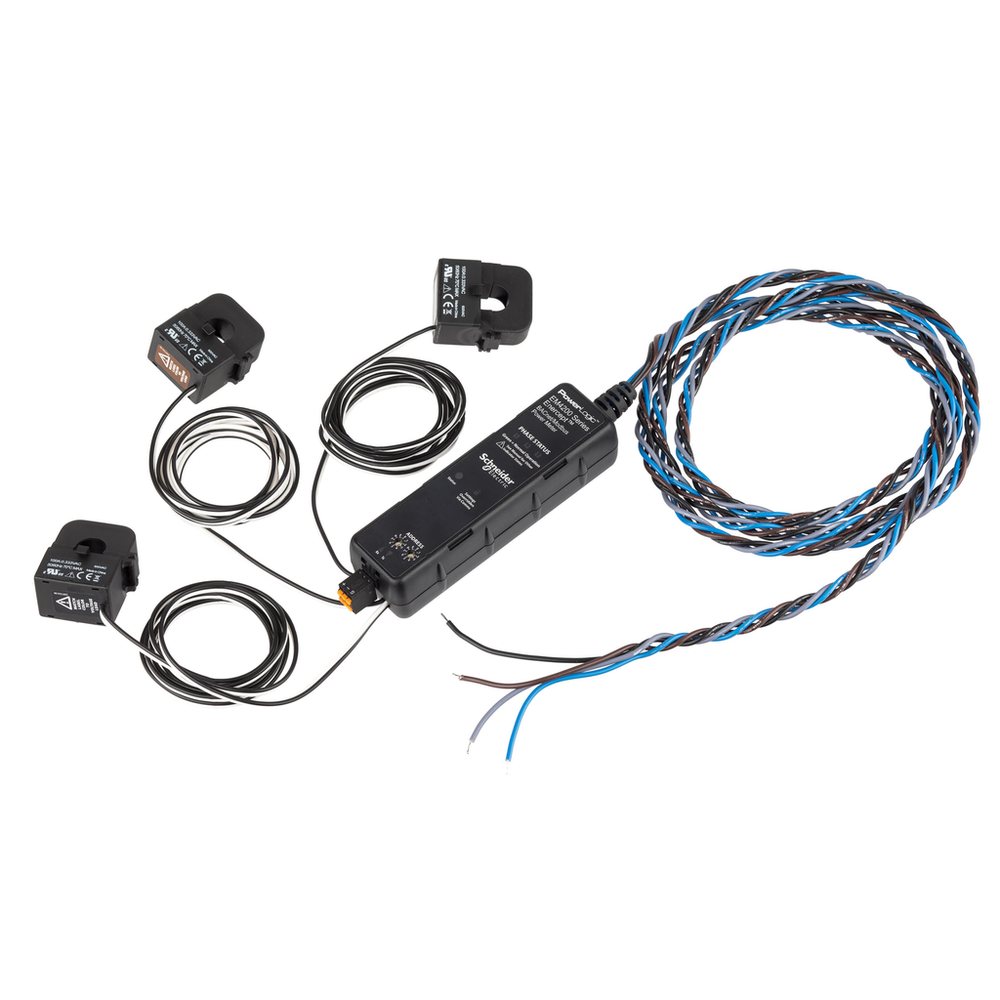

Schneider Electric METSEEM4236B401

Complementary

• Accuracy Class
  • class 1 ANSI C12.1 || class 1S IEC 62053-22
• Analogue Input Type
  • split core current transducer 0.333 V (impedance 33 kOhm) || voltage (impedance 2.5 MOhm)single phase || voltage (impedance 5 MOhm)phase to phase
• Communication Of Data
  • remote control orders || total energy || net energy
• Communication Port Protocol
  • Modbus RTU 9600 bauds...115200 bauds (automatic detection) || BACnet MS/TP 9600 bauds...115200 bauds (automatic detection)
• Connections - Terminals
  • input/output plug-in connector bottom) 0.2-1.5 mm² || current transformer plug-in connector bottom) 0.2-1.5 mm² || communication plug-in connector bottom) 0.2-1.5 mm²
• Depth
  • 35.81 mm
• Display Type
  • Without Display
• Frequency Measurement Range
  • 45-65 Hz
• Function Available
  • external synchronisation to communication || fixed or rolling block
• Height
  • 152.36 mm
• Line Rated Current
  • 400 A
• Local Signalling
  • status LED green and red) || line fault 3 LED green, orange and red) || dial pointer indication LED Yellow) || RX/TX 2 LED green, orange and red)
• Measurement Accuracy
  • 1 %
• Measurement Current
  • 0-400 A
• Measurement Voltage
  • 90-90 V AC 45...65 Hz minimum per phase || 480-480 V AC 45...65 Hz between phases || 300-300 V AC 45...65 Hz between phase and neutral
• Metering Type
  • active, reactive, apparent energy (signed, four quadrant) || apparent power S, S1, S2, S3 || demand power P, Q, S || active power P, P1, P2, P3 || reactive power Q, Q1, Q2, Q3 || power factor || average current Iavg || peak demand power PM, QM, SM || frequency || voltage U21, U32, U13, V1, V2, V3
• Mounting Mode
  • by screws || clip-on || by hook
• Mounting Support
  • enclosure || DIN rail
• Network Frequency
  • 50 Hz || 60 Hz
• Number Of Inputs
  • 0
• Number Of Outputs
  • 0
• Product Certifications
  • CE EN 61010-1 || cULus UL 61010-1 || BTL || ANSI
• Provided Equipment
  • bracket for support || hook || split core current transducer 3 || fuse
• Standards
  • EN 61010-1 || UL 61010-1 || CAN/CSA C22.2 No. 61010-1-12
• Width
  • 46.63 mm
• Wire Stripping Length
  • 6 mm

Environment

• Ambient Air Temperature For Operation
  • -30-70 °C
• Ambient Air Temperature For Storage
  • -40-85 °C
• Electromagnetic Compatibility
  • conducted and radiated emissions conforming to FCC Part 15 class A || conducted and radiated emissions conforming to EN 61000-6-4 || conducted and radiated emissions conforming to EN 61326 + A1 || immunity to conducted disturbances conforming to EN 61000-6-2 || immunity to conducted disturbances conforming to EN 61326-1 || immunity to radiated fields conforming to EN 61000-6-2 || immunity to radiated fields conforming to EN 61326-1
• Ip Degree Of Protection
  • IP20 IEC 60529
• Measurement Category
  • category III 277-277 V || category III 300-300 V
• Operating Altitude
  • < 9842.52 ft (3000 m)
• Pollution Degree
  • 2
• Relative Humidity
  • 0-95 %

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • Product out of China RoHS scope. Substance declaration for your information.
• Eu Rohs Directive
  • Compliant
• Mercury Free
  • Yes
• Reach Free Of Svhc
  • Yes
• Reach Regulation
  • Free of Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Device Application
  • power monitoring
• Device Short Name
  • Enercept
• Product Name
  • PowerLogic EM4200
• Product Or Component Type
  • energy meter
• Range
  • PowerLogic
• Type Of Cable
  • ANSI cable
