Schneider Electric METSEEM403316
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

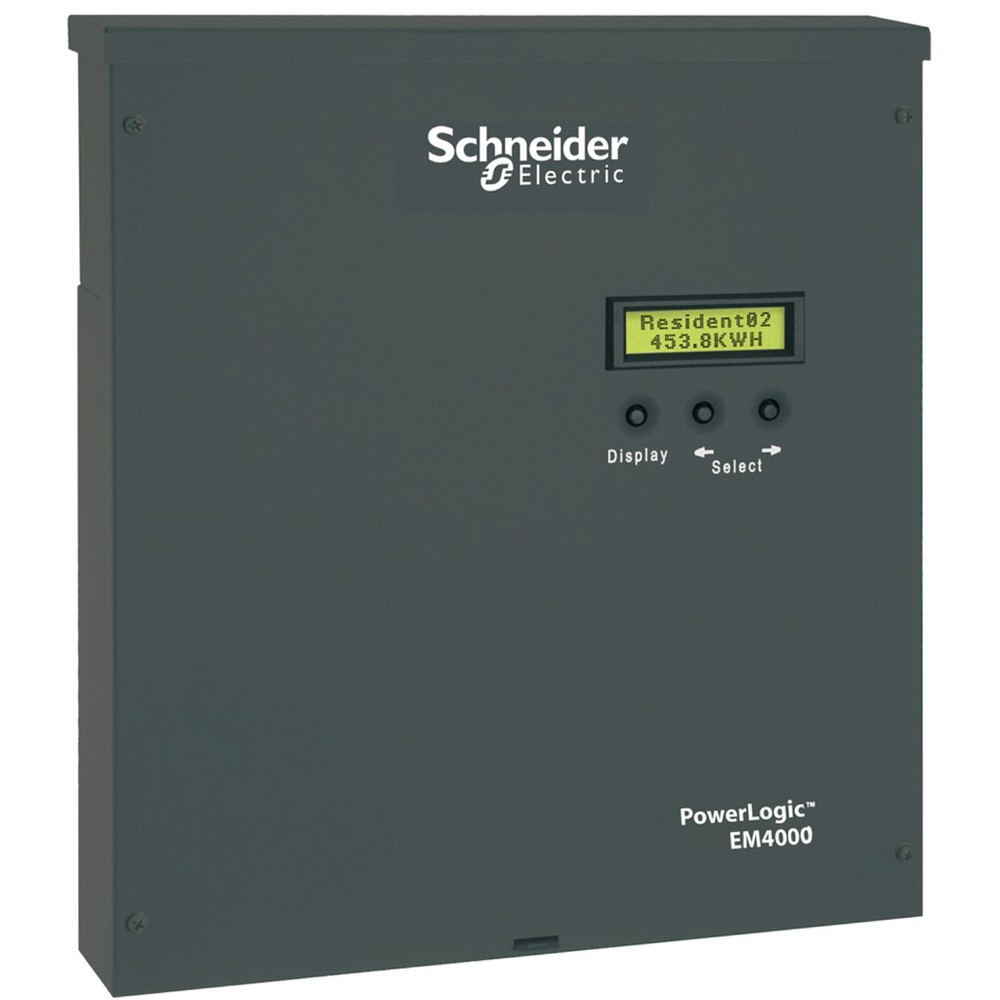

This multi-circuit power meter is part of the PowerLogic EM4000 Series. This compact multi-circuit energy meter enables reliable metering of building electrical loads with a low installation cost-per-point. It combine revenue-accurate electricity sub-metering with advanced communications technology. It is ideal for departmental metering applications and M&V within office, condominiums, malls and other multi-user environments. This version monitor up to 24 tenants with a single device, combined with 0.333 volt split or solid core current transducer. Designed for 277 (phase neutral) or 480 volts (phase phase) networks, working at 60 Hz. Measurement accuracy is plus or minus 0.5 %, compliant with ANSI C12.1 and C12.20 Class 0.5 ; IEC 62053-22 Class 0.5S. The printed board is installed in a Type 1 black enclosure, with an integrated backlit LCD display, 2 lines, on the door. Mechanical dimensions are 335 mm in width, 305 mm in height and 55 mm in depth ; for 4 kg.EM4000 multi-circuit energy meter, 24 x 333 mV inputs, 120V control power 60 Hz
Schneider Electric METSEEM403316 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Analogue Input Type
- solid core CT 0.333 V24 x single pole || solid core CT 0.333 V12 x single phase || solid core CT 0.333 V8 x three phase || split core CT 0.333 V24 x single pole || split core CT 0.333 V12 x single phase || split core CT 0.333 V8 x three phase
- Communication Of Data
- voltage || positive active energy || positive reactive energy || negative reactive energy || apparent energy || negative active energy
- Communication Port Protocol
- BACnet IP || FTP || HTTP || Modbus TCP/IP || SNTP
- Communication Port Support
- RJ45 ETHERNET || RS485
- Display Type
- Backlit LCD
- Measurement Accuracy
- +/- 0.5 % of the measuring range
- Measurement Voltage
- 80-480 V without PTs || 480-999000 V with external PTs
- Messages Display Capacity
- 2 lines of 16 characters
- Number Of Inputs
- 2 pulse
- Sampling Rate
- 256 samples/cycle
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Depth
- 5.5 cm
- Device Mounting
- wall mounted
- Enclosure Type
- NEMA type 1
- Height
- 33.5 cm
- Mounting Mode
- wall mount
- Net Weight
- 4 kg
- Operating Altitude
- <= 9842.52 ft (3000 m)
- Pollution Degree
- 2
- Product Certifications
- UL
- Relative Humidity
- 90-90 % 40-40 °C
- Standards
- ANSI/TIA-968-A : 2002 || EN 55022 || FCC Part 15 class B || IEC 6100-4-5 || ICES-003 || CSA C22.2 No 61010-1-4 || CSA C22.2 No 61010-1
- Type Of Installation
- indoor installation || enclosed outdoor
- Width
- 30.5 cm
Offer Sustainability
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI111006EN
- Environmental Disclosure
- ENVPEP111007EN
- Eu Rohs Directive
- Not compliant
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Application
- sub billing
- Device Short Name
- EM4033
- Energy Management
- sub billing and cost allocation || billing analysis
- Network Frequency
- 60 Hz
- Power Monitoring
- basic instrumentation
- Power Quality Analysis
- compliance monitoring
- Product Name
- PowerLogic EM4000
- Product Or Component Type
- multi-circuit energy meter
- Range
- PowerLogic
- Type Of Measurement
- current per phase, rms || negative active energy || voltage per phase, rms || negative reactive energy || apparent energy || pulse count || active and reactive power || apparent power || positive active energy || positive reactive energy
- [Us] Rated Supply Voltage
- 120 V AC 60 Hz
