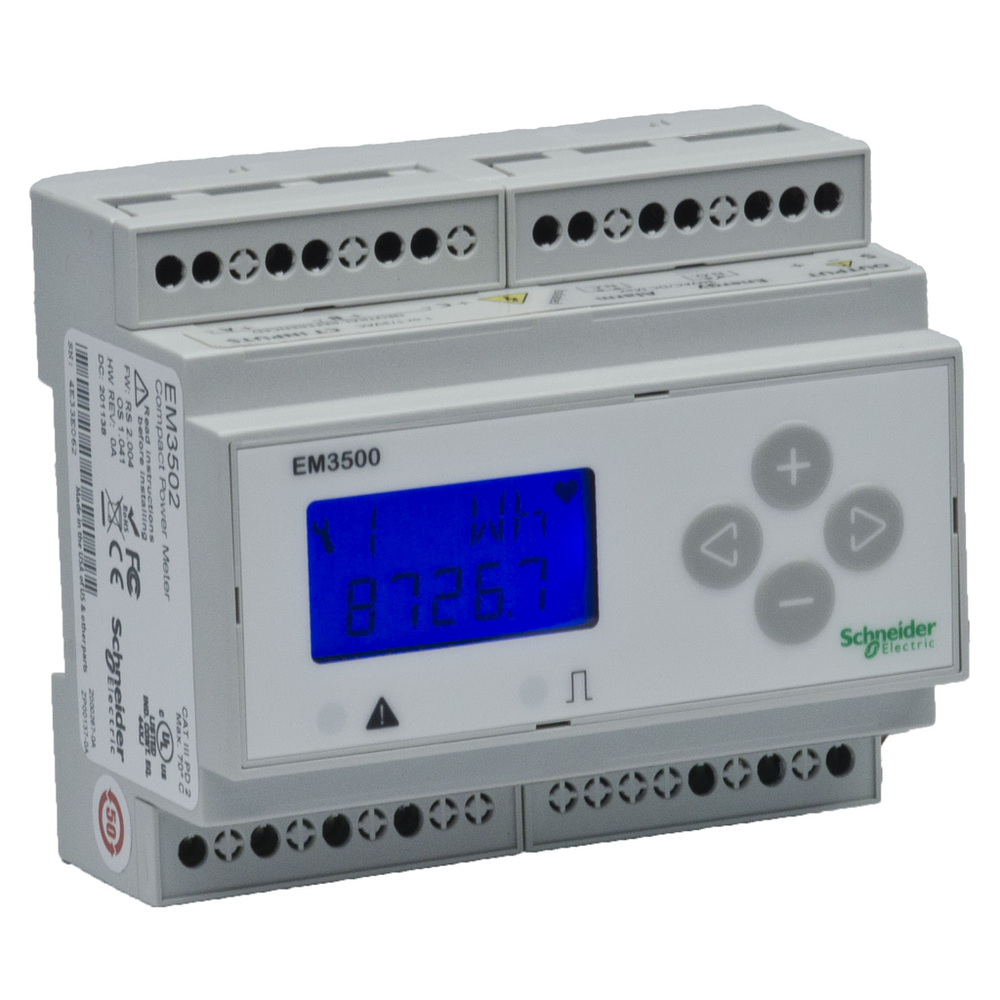

Schneider Electric METSEEM3502

Complementary

• Accuracy Class
  • class 0.2S power IEC 62053-22 || class 0.2S energy IEC 62053-22 || class 0.2S power ANSI C12.20 || class 0.2S energy ANSI C12.20
• Analogue Input Type
  • split core current transducer 0.333 V or 1 V
• Communication Service
  • total cumulated active energy || total cumulated energy
• Data Recording
  • energy consumption logs
• Device Application
  • partial meter || sub billing
• Display Digits
  • 5
• Display Type
  • Backlit LCD
• Function Available
  • fixed or rolling block
• Information Displayed
  • status and alert || communication with system || input/output status || error || Tx activity || Rx activity || instant power per usage
• Local Signalling
  • Red LED threshold reached || Green flashing LED output signal
• Measurement Accuracy
  • power +/- 0.2 % || energy +/- 0.2 %
• Measurement Current
  • 5-32000 A
• Mounting Mode
  • clip-on || by screws
• Mounting Support
  • DIN rail
• Network Frequency
  • 60 Hz || 50 Hz
• Number Of Outputs
  • 2 pulse || 1 alarm output
• Output Voltage
  • 30 V AC/DC
• Poles Description
  • 3P + N
• Power Consumption In Va
  • 5-5 VA 347 V AC between phase and neutral) || 5-5 VA 600 V AC between phases)
• Power Consumption In W
  • 3 W 300-300 V
• Product Certifications
  • CE IEC 61010 || cULus UL 508
• Rated Voltage
  • 90-347 V
• Ride-Through Time
  • 100 ms 120 V AC
• Standards
  • UL 508 || CSA C22.2 No 14-05 || IEC 61010-1
• Tamperproof Of Settings
  • protected by access code
• Technology Type
  • electronic
• Type Of Measurement
  • active and reactive power total || active and reactive power per phase || apparent power total || apparent power per phase || power factor total || power factor per phase || peak demand power || current || voltage || frequency
• [Ue] Rated Operational Voltage
  • 90...347 V AC 50/60 Hz between phase and neutral UL || 156...600 V AC 50/60 Hz between phases UL || 90...300 V AC 50/60 Hz between phase and neutral CE || 125...300 V DC

Environment

• 9 Mm Pitches
  • 12
• Ambient Air Temperature For Operation
  • -30-70 °C
• Ambient Air Temperature For Storage
  • -40-85 °C
• Color
  • dark grey
• Depth
  • 59 mm
• Height
  • 91 mm
• Relative Humidity
  • 0-95 %
• Width
  • 107 mm

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Eu Rohs Directive
  • Compliant
• Mercury Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Device Short Name
  • EM3502
• Metering Type
  • demand power P, Q, S || peak demand power PM, QM, SM || current I1, I2, I3, Iavg || voltage U21, U32, U13, V1, V2, V3
• Product Name
  • PowerLogic EM3500
• Product Or Component Type
  • energy meter
• Range
  • PowerLogic
