Schneider Electric MCSESU083FN0
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

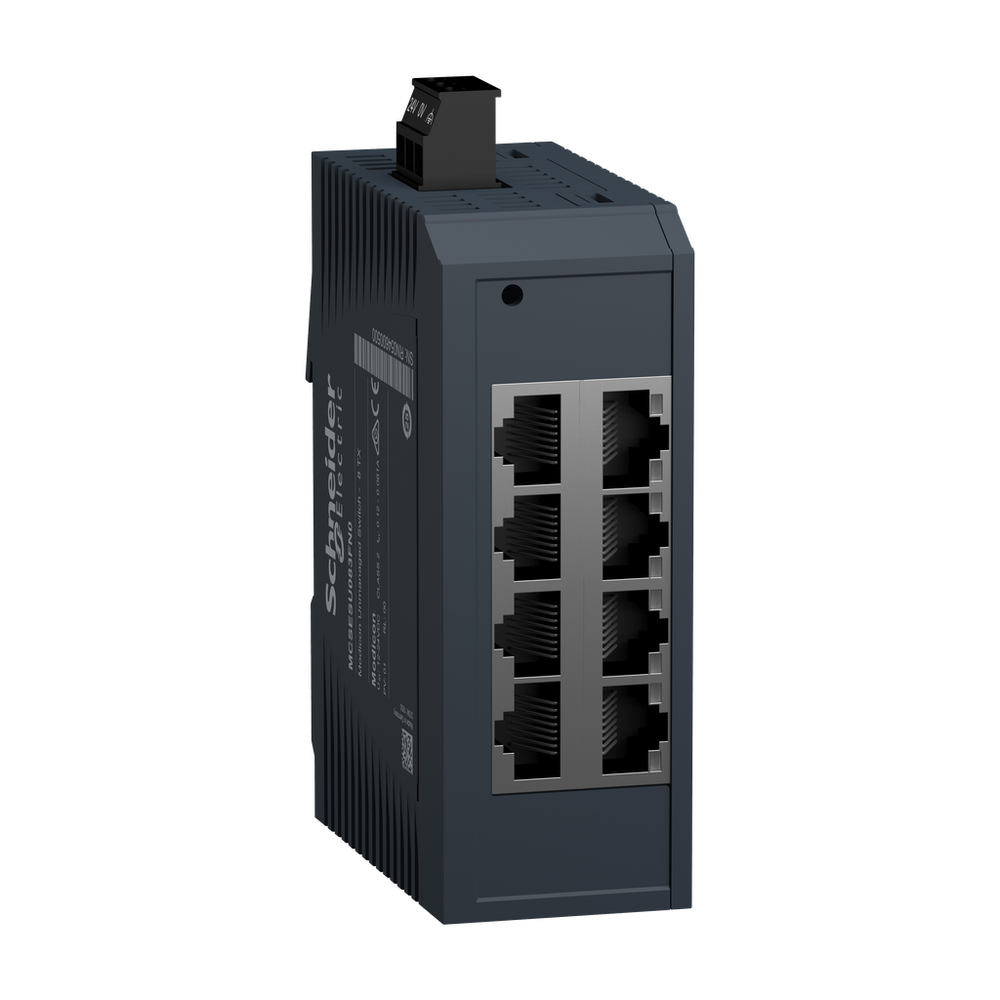

This product is part of the Modicon Networking range, an offer of Modicon Standard Unmanaged Switch. This unmanaged switch comes with Ethernet TCP/IP protocol. It comes with 8 transmission ports for copper cable. It provides simple connectivity for multiple Ethernet devices and gives customers more options with industrial grade application. This product works at a power consumption of 1.5W and a rated voltage from 12V to 24V DC. It has a removable 3-pin power supply connector . Its dimensions are 38mm (width) x 102mm (height) x 79mm (depth) and weighs 0.150kg. It has shielded connectors which is suitable for small, isolated networks or system with light network traffic and network with low complexity levels. It is CE, UL, RCM, UKCA, EAC certified and conforms to UL 61010 and EN/IEC 61131 standards. It is designed to be mounted on a symmetrical DIN rail. It provides low power consumption and compact footprint. It also provides simple connectivity for multiple Ethernet device. The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.network switch, Modicon Networking, standard unmanaged, 8 ports for copper
Schneider Electric MCSESU083FN0 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Depth
- 79 mm
- Electrical Connection
- removable connector 3 ways power supply
- Ethernet Cabling System
- TF switches
- Height
- 102 mm
- Integrated Connection Type
- shielded RJ45 copper cable
- Local Signalling
- for power supply 1 LED (green) || for data rate (ETH LINK) 1 LED per channel (yellow) || for link status 1 dual colour LED (green/yellow)
- Marking
- CE || UL || RCM
- Maximum Cable Distance Between Devices
- 100 m copper cable
- Mounting Support
- 35 mm symmetrical DIN rail
- Net Weight
- 0.15 kg
- Power Consumption In W
- 1.5 W
- Supply Voltage Limits
- 9.6-32 V DC SELV
- Transmission Support Medium
- twisted shielded pairs cable CAT 5E copper cable
- [Us] Rated Supply Voltage
- 12...24 V
- Width
- 38 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
- Ip Degree Of Protection
- IP30
- Product Certifications
- CE || UL || RCM
- Relative Humidity
- 10-95 % non-condensing
- Standards
- UL 61010-2-201 || EN/IEC 61131-2
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2003018EN
- Environmental Disclosure
- ENVPEP2003018EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Communication Port Protocol
- Ethernet TCP/IP
- Concept
- Transparent Ready
- Maximum Number Of Switches In Cascade
- unlimited
- Port Ethernet
- 10/100BASE-TX - 8 copper cable
- Product Or Component Type
- Ethernet TCP/IP unmanaged switch
- Range Of Product
- Modicon
