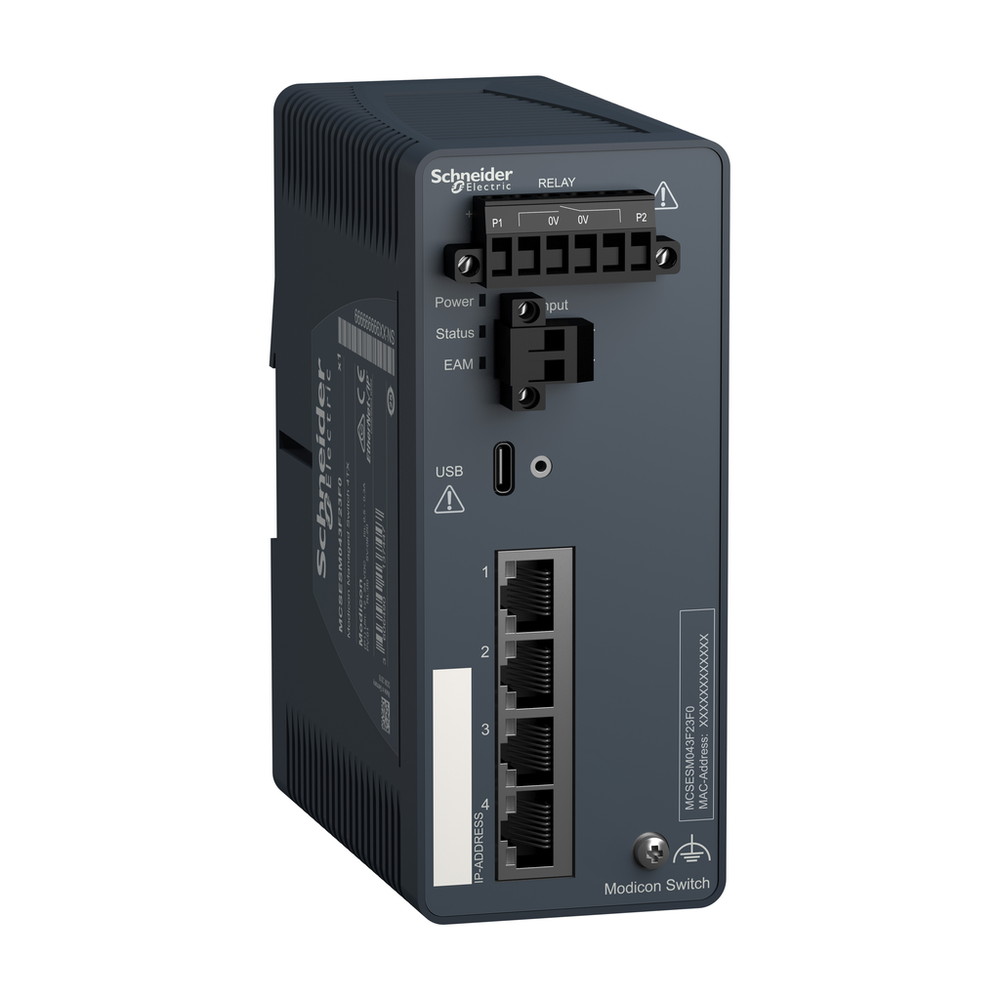

Schneider Electric MCSESM043F23F0
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
network switch, Modicon Networking, managed switch, 4 ports for copper
Schneider Electric MCSESM043F23F0 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Alarm Function
- power supply fault || data link status || switch fault || temperature threshold || redundancy ring fault || incorrect configuration || external memory removed
- Alarm Output
- 1 voltfree contact 1 A
- Communication Service
- TFTP || Quality of Service (QoS) || port monitoring || port mirroring || address conflict detection
- Depth
- 117.6 mm
- Diagnostics Run Time
- signal contact || self test || MAC notification
- Electrical Connection
- removable connector 6 ways power supply
- Ethernet Cabling System
- TF switches
- Ethernet Service
- configuration via web server || VLAN || multicast filtering || data stream control || IGMP Snooping || SNMP-Traps and SYSLOG
- Function Available
- security status || alarms (Traps) || system information || report
- Height
- 142.8 mm
- Integrated Connection Type
- shielded RJ45 copper cable
- Local Signalling
- for P1 P2 power supplies 1 dual colour LED (green/yellow) || for device status 1 dual colour LED (green/red) || for memory key status 1 dual colour LED (green/yellow) || for channel diagnostic 1 dual colour LED (green/yellow)
- Marking
- CE || cULus || RCM
- Maximum Cable Distance Between Devices
- 100 m copper cable
- Maximum Number Of Switches In A Ring
- 50
- Mounting Support
- 35 mm symmetrical DIN rail
- Net Weight
- 0.38 kg
- Power Consumption In W
- 5 W
- Redundancy
- HiPER ring || RSTP || link aggregation || link backup || redundant network coupling || MRP
- Supply Voltage Limits
- 9.6-32 V DC SELV
- Transmission Support Medium
- twisted shielded pairs cable CAT 5E copper cable
- [Us] Rated Supply Voltage
- 12...24 V
- Width
- 57 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
- Ip Degree Of Protection
- IP30
- Product Certifications
- CE || UL || RCM || DNV || ATEX
- Relative Humidity
- 1-95 % non-condensing
- Standards
- UL 61010-2-201 || EN/IEC 61131-2 || EN/IEC 62368-1
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2003018EN
- Environmental Disclosure
- ENVPEP2003018EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Communication Port Protocol
- Ethernet TCP/IP || SSH || HTTP || HTTPS || SNMP || RS232 || SFTP || SCP || LLDP || Telnet || SNTP
- Concept
- Transparent Ready
- Cybersecurity
- port hardening || IP-based port security || MAC-based port security || port-based access control || role-based access control || RADIUS assignment || HTTPS || DoS prevention || VLAN-based ACL || audit trail || SNMP logging || pre-login banner
- Maximum Number Of Switches In Cascade
- unlimited
- Port Ethernet
- 10/100BASE-TX - 4 copper cable
- Product Or Component Type
- Ethernet TCP/IP managed switch
- Range Of Product
- Modicon
