Description

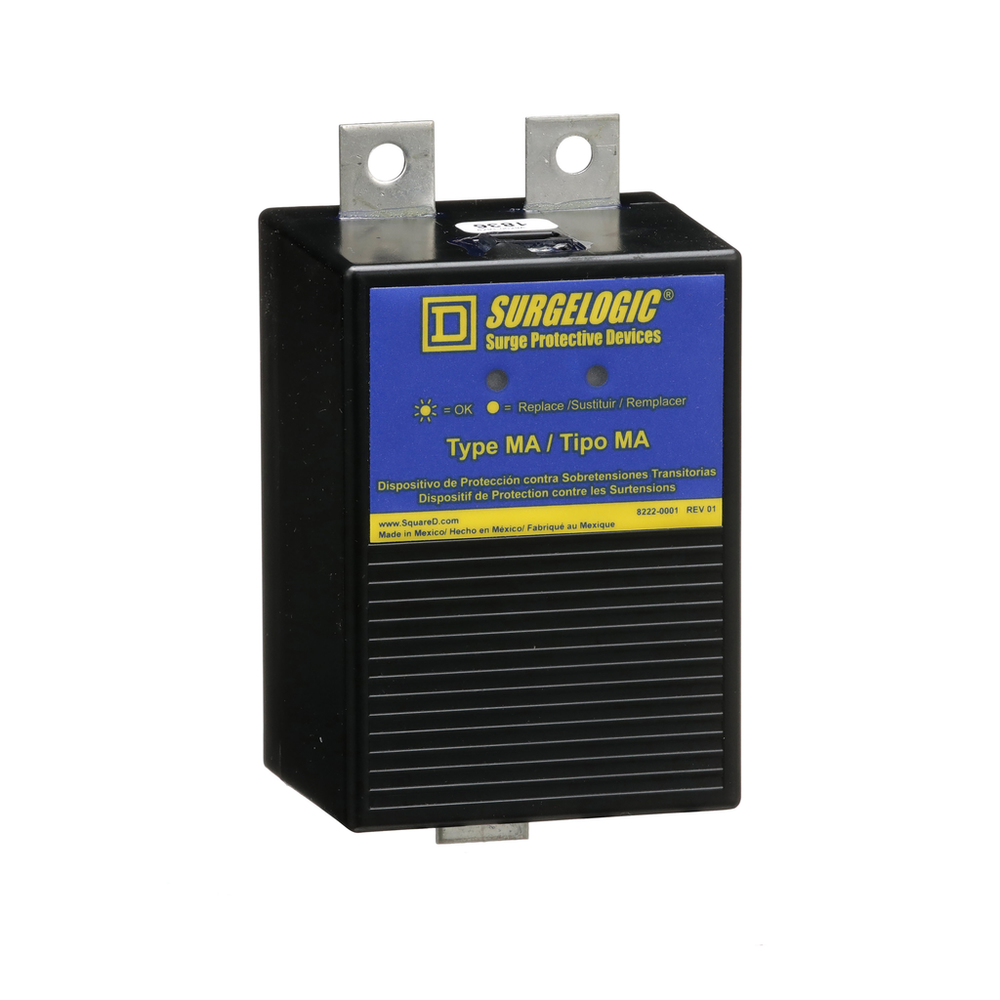

Surgelogic™ EMA and EBA series SPDs, MA8IMA16, offer a full range of externally mounted surge suppression solutions. These units are designed to provide surge suppression from service entrance panels to point-of-use equipment. US and Canadian UL® Listed to the UL 1449 standard. Complies with requirements of NEC® Article 285 and CSA 22.2 No. 8- M1986 as appropriate. Complies with UL 96A 12th Edition Master Label requirements for Lightning Protection Systems.Surge protection module, Surgelogic, MA, 160kA, 600Y/347 VAC, 3 phase, 4 wire, SPD type 2
Schneider Electric MA8IMA16 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- terminals
- Depth
- 68.3 mm
- Height
- 158.8 mm
- Local Signalling
- status LED green normal operation
- Mounting Support
- panel mounting
- Nominal Discharge Current
- 20 kA
- Phase
- 3 phase
- Provided Equipment
- alarm enable/disable switch
- Short-Circuit Protection
- 200 kA
- Surge Current
- 160 kA per phase
- [Uc] Maximum Continuous Operating Voltage
- 420 V
- [Ue] Rated Operational Voltage
- 600Y/347 V AC
- Width
- 82.8 mm
- Wiring Configuration
- 4-wire
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 65-65 °C
- Enclosure Material
- Black Plastic
- Nema Degree Of Protection
- NEMA 2
- Standards
- UL 1449:ed. 4 || UL 1283:ed. 5 || CSA C22.2 No 8:1986 || ANSI/IEEE C62.41 || ANSI/IEEE C62.45 || NEC 285
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
Specifications
- Accessory / Separate Part Category
- replacement part
- Device Short Name
- IMA
- Product Or Component Type
- surge protection module
- Range Of Product
- Surgelogic
