Description

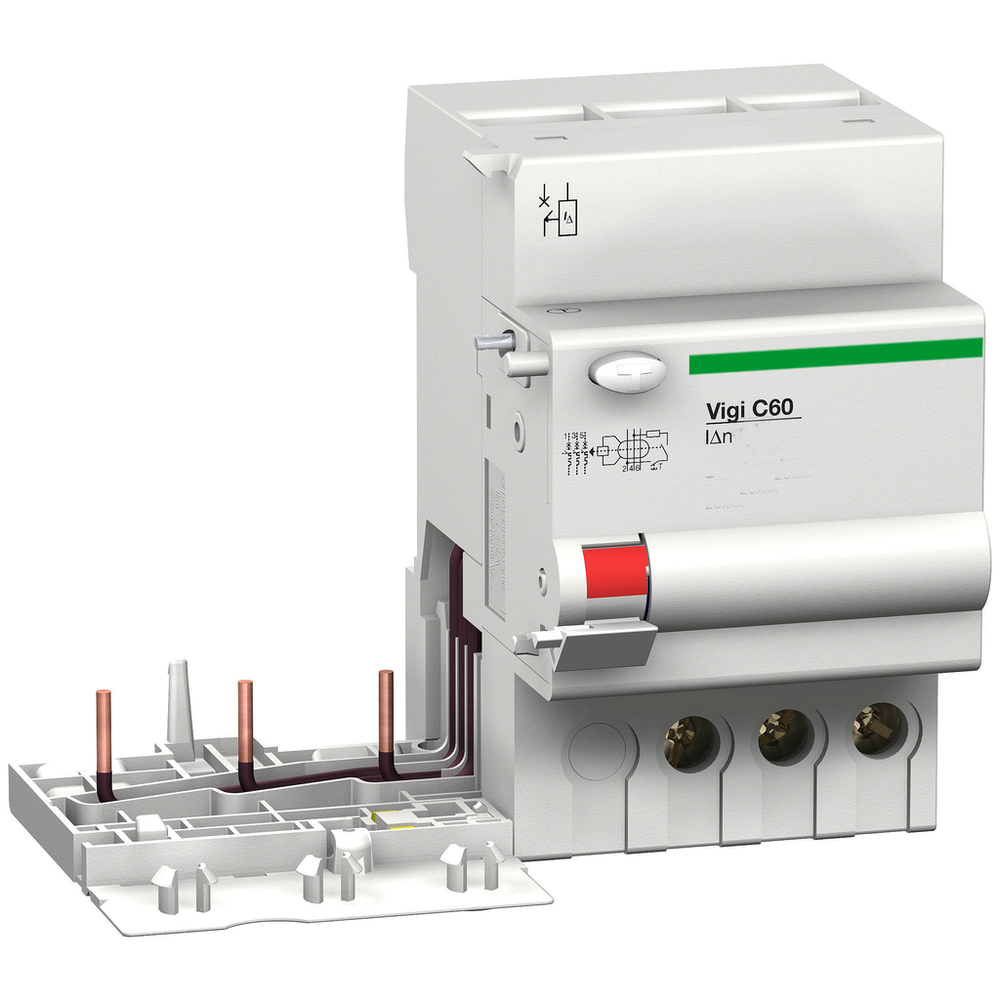

This Vigi C60 is a modular add-on residual current devices. It is a 3P and rated current is 63A. The earth leakage protection class is AC type with a sensitivity of 30mA and a voltage independent technology. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. This product is compliant with EN/IEC 61009-1 and EN/IEC 61009-2-1 standard. The Ue rated operational voltage is 400VAC or 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The pollution degree is 3. It can be mounted on DIN rail. The width in 9mm pitches is 7. The product color is light grey (RAL7035). The dimensions are (W) 63mm x (H) 87mm x (D) 74mm. The weight is 210g. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is -5°C to 60°C. The storage temperature is -40°C to 60°C.Multi9 - Vigi C60 - 3P - 63A - class AC - 230/400 V - 30mA
Schneider Electric M9V11363 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Color
- Gray
- Connections - Terminals
- tunnel type terminal bottom) 1-35 mm² - rigid || tunnel type terminal bottom) 1-25 mm² - flexible || tunnel type terminal bottom) 1-25 mm² - flexible with ferrule
- Depth
- 74 mm
- Electrical Connection To Mcb
- by screws
- Height
- 87 mm
- Local Signalling
- fault indication
- Mounting Mode
- clip-on
- Mounting Support
- DIN rail
- Net Weight
- 210 g
- Residual Current Tripping Technology
- voltage independent
- Tightening Torque
- 3.5-3.5 N.m bottom
- [Uimp] Rated Impulse Withstand Voltage
- 4 kVEN/IEC 61009-1
- [Ui] Rated Insulation Voltage
- 500 V AC 50 Hz EN/IEC 61009-1
- Width
- 63 mm
- Wire Stripping Length
- 14 mm for bottom connection
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -5-60 °C
- Ambient Air Temperature For Storage
- -40-60 °C
- Electromagnetic Compatibility
- 8/20 µs impulse withstand, 250 A EN/IEC 61009-1
- Ip Degree Of Protection
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Pollution Degree
- 3 IEC 61009
- Relative Humidity
- 95-95 % 55-55 °C
- Standards
- EN/IEC 61009-1 || EN/IEC 61009-2-1
- Tropicalisation
- 2 IEC 60068-1
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Environmental Disclosure
- ENVPEP1409017EN
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- 9 Mm Pitches
- 7
- Device Short Name
- Vigi C60
- Earth-Leakage Protection Class
- type AC
- Earth-Leakage Protection Time Delay
- instantaneous
- Earth-Leakage Sensitivity
- 30 mA EN/IEC 61009-1
- Line Rated Current
- 63 A EN/IEC 61009-1
- Network Frequency
- 50 Hz
- Network Type
- AC
- Poles Description
- 3P
- Product Or Component Type
- add-on residual current devices
- Range
- Multi9
- Range Compatibility
- Multi9 (Multi9 C60) C60N || Multi9 (Multi9 C60) C60L || Multi9 (Multi9 C60) C60H || Multi9 (Multi9 C60) C60CTRL
- [Ue] Rated Operational Voltage
- 400/415 V AC 50 Hz
