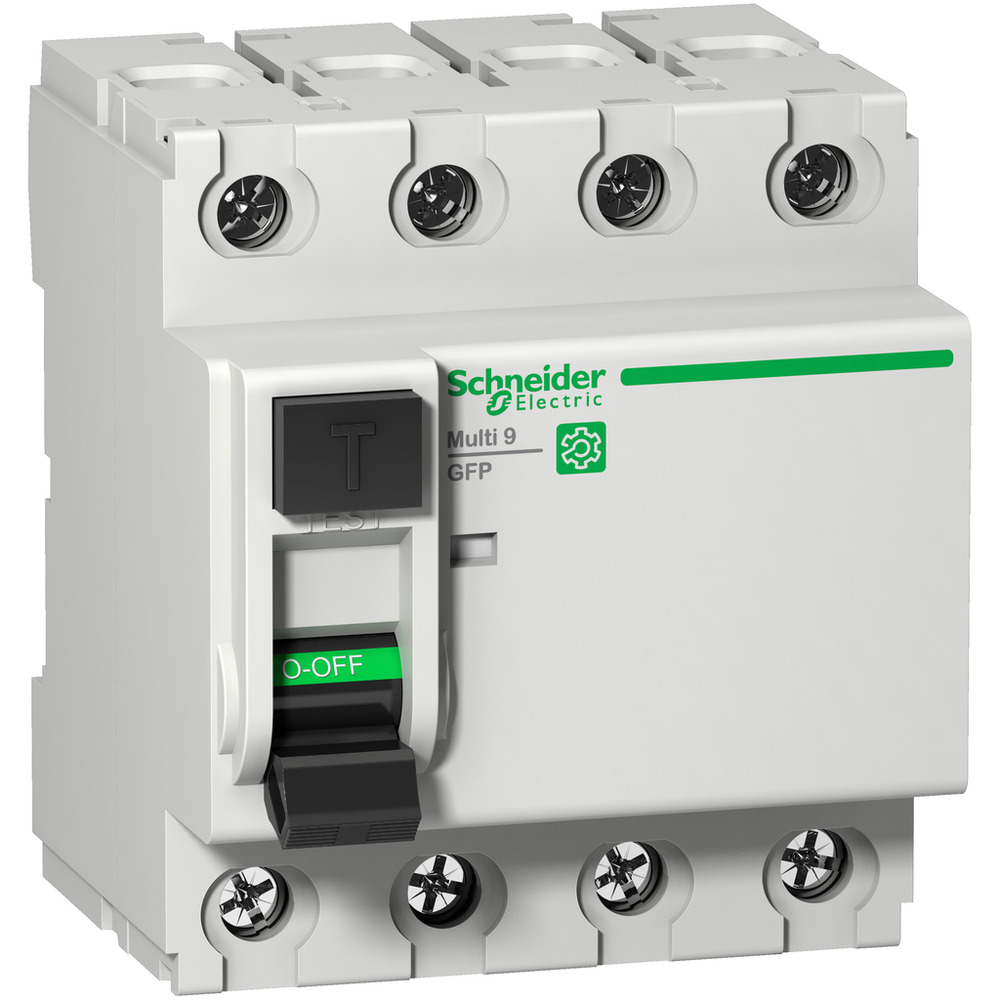

Schneider Electric M9R81463
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is a Multi GFP residual current circuit breaker (RCCB). It is a 4P circuit breaker with 63A In rated current, a sensitivity of 26mA with a A-SI type protection class. It protects persons against electric shock by direct contact. It also protects installations against fire risks. The tripping upon fault is indicated by a red mechanical status indicator on the front panel. The A-SI type offers enhanced immunity to electrical disturbances. This product is dedicated to original equipment manufacturers (OEM) and control panel builders in indisutrial and tertiary buildings. It is compliant with IEC/EN 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. It has a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 8. The product colour is light grey (RAL7035). The dimensions are (W) 72mm x (H) 81mm x (D) 60mm. The weight is 0.45kg. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 70°C.Residual current circuit breaker (RCCB), Multi9 GFP, 4P, 63A, A-SI type, 30mA
Schneider Electric M9R81463 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- 9 Mm Pitches
- 8
- Color
- Gray
- Connections - Terminals
- tunnel type terminals top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible || tunnel type terminals top or bottom) 1-35 mm² AWG 18...AWG 2) - rigid || tunnel type terminals top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible with ferrule
- Contact Position Indicator
- yes
- Control Type
- toggle
- Depth
- 60 mm
- Height
- 81 mm
- Local Signalling
- ON, OFF, fault trip
- Locking Options Description
- padlocking in OFF position
- Mechanical Durability
- 20000 cycles
- Mounting Mode
- clip-on
- Mounting Support
- DIN rail
- Net Weight
- 0.45 kg
- Network Frequency
- 50/60 Hz
- Rated Breaking And Making Capacity
- Idm 1500 A EN/IEC 61008-1
- Rated Conditional Short-Circuit Current
- Inc 10 kA 100 A gG
- Residual Current Tripping Technology
- voltage independent
- Tightening Torque
- 3.5-3.5 N.m top or bottom
- [Ue] Rated Operational Voltage
- 480Y/277 V AC 60 Hz || 415 V AC 50 Hz
- [Uimp] Rated Impulse Withstand Voltage
- 6 kVEN/IEC 61008-1
- [Ui] Rated Insulation Voltage
- 440 V AC 50/60 Hz
- Width
- 72 mm
- Wire Stripping Length
- 14 mm for top or bottom connection
Environment
- Ambient Air Temperature For Operation
- -25-60 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Electromagnetic Compatibility
- 8/20 µs impulse withstand, 3000 A EN/IEC 61008-1
- Ip Degree Of Protection
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Pollution Degree
- 3
- Product Certifications
- IEC || UL
- Relative Humidity
- 95-95 % 55-55 °C
- Standards
- EN/IEC 61008-1 || UL 1053
- Tropicalisation
- 2 IEC 60068-1
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Environmental Disclosure
- ENVPEP2301023EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Application
- distribution
- Device Short Name
- GFP
- Earth-Leakage Protection Class
- type A-SI (Super Immunised)
- Earth-Leakage Protection Time Delay
- instantaneous
- Earth-Leakage Sensitivity
- 26 mA UL 1053 || 30 mA EN/IEC 61008-1
- Line Rated Current
- 63 A 40 °C EN/IEC 61008-1
- Network Type
- AC
- Neutral Position
- left
- Poles Description
- 4P
- Product Name
- Multi9 GFP
- Product Or Component Type
- residual current circuit breaker (RCCB)
- Range
- Multi9
- Utilisation Category
- AC-23A EN/IEC 61008-1
