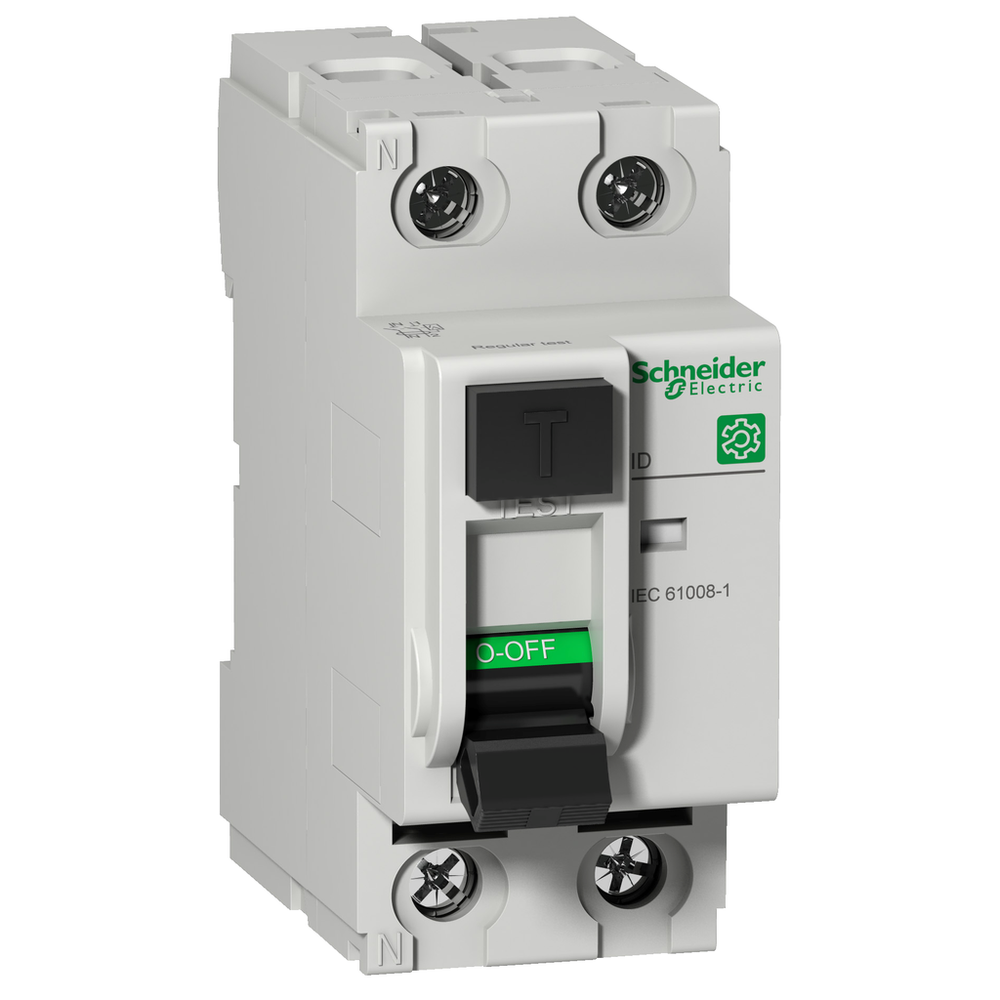

Schneider Electric M9R11240
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is a Multi ID residual current circuit breaker (RCCB). It is a 2P circuit breaker with 40A In rated current, a sensitivity of 30mA with a AC type protection class. This product protects against electrical shock by direct or indirect contact and fire hazards. The tripping upon fault is indicated by a red mechanical status indicator on the front panel. This product is dedicated to original equipment manufacturers (OEM) and control panel builders in indisutrial and tertiary buildings. It is compliant with IEC/EN 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 400A. The (Inc/IΔc) conditional rated short circuit current is 10kA. The mechanical endurance is going up to 20000 cycles and electrical endurance going up to 2000 cycles. The Ue operational voltage is 220VAC to 240VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 73mm. The weight is 0.23kg. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. The operating temperature is from -5°C to 40°C. The storage temperature is from -40°C to 60°C.Residual current circuit breaker (RCCB), Multi9 ID, 2P, 40A, AC type, 30mA
Schneider Electric M9R11240 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- 9 Mm Pitches
- 4
- Color
- Gray
- Connections - Terminals
- tunnel type terminal top or bottom) 1-35 mm² - rigid || tunnel type terminal top or bottom) 1-25 mm² - flexible || tunnel type terminal top or bottom) 3 16-16 mm² - rigid || tunnel type terminal top or bottom) 3 10-10 mm² - flexible || tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule
- Contact Position Indicator
- yes
- Control Type
- toggle
- Depth
- 73 mm
- Electrical Durability
- 2000 cycles
- Height
- 81 mm
- Local Signalling
- ON, OFF, fault trip
- Locking Options Description
- padlocking device
- Mechanical Durability
- 20000 cycles
- Mounting Mode
- clip-on
- Mounting Support
- DIN rail
- Net Weight
- 0.23 kg
- Network Frequency
- 50 Hz
- Rated Breaking And Making Capacity
- Idm 400 A EN/IEC 61008-1
- Rated Conditional Short-Circuit Current
- Inc 10 kA
- Residual Current Tripping Technology
- voltage independent
- Surge Current
- 250 A
- Tightening Torque
- 3.5-3.5 N.m top or bottom
- [Ue] Rated Operational Voltage
- 220...240 V AC 50 Hz
- [Uimp] Rated Impulse Withstand Voltage
- 6 kVEN/IEC 61008-1
- [Ui] Rated Insulation Voltage
- 440 V AC 50 Hz EN/IEC 61008-1
- Width
- 36 mm
- Wire Stripping Length
- 15 mm for top or bottom connection
Environment
- Ambient Air Temperature For Operation
- -5-40 °C
- Ambient Air Temperature For Storage
- -40-60 °C
- Electromagnetic Compatibility
- 8/20 µs impulse withstand, 250 A EN/IEC 61008-1
- Ip Degree Of Protection
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Pollution Degree
- 3
- Product Certifications
- CE
- Relative Humidity
- 95-95 % 55-55 °C
- Standards
- EN/IEC 61008-1
- Tropicalisation
- 2 IEC 60068-1
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP2301023EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Application
- distribution
- Device Short Name
- ID
- Earth-Leakage Protection Class
- type AC
- Earth-Leakage Protection Time Delay
- instantaneous
- Earth-Leakage Sensitivity
- 30 mA
- Line Rated Current
- 40 A
- Network Type
- AC
- Neutral Position
- left
- Poles Description
- 2P
- Product Name
- Multi9 ID
- Product Or Component Type
- residual current circuit breaker (RCCB)
- Range
- Multi9
