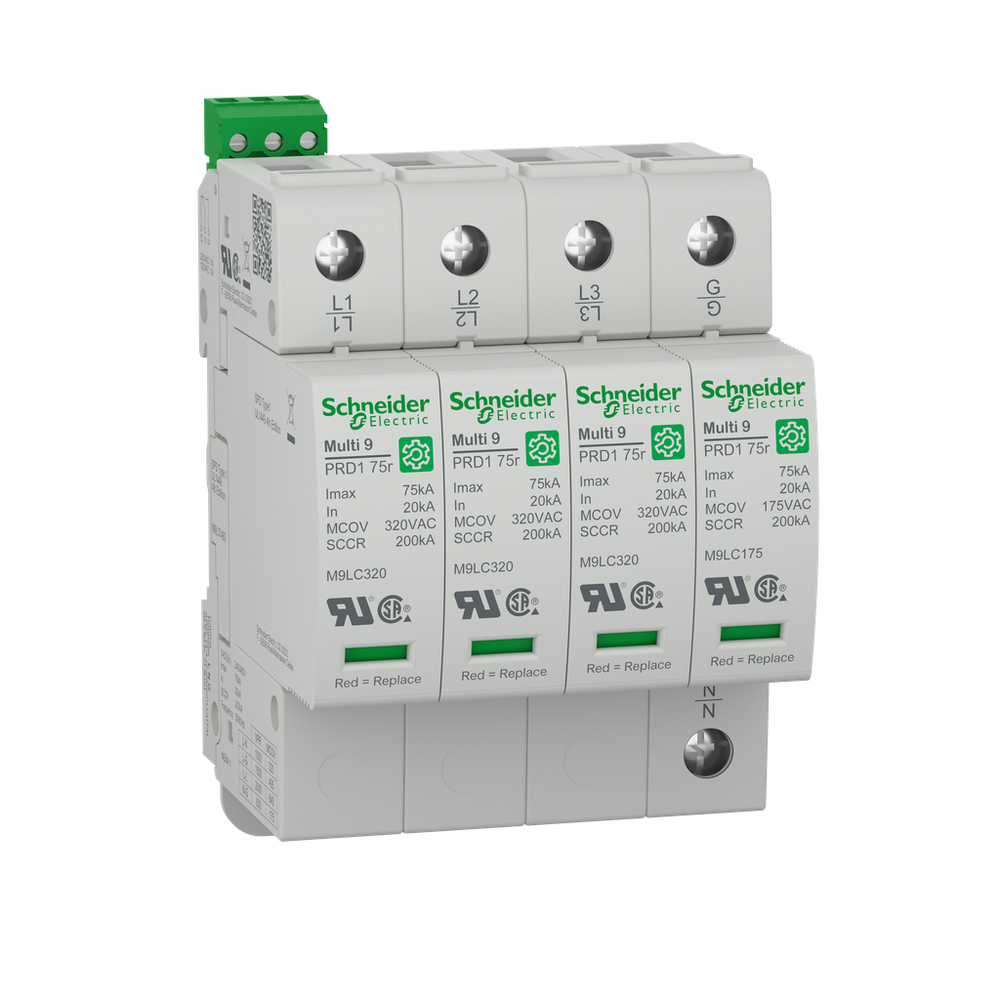

Schneider Electric M9L37480
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Multi9 PRD1 product is a surge arrester. it can be installed in a variety of installations including service entrance, branch panels and control panel environments. It is connected to electrical distribution network. Its surge arrester class type is type 1. The Imax maximum discharge current is 75kA. It can be associated with a 30A and C curve tripping circuit breaker. The Uc maximum continuous operating voltage is 595VAC in common mode (L/N). The In nominal discharge current is 20kA (L/PE). The Up maximum voltage protection level is 1000V (L/N) and 2000V (L/L). It can be mounted on DIN rail for modular installation. Its width is 8 pitches of 9mm. The degree of protection is NEMA 1. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product complies with UL 1449 standard.surge arrester, Multi9 PRD1 75r, 4P, 277/480 V
Schneider Electric M9L37480 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- 9 Mm Pitches
- 8
- Color
- Gray RAL 7035)
- Connections - Terminals
- tunnel type terminal 6-35 mm² AWG 10...AWG 2) - rigid || tunnel type terminal 6-25 mm² AWG 10...AWG 4) - flexible || tunnel type terminal dry contacts) 0.5-1.5 mm²
- Depth
- 71.4 mm
- Disconnector Device Type
- associated circuit breaker 30 A C 10 kA
- Height
- 91.7 mm
- [Iimp] Impulse Current
- 75 kA
- Local Signalling
- green mechanical indicator operating || red mechanical indicator end of life
- Maximum Discharge Current
- 75 kA
- Maximum [Up] Voltage Protection Level
- common mode <1500 V L/PE || common mode <1000 V L/N || differential mode <2000 V L/L || common mode <600 V N/PE
- Mounting Mode
- clip-on
- Mounting Support
- DIN rail
- Net Weight
- 703 g
- Nominal Discharge Current
- common mode 20 kA L/PE) || common mode 20 kA N/PE) || differential mode 20 kA L/N)
- Response Time
- < 25 ns
- Short-Circuit Withstand
- 200 kA
- Surge Arrester Class Type
- type 1
- Surge Arrester Technology
- MOV
- Tightening Torque
- 3-3 N.m L/N || 3-3 N.m PE
- [Uc] Maximum Continuous Operating Voltage
- common mode 495 V AC L/PE || common mode 320 V AC L/N || differential mode 640 V AC L/L || common mode 175 V AC N/PE
- Width
- 70 mm
- Wire Stripping Length
- 10 mm for L/N connection || 10 mm for PE connection || 6 mm for dry contacts connection
- Wiring Configuration
- 5-wire
Environment
- Ambient Air Temperature For Operation
- -25-60 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Ip Degree Of Protection
- built-in NEMA 1
- Operating Altitude
- 6561.68 ft (2000 m)
- Pollution Degree
- 3
- Relative Humidity
- 0-95 %
- Standards
- UL 1449:ed. 4
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- PRD1 75r
- Poles Description
- 4P
- Product Name
- Multi9 PRD1
- Product Or Component Type
- surge arrester
- Range
- Multi9
- Remote Signalling
- with
- Signal Contacts Composition
- 1 SD (1 C/O)
- Surge Arrester Type
- electrical distribution network
