Description

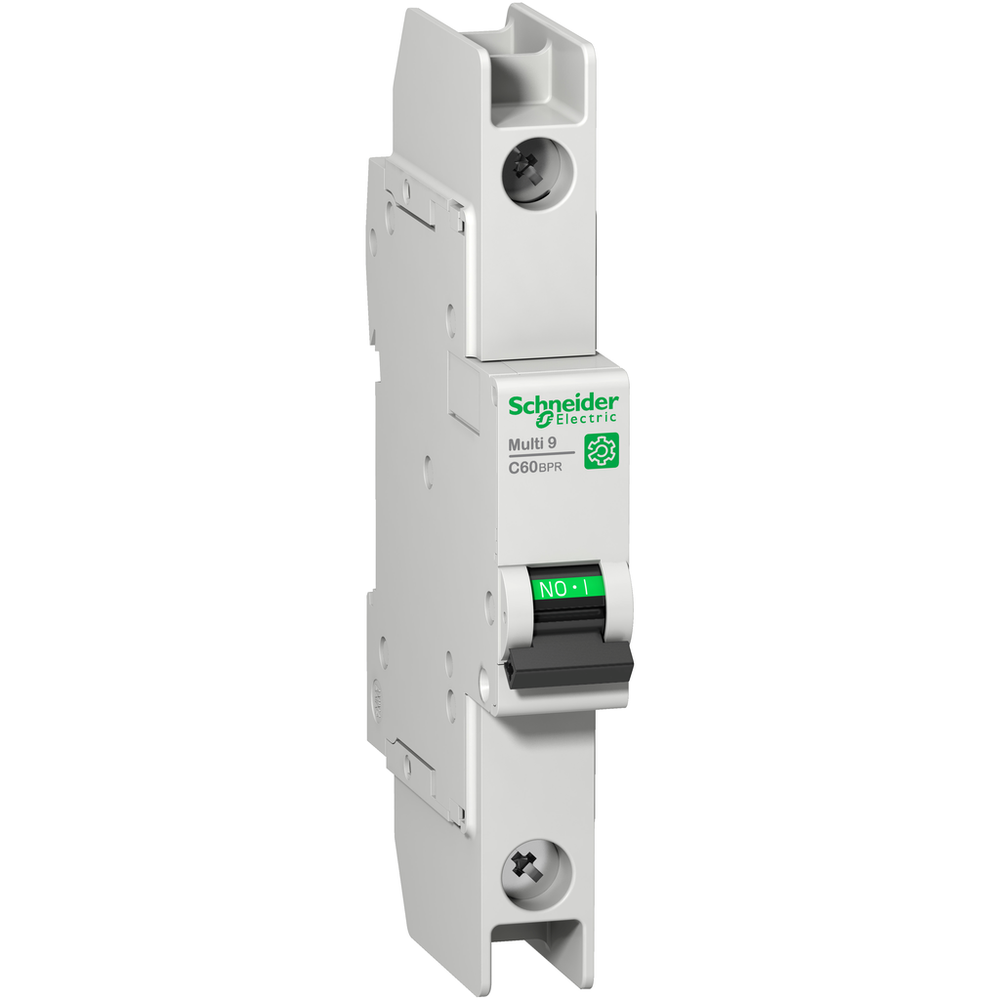

This Multi9 C60BPR is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 45A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 127mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.Miniature circuit breaker (MCB), Multi9 C60BPR, 1P, 45A, C curve, 10kA (UL489), 10kA (IEC/EN 60947-2)
Schneider Electric M9F52145 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- 9 Mm Pitches
- 2
- Color
- Gray
- Connections - Terminals
- ring terminal top or bottom)
- Contact Position Indicator
- yes
- Control Type
- toggle
- Depth
- 72 mm
- Earth-Leakage Protection
- without
- Electrical Durability
- 10000 cycles
- Height
- 127 mm
- [Ics] Rated Service Breaking Capacity
- 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC || 2.25 kA 75 % GB 14048.2 - 415 V AC || 7.5 kA 75 % GB 14048.2 - 240 V AC || 15 kA 75 % GB 14048.2 - 60 V DC || 15 kA 75 % EN/IEC 60947-2 - 60 V DC
- Local Signalling
- ON/OFF indication
- Magnetic Tripping Limit
- 8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC
- Mechanical Durability
- 20000 cycles
- Mounting Mode
- clip-on
- Mounting Support
- DIN rail
- Provision For Padlocking
- padlockable
- Tightening Torque
- 2-2 N.m top or bottom
- [Ue] Rated Operational Voltage
- 240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 60 V DC
- [Uimp] Rated Impulse Withstand Voltage
- 6 kVEN/IEC 60947-2
- [Ui] Rated Insulation Voltage
- 500 V AC EN/IEC 60947-2
- Width
- 18 mm
Environment
- Ambient Air Temperature For Operation
- -30-70 °C
- Ambient Air Temperature For Storage
- -40-80 °C
- Ip Degree Of Protection
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Overvoltage Category
- IV
- Pollution Degree
- 3 EN/IEC 60947-2
- Relative Humidity
- 95-95 % 55-55 °C
- Tropicalisation
- 2 IEC 60068-1
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Environmental Disclosure
- ENVPEP1304004EN
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free product
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Breaking Capacity
- 3 kA Icu 415 V AC EN/IEC 60947-2 || 10 kA Icu 240 V AC EN/IEC 60947-2 || 20 kA Icu 60 V DC EN/IEC 60947-2 || 3 kA Icu 415 V AC GB 14048.2 || 10 kA Icu 240 V AC GB 14048.2 || 20 kA Icu 60 V DC GB 14048.2 || 10 kA AIR 60 V DC UL 489 || 10 kA AIR 240 V AC UL 489 || 10 kA AIR 120 V AC UL 489 || 10 kA AIR 60 V DC CSA C22.2 No 5 || 10 kA AIR 240 V AC CSA C22.2 No 5 || 10 kA AIR 120 V AC CSA C22.2 No 5
- Curve Code
- C
- Device Application
- distribution
- Device Short Name
- C60BPR
- Line Rated Current
- 45 A 25 °C EN/IEC 60947-2
- Network Type
- DC || AC
- Number Of Protected Poles
- 1
- Poles Description
- 1P
- Product Certifications
- IEC || CCC || CSA || UL
- Product Name
- Multi9 C60
- Product Or Component Type
- miniature circuit-breaker
- Range
- Multi9
- Standards
- EN/IEC 60947-2 || GB 14048.2 || UL 489 || CSA C22.2 No 5
- Suitability For Isolation
- yes EN/IEC 60947-2
- Trip Unit Technology
- thermal-magnetic
