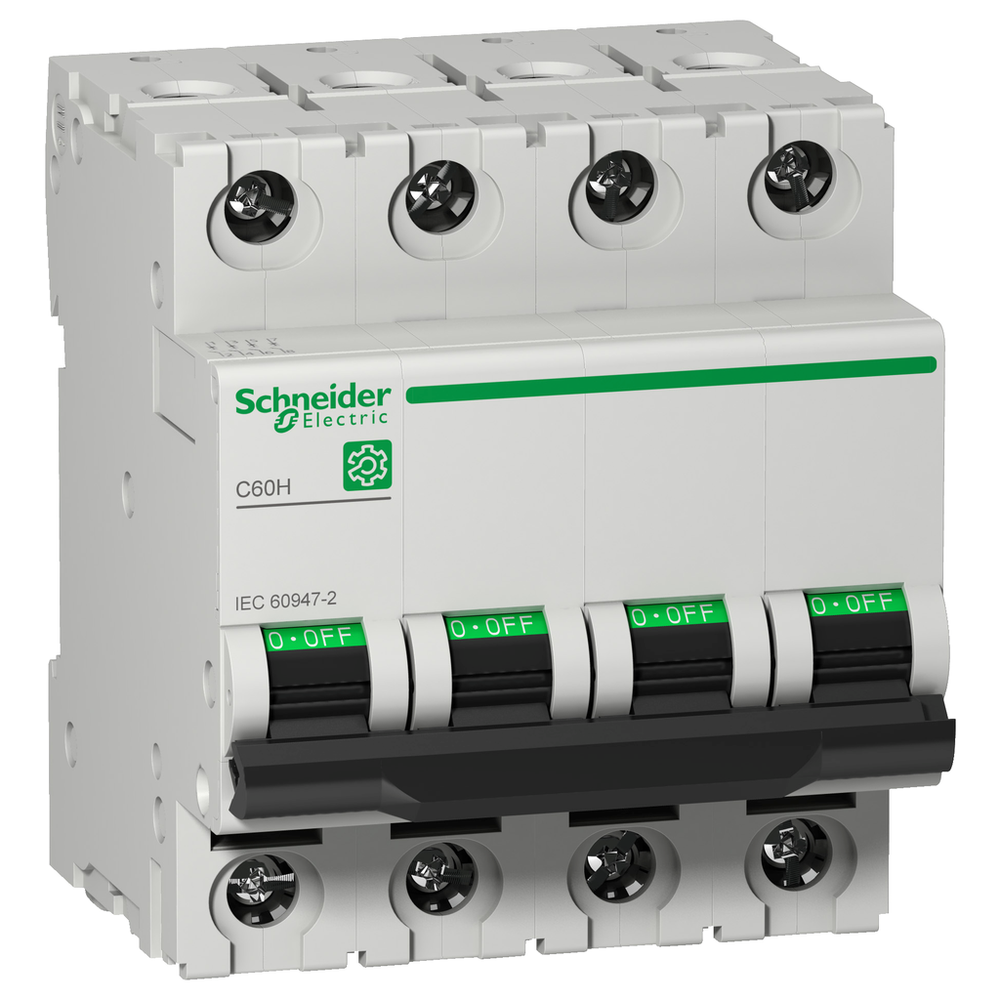

Schneider Electric M9F14425
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Multi9 C60H is a low voltage miniature circuit breaker (MCB). It is a 4P circuit breaker with 4 protected poles, 25A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 15kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 8 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 72mm x (H) 81mm x (D) 72mm. The weight is 0.48kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.Miniature circuit breaker (MCB), Multi9 C60H, 4P, 25A, C curve, 15kA (IEC/EN 60947-2)
Schneider Electric M9F14425 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- 9 Mm Pitches
- 8
- Color
- Gray
- Connections - Terminals
- tunnel type terminal top or bottom) 1-25 mm² - rigid || tunnel type terminal top or bottom) 1-25 mm² - flexible || tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule
- Contact Position Indicator
- yes
- Control Type
- toggle
- Depth
- 72 mm
- Earth-Leakage Protection
- separate block
- Electrical Durability
- 10000 cycles
- Height
- 81 mm
- [Ics] Rated Service Breaking Capacity
- 15 kA 50 % EN/IEC 60947-2 - 240 V AC 50/60 Hz || 7.5 kA 50 % EN/IEC 60947-2 - 415 V AC 50/60 Hz || 5 kA 50 % EN/IEC 60947-2 - 440 V AC 50/60 Hz || 50 kA 100 % EN/IEC 60947-2 - <= 250 V DC
- Local Signalling
- ON/OFF indication
- Magnetic Tripping Limit
- 8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC
- Mechanical Durability
- 20000 cycles
- Mounting Mode
- clip-on
- Mounting Support
- DIN rail
- Net Weight
- 0.48 kg
- Network Frequency
- 50/60 Hz
- Provision For Padlocking
- padlockable
- Tightening Torque
- 2-2 N.m top or bottom
- [Ue] Rated Operational Voltage
- 240 V AC 50/60 Hz between phases || 415 V AC 50/60 Hz between phases || 440 V AC 50/60 Hz between phases || <= 250 V DC
- [Uimp] Rated Impulse Withstand Voltage
- 6 kVEN/IEC 60947-2
- [Ui] Rated Insulation Voltage
- 500 V AC 50/60 Hz EN/IEC 60947-2
- Width
- 72 mm
- Wire Stripping Length
- 14 mm for top or bottom connection
Environment
- Ambient Air Temperature For Operation
- -30-70 °C
- Ambient Air Temperature For Storage
- -40-80 °C
- Heat Dissipation
- 12.4-12.4 W 415 V - 25 A
- Ip Degree Of Protection
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Overvoltage Category
- IV
- Pollution Degree
- 3 EN/IEC 60947-2
- Relative Humidity
- 95-95 % 55-55 °C
- Tropicalisation
- 2 IEC 60068-1
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Environmental Disclosure
- ENVPEP1304004EN
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free plastic parts & cables product
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Breaking Capacity
- 50 kA Icu <= 250 V DC EN/IEC 60947-2 || 30 kA Icu 240 V AC 50/60 Hz between phases EN/IEC 60947-2 || 15 kA Icu 415 V AC 50/60 Hz between phases EN/IEC 60947-2 || 10 kA Icu 440 V AC 50/60 Hz between phases EN/IEC 60947-2
- Curve Code
- C
- Device Application
- distribution
- Device Short Name
- C60H
- Line Rated Current
- 25 A 50 °C EN/IEC 60947-2
- Network Type
- AC || DC
- Number Of Protected Poles
- 4
- Poles Description
- 4P
- Product Certifications
- EAC || CCC
- Product Name
- Multi9 C60
- Product Or Component Type
- miniature circuit-breaker
- Range
- Multi9
- Standards
- EN/IEC 60947-2
- Suitability For Isolation
- yes EN/IEC 60947-2
- Trip Unit Technology
- thermal-magnetic
- Utilisation Category
- category A EN/IEC 60947-2
