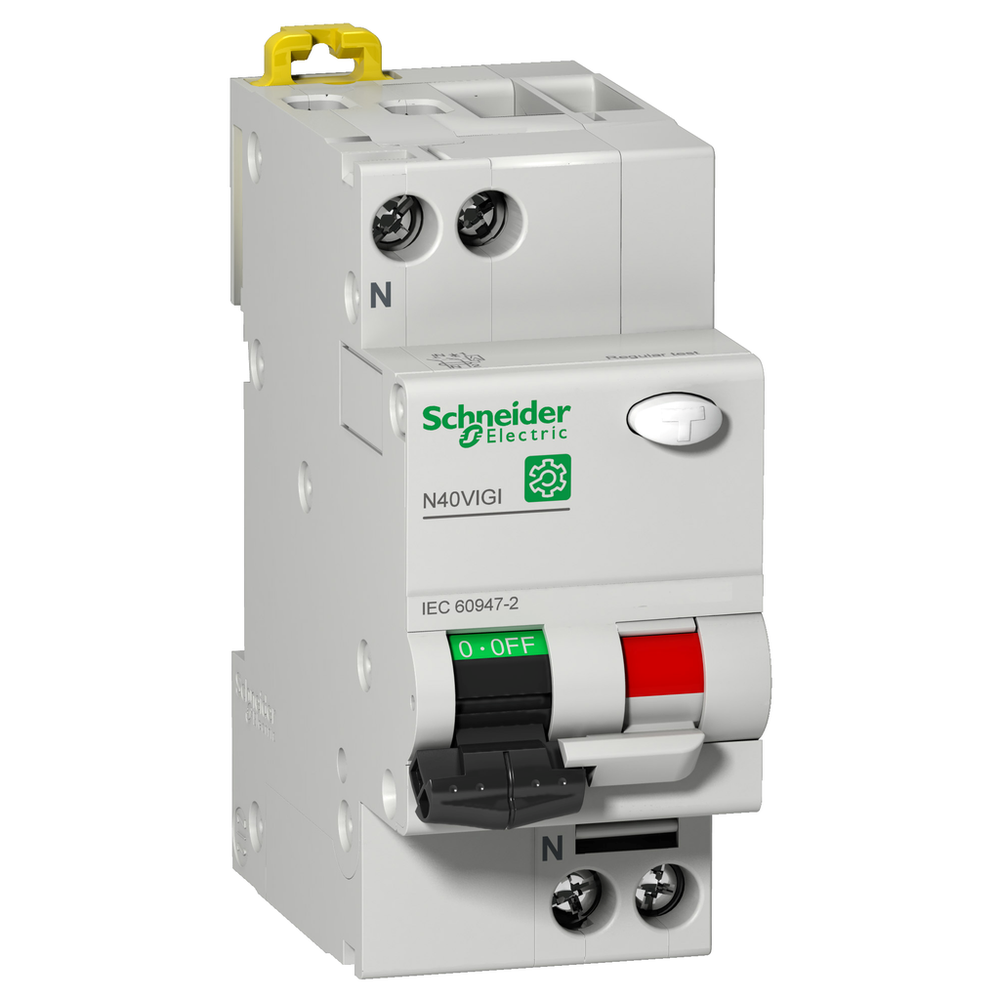

Schneider Electric M9D14610
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Multi9 N40 Vigi is a modular residual current breaker with overcurrent protection (RCBO). It is a 1P+N circuit breaker with 1 protected pole, 10A In rated current and C tripping curve. The earth leakage protection class is AC type with a sensitivity of 300mA. The earth-leakage protection time delay is instantaneous. The Icu rated short circuit breaking capacity is up to 6kA according EN/IEC 60947-2 standard. The Icn rated short circuit breaking capacity is up to 6000 A according EN/IEC 61009-1 standard. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. A green strip on the toggle guarantees opening of all the poles in safety conditions. This product is compliant with EN/IEC 61009-1 and EN/IEC 60947-2 standards. It has an electrical endurance going up to 20000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 400VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product color is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 70mm. The weight is 125g. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 60°C. The storage temperature is from -30°C to 70°C.Residual current breaker with overcur. prot. (RCBO), Multi9 N40 Vigi, 1P+N, 10A, C curve, 6000A/6kA, AC type, 300mA
Schneider Electric M9D14610 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- 9 Mm Pitches
- 4
- Color
- Gray
- Connection Pitch
- 9 mm between phase and neutral
- Connections - Terminals
- tunnel type terminal top or bottom) 0.75-16 mm² - rigid || tunnel type terminal top or bottom) 0.33-10 mm² - flexible || tunnel type terminal top or bottom) 0.33-10 mm² - flexible with ferrule
- Contact Position Indicator
- yes
- Control Type
- toggle
- Depth
- 70 mm
- Earth-Leakage Protection
- integrated
- Electrical Durability
- 20000 cycles
- Height
- 81 mm
- [Ics] Rated Service Breaking Capacity
- 4.5 kA 75 % EN/IEC 60947-2 - 240 V AC 50 Hz
- Limitation Class
- 3 EN/IEC 61009-1
- Local Signalling
- ON/OFF indication || fault indication
- Magnetic Tripping Limit
- 8.5 x In +/- 20 % AC
- Mechanical Durability
- 20000 cycles
- Mounting Mode
- clip-on
- Mounting Support
- DIN rail
- Net Weight
- 0.125 kg
- Network Frequency
- 50 Hz
- Provision For Padlocking
- padlockable
- Rated Breaking And Making Capacity
- Idm 4500 A 240 V AC 50 Hz EN/IEC 61009-1
- Residual Current Tripping Technology
- voltage independent
- Surge Current
- 250 A
- Tightening Torque
- 2-2 N.m top or bottom
- [Ue] Rated Operational Voltage
- 240 V AC 50 Hz
- [Uimp] Rated Impulse Withstand Voltage
- 4 kVEN/IEC 60947-2
- [Ui] Rated Insulation Voltage
- 400 V AC 50 Hz EN/IEC 60947-2
- Width
- 36 mm
- Wire Stripping Length
- 13 mm for top or bottom connection
Environment
- Ambient Air Temperature For Operation
- -5-60 °C
- Ambient Air Temperature For Storage
- -30-70 °C
- Electromagnetic Compatibility
- 8/20 µs impulse withstand, 250 A
- Ip Degree Of Protection
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Overvoltage Category
- IV
- Pollution Degree
- 3 EN/IEC 60947-2
- Relative Humidity
- 95-95 % 55-55 °C
- Standards
- EN/IEC 61009-1 || EN/IEC 60947-2
- Tropicalisation
- 2 IEC 60068-1
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI2306032
- Environmental Disclosure
- ENVPEP2306032EN
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Breaking Capacity
- 6 kA Icu 240 V AC 50 Hz EN/IEC 60947-2 || 6000 A Icn 240 V AC 50 Hz EN/IEC 61009-1
- Curve Code
- C
- Device Application
- distribution
- Device Short Name
- N40 Vigi
- Earth-Leakage Protection Class
- type AC
- Earth-Leakage Protection Time Delay
- instantaneous
- Earth-Leakage Sensitivity
- 300 mA
- Line Rated Current
- 10 A 50 °C EN/IEC 60947-2
- Network Type
- AC
- Neutral Position
- left
- Number Of Protected Poles
- 1
- Poles Description
- 1P + N
- Product Name
- Multi9 N40 Vigi
- Product Or Component Type
- residual current breaker with overcurrent protection (RCBO)
- Range
- Multi9
- Suitability For Isolation
- yes EN/IEC 60947-2
- Trip Unit Technology
- thermal-magnetic
- Utilisation Category
- category A EN/IEC 60947-2
