Description

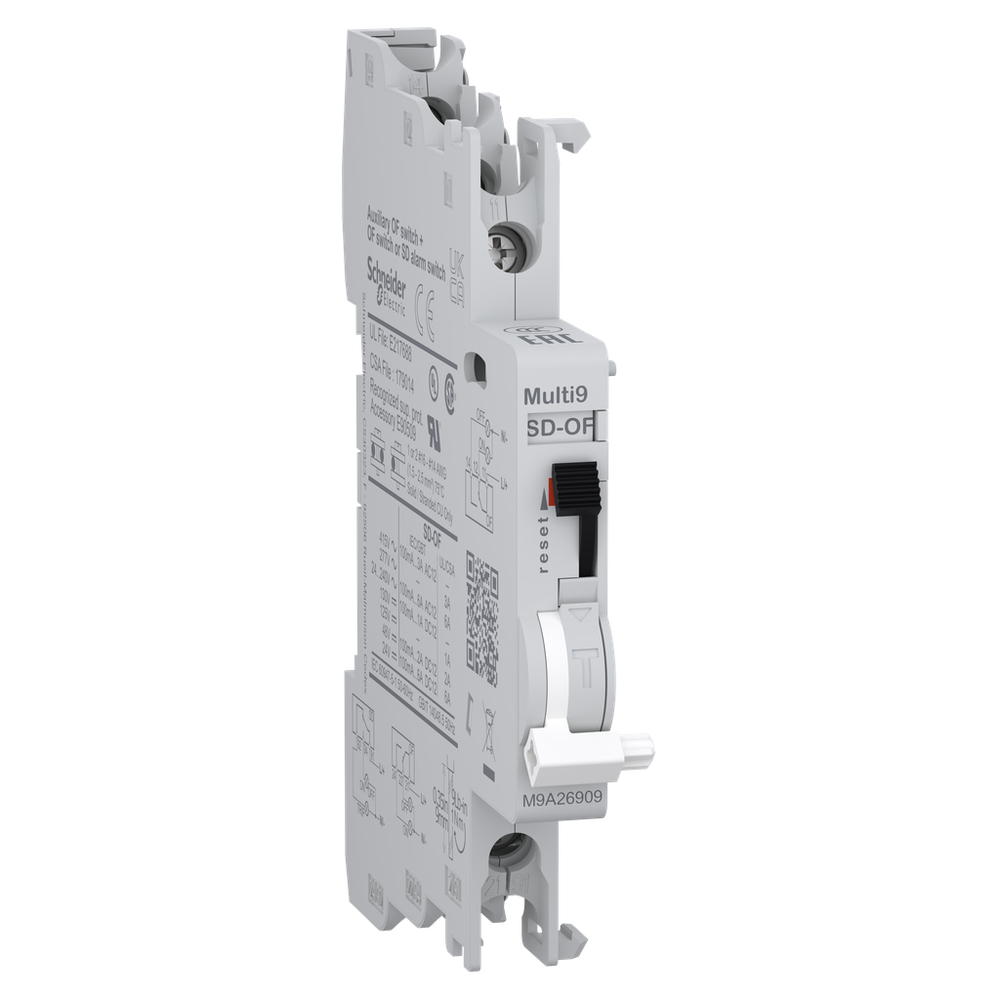

Auxiliary contact, Multi9 M9A, OF/SD+OF, 2 C/O, 100mA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, top and bottom connection
Schneider Electric M9A26909 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Color
- Gray
- Comb Busbar And Distribution Block Compatibility
- NO
- Connections - Terminals
- screw clamp terminal top and bottom) 1 2.5-2.5 mm² - rigid || screw clamp terminal top and bottom) 2 1.5-1.5 mm² - rigid
- Depth
- 68 mm
- Height
- 90 mm
- Local Signalling
- mechanical indicator
- Mounting Location
- left side of circuit-breaker
- Mounting Mode
- clip-on
- Mounting Support
- DIN rail
- Net Weight
- 38 g
- Tightening Torque
- 1-1 N.m top and bottom
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV
- [Ui] Rated Insulation Voltage
- 500 V
- Width
- 9 mm
- Wire Stripping Length
- 9 mm
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Ip Degree Of Protection
- IP20
- Pollution Degree
- 3
- Product Certifications
- CE || UKCA || UL || CSA
- Quality Labels
- EAC || CCC
- Standards
- EN/IEC 60947-5-1 || GB/T 14048.5 || GB/T 14048.17 || UL 1077 || UL 489 || CSA C22.2 No 0-10 || CSA C22.2 No 5-13 || CSA C22.2 No 235-04 || CSA C22.2 No 65-03
- Tropicalisation
- 2
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Circularity Profile
- ENVEOLI2206016
- Environmental Disclosure
- ENVPEP2206016EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- 9 Mm Pitches
- 1
- Device Short Name
- OF/SD+OF
- Line Rated Current
- 0.1-6 A at 24...250 V, AC 50/60 Hz || 0.1-6 A at 24...240 V, AC 50/60 Hz || 0.1-6 A at 24 V, DC || 0.1-2 A at 48 V, DC || 0.1-1.5 A at 60 V, DC || 0.1-1 A at 110 V, DC || 0.1-1 A at 130 V, DC || 0.1-3 A at 277 V, AC 50/60 Hz || 0.1-3 A at 415 V, AC 50/60 Hz
- Product Or Component Type
- double OC or fault contact
- Range
- Multi9
- Signal Contacts Composition
- 2 C/O
