Schneider Electric LZ1H2X43BD
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

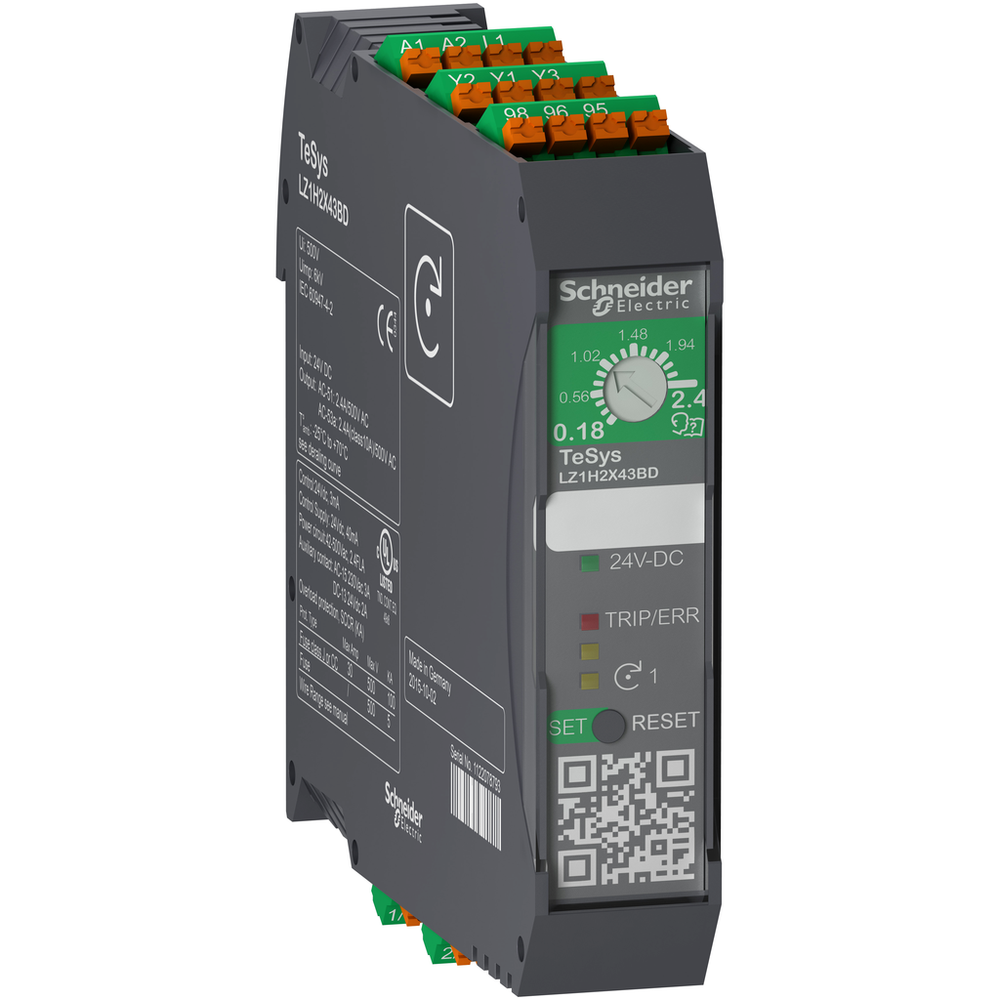

TeSys H ultra compact direct starter, 3 poles, 2.4A/500V AC-53, for control and protection of 3-phase motors up to 0.75kW@400V (1HP@480V). The hybrid technology used for power contacts procures ultra compactness (22.5mm width) as well as an extended electrical durability up to 30 million cycles AC-53. It provides control for one direction of rotation, an adjustable motor current 0.18-2.4A, class 10A thermal overload protection with auto/manual/remote reset, phase loss and phase unbalanced protection, stall and jam motor protection. To be supplied with 24V DC, it provides logic inputs for ON/OFF motor running and remote reset after thermal tripping, 1C/O contact relay for fault indication, LED status on front face for indication of tripping and motor running. DIN rail mounting, spring terminals for control and power, it can be used without derating for ambient temperatures from -25 to 70°C. Multi standards certified (IEC, UL, CCC), Green Premium compliant (RoHS/REACh).Ultra compact starter, TeSys Hybrid, 3P, 500VAC, 0.75kW at 400V, 24VDC, Spring terminal
Schneider Electric LZ1H2X43BD is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Auxiliary Contact Composition
- 1 C/O fault signalling
- Certifications
- CE || cULus
- Connections - Terminals
- spring clamp terminals 1 0.2-2.5 mm² rigid || spring clamp terminals 1 0.25-2.5 mm² flexible - with cable end || spring clamp terminals 1 0.2-2.5 mm² flexible - without cable end
- Control Circuit Voltage Limits
- 19.2...30 V DC
- Current Consumption
- <= 40 mA 24 V DC
- Depth
- 114.5 mm
- Electrical Durability
- 30 Mcycles
- Height
- 99 mm
- Maximum Operating Rate
- 120 cyc/mn AC-51 50 % || 6 cyc/mn AC-53A 50 %
- Mounting Mode
- by clips
- Mounting Support
- DIN rail
- Net Weight
- 212 g
- Pollution Degree
- 2
- Reset
- manual || automatic reset || electrical reset
- Standards
- UL 60947-4-1 || IEC 60947-4-2
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV
- [Ui] Rated Insulation Voltage
- 500 V AC 50/60 Hz
- Width
- 22.5 mm
Environment
- Ambient Air Temperature For Operation
- -25-70 °C without derating
- Ambient Air Temperature For Storage
- -40-80 °C
- Ip Degree Of Protection
- IP20
- Protective Treatment
- TC
Offer Sustainability
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1509013EN
- Environmental Disclosure
- ENVPEP1509013EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- LZ1H
- [Ie] Rated Operational Current
- 2.4 A 500 V AC-51 || 2.4 A 500 V AC-53A || 2.4 A 500 V AC-51 mounting side by side || 2.4 A 500 V AC-53A mounting side by side
- Maximum Horse Power Rating
- 0.5 hp 200 V AC || 0.5 hp 230 V AC || 1 hp 460 V AC
- Motor Power Kw
- 0.37 kW 220 V AC 0.65 || 0.37 kW 230 V AC 0.65 || 0.75 kW 380 V AC 0.65 || 0.75 kW 400 V AC 0.65 || 0.75 kW 415 V AC 0.65 || 0.75 kW 440 V AC 0.65 || 1.1 kW 500 V AC 0.65
- Motor Starter Type
- direct on line
- Poles Description
- 3P
- Product Name
- TeSys Hybrid
- Product Or Component Type
- ultra-compact starter
- Range
- TeSys
- Thermal Overload Class
- class 10A IEC 60947-4-2
- Thermal Protection Adjustment Range
- 0.18-2.4 A
- [Uc] Control Circuit Voltage
- 24 V DC
- [Ue] Rated Operational Voltage
- 500 V AC
