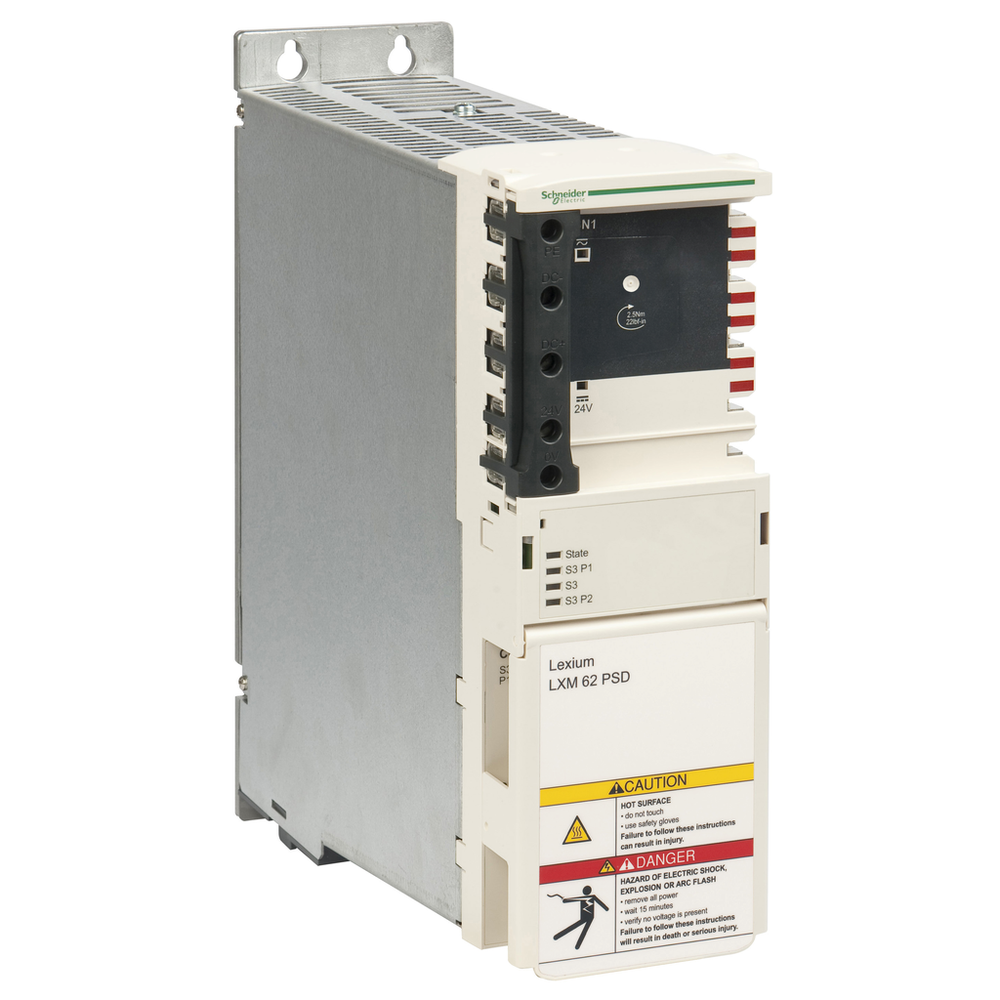

Schneider Electric LXM62PD84A11000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the PacDrive 3 range, an offer of power supplies for integrated drives. The power supply module features SERCOS III communication interface. It offers 2 relay outputs for volt-free contacts. It is a power supply module with a rated supply voltage of 400V three phase, 230V single/three phase and a rated supply current of 21A single phase, 42A three phase AC. It is an IP20 rated product. Its dimensions are 89.5mm (width) x 270mm (depth) x 310mm (height). It weighs 6.3kg. It is suitable for use in general machine control, packaging machine automation, material handling applications. This product is certified by CSA and UL. It meets EN/IEC 61800-5-1, EN/IEC 61800-3 and UL 508C standards. Lexium 62 ILM integrated servo modules can be controlled with all PacDrive LMC Eco and Pro/Pro 2 series motion controllers via SERCOS communication. Multiaxis integrated servo drives from 0.31kW to 1.91kW for automation solutions based on PacDrive 3.Lexium LXM 62 power supply drive - 42/84 A
Schneider Electric LXM62PD84A11000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Braking Resistance
- 15 Ohm
- Bus Voltage
- 270-700 V
- Depth
- 270 mm
- Height
- 310 mm
- Holding Time
- 15 min
- Line Rated Current
- 21 A single phase AC || 42 A three phase AC
- Marking
- CE
- Maximum Braking Power
- 46 kW
- Maximum Cable Capacity
- 1.36 mF
- Maximum Dc Bus Voltage
- 860 V
- Maximum Power
- 44.2 kW 400 V three phase AC || 53.2 kW 480 V three phase AC
- Net Weight
- 6.3 kg
- Nominal Power
- 22.1 kW 400 V three phase AC || 26.6 kW 480 V three phase AC
- Output Type
- 2 relays volt-free contacts
- Overvoltage Category
- III EN 61800-5-1
- Peak Current
- 42 A single phase AC 1 s || 84 A three phase AC 1 s
- Permanent Braking Power
- 400 W
- Physical Interface
- SERCOS III
- Power Supply Output Current
- 84 A
- Safety Level
- can reach SIL 2 EN 61508 || can reach PL d/category 3 EN/ISO 13849-1
- Supply Circuit Type
- AC
- Supply Frequency
- 50/60 Hz +/- 5 %
- [Uc] Control Circuit Voltage
- 24 V DC - 20...25 %)
- [Us] Rated Supply Voltage
- 400 V three phase - 10...10 %) || 230 V three phase - 10...10 %) || 230 V single phase - 10...10 %)
- Width
- 89.5 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 40-55 °C with current derating of 2 % per °C) || 5-40 °C
- Ambient Air Temperature For Storage
- -25-55 °C
- Environmental Characteristic
- 3K3 IEC 60721-3-3 5-85 %
- Ip Degree Of Protection
- IP20 EN/IEC 60721-3-3 with plugged-in connectors)
- Pollution Degree
- 2 EN/IEC 60721-3-3
- Product Certifications
- CSA || UL
- Shock Resistance
- 100 m/s² in operation EN/IEC 60721-3-3 || 300 m/s² during transport EN/IEC 60721-3-3
- Standards
- UL 508C || EN/IEC 61800-5-1 || EN/IEC 61800-3
- Vibration Resistance
- 10 m/s² EN/IEC 60721-3-3
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1406028EN
- Environmental Disclosure
- ENVPEP1406028EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Component Name
- LXM62
- Product Or Component Type
- power supply
- Range Of Product
- PacDrive 3
