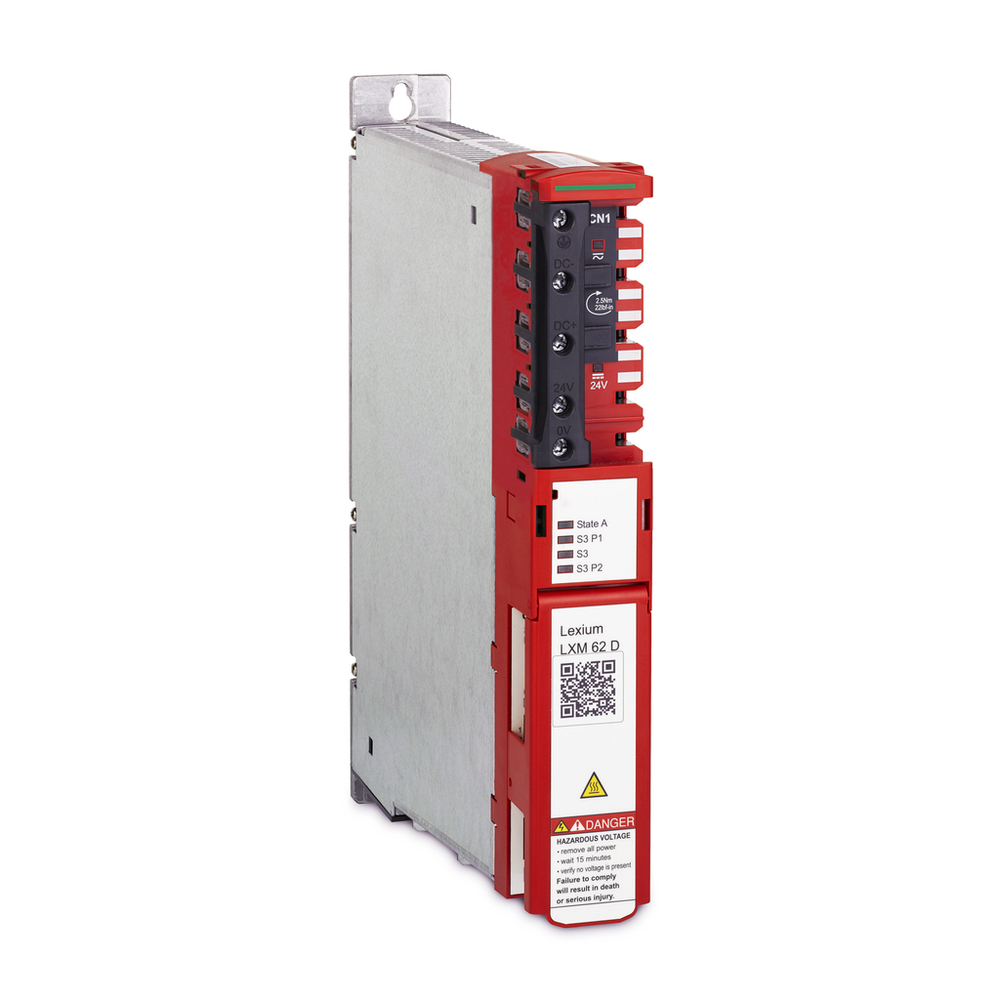

Schneider Electric LXM62DD15E21000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Lexium 62 Single Drive 15A Emb. Safety - accessory kit included
Schneider Electric LXM62DD15E21000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Continuous Output Current
- 5 A 4 kHz
- Continuous Power
- 2.4 kW
- Depth
- 270 mm
- Discrete Input Voltage
- 24 V DC for - 20...25 %
- Discrete Output Voltage
- 24 V DC
- Electrical Connection
- terminal 0.2...15 mm², AWG 24...AWG 16 CN4) || terminal 0.5...16 mm², AWG 20...AWG 6 CN5) || terminal 0.75...16 mm², AWG 18...AWG 6 CN6) || terminal 0.2...6 mm², AWG 24...AWG 10 CN7)
- Height
- 310 mm
- Net Weight
- 3 kg
- Nominal Power
- 2.4 kW
- Number Of Inputs
- 2 digital || 2 touch probe
- Number Of Outputs
- 2 digital
- Output Current 3S Peak
- 15 A 4 kHz
- Overvoltage Category
- III
- Phase
- single phase || three phase
- Product Compatibility
- servo motor SHS || servo motor SH3 70 mm, 2 optimized in terms of torque and speed || servo motor SH3 70 mm, 3 optimized in terms of torque and speed || servo motor SH3 100 mm, 1 optimized in terms of torque and speed || servo motor SH3 100 mm, 2 optimized in terms of torque and speed || servo motor SH3 100 mm, 2 optimized in terms of high torque || servo motor SH3 100 mm, 3 optimized in terms of high torque || servo motor SH3 140 mm, 1 optimized in terms of high torque || servo motor MH3 70 mm, 2 optimized in terms of torque and speed || servo motor MH3 70 mm, 3 optimized in terms of torque and speed || servo motor MH3 100 mm, 1 optimized in terms of torque and speed
- Safety Function
- STO (safe torque off) || SS1 (safe stop 1) || SS2 (safe stop 2) || SOS (safe operating stop) || SMS (safe maximum speed) || SLS (safe limited speed) || SDI (safe direction indication)
- Supply Frequency
- 50/60 Hz - 5...5 %
- Switching Frequency
- 8 kHz
- Tightening Torque
- CN1 2.5-2.5 N.m
- [Us] Rated Supply Voltage
- 400 V - 10...10 %)three phase || 230 V - 10...10 %)three phase || 230 V - 10...10 %)single phase
- Width
- 44.5 mm
Environment
- Ambient Air Temperature For Operation
- 5-55 °C
- Environmental Characteristic
- 3K3 IEC 60721-3-3
- Ip Degree Of Protection
- IP20 EN/IEC 60529
- Pollution Degree
- 2 EN/IEC 61800-5-2
- Product Certifications
- TÜV || EAC || CSA || UL || CE
- Relative Humidity
- 5-85 %
- Shock Resistance
- 100 m/s² EN/IEC 60721-3-3
- Standards
- EN 61800-5-2 || EN 61800-5-1 || EN 61800-3 || EN/ISO 13849-1 || IEC 62061 || UL 508C || IEC 61508 || EN 62061 || EN/ISO 13849-2 || CSA C22.2 No 14
- Vibration Resistance
- 10 m/s²EN/IEC 60721-3-3
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1406012EN
- Environmental Disclosure
- ENVPEP1406012EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Short Name
- LXM 62
- Product Or Component Type
- single drive
- Range Of Product
- PacDrive 3
