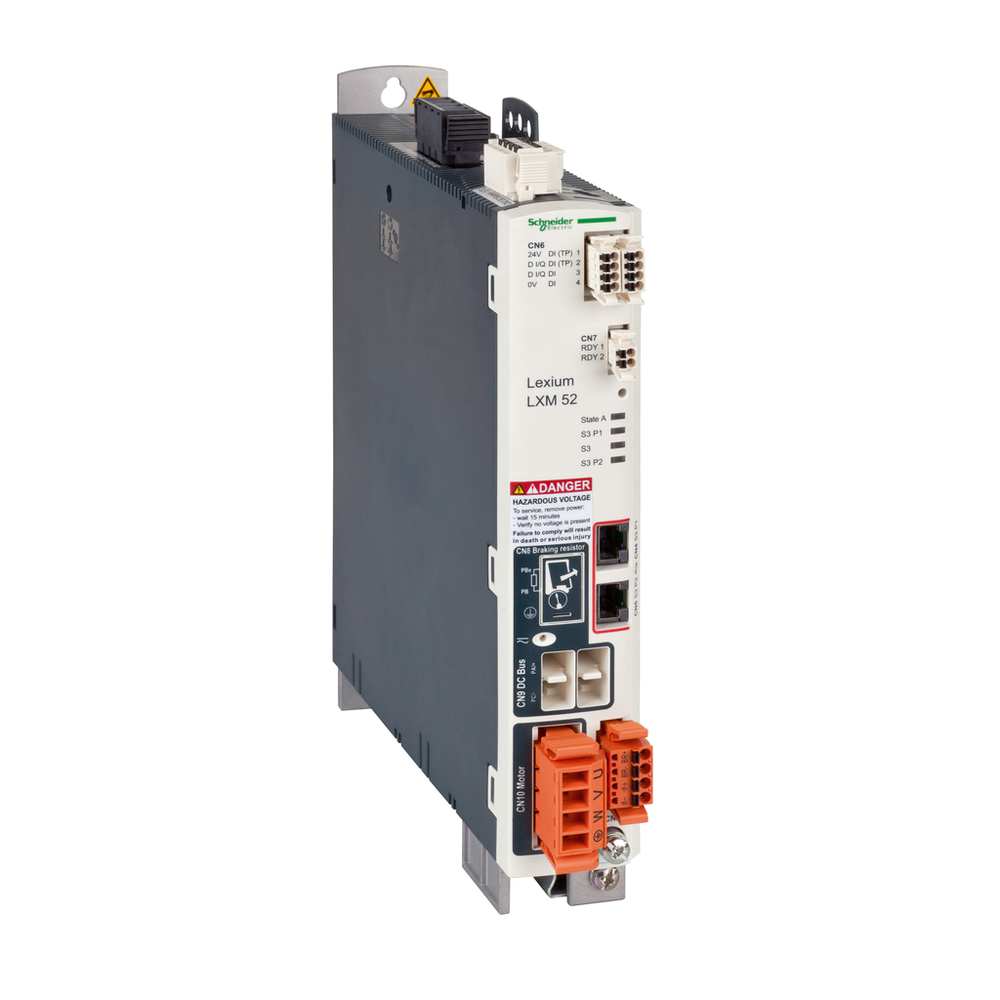

Schneider Electric LXM52DD18C41000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Lexium 52 & Motors range, an offer of standalone servo drives for PacDrive 3. The single drive features SERCOS III physical interface. It offers 4 digital inputs and 4 digital outputs. It is a single drive with a rated supply voltage of 208V to 480V, a continuous output current of 6A and a continuous power of 1.8kW. It is furnished with connector terminals for electrical connection. It is an IP20 rated product. It weighs 1.9kg. It is suitable for general machine control, packaging machine automation and material handling applications. This product is certified by CE. It meets UL 508C and EN/IEC 61800-3 standards. This product is compatible with servo motor SHS, servo motor SH3 (70mm, 3 motor stacks) and servo motor SH3 (100mm, 1 motor stack). Lexium 52 provides an ideal counterbalance to the Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions. Lexium Stand alone servo drives from 0.4kW and 7kW for PacDrive based automation solutions.LXM52 single drive 6A/18A
Schneider Electric LXM52DD18C41000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Contact Bounce Time
- > 1 ms compliment of STO_A, compliment of STO_B
- Continuous Output Current
- 6 A 8 kHz
- Continuous Power
- 3.3 kW
- Depth
- 217 mm
- Discrete Input Voltage
- 24 V DC
- Discrete Output Voltage
- 24 V DC
- Electrical Connection
- terminal 0.75...5.3 mm², AWG 18...AWG 10 CN1)
- Height
- 270 mm
- Net Weight
- 1.9 kg
- Nominal Power
- 1.8 kW
- Number Of Inputs
- 4 digital
- Number Of Outputs
- 2 digital
- Output Current 3S Peak
- 18 A
- Overvoltage Category
- III
- Phase
- 3 phase
- Supply Frequency
- 50...60 Hz - 5...5 %
- Switching Frequency
- 8 kHz
- Tightening Torque
- CN1 0.68-0.68 N.m
- [Us] Rated Supply Voltage
- 208...480 V - 15...10 %
- Width
- 48 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-50 °C
- Environmental Characteristic
- 3K3 IEC 60721-3-3
- Ip Degree Of Protection
- IP20 EN/IEC 60721-3-3
- Pollution Degree
- 2
- Product Certifications
- CE
- Relative Humidity
- 5-95 %
- Shock Resistance
- 100 m/s² EN/IEC 60721-3-3
- Standards
- UL 508C || EN/IEC 61800-3
- Vibration Resistance
- 10 m/s²EN/IEC 60721-3-3
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI110605EN
- Environmental Disclosure
- ENVPEP110705EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Short Name
- LXM 52
- Product Compatibility
- servo motor SHS || servo motor SH3 70 mm, 3 optimized in terms of torque and speed || servo motor SH3 100 mm, 1 optimized in terms of torque and speed || servo motor SH3 100 mm, 2 optimized in terms of torque and speed || servo motor SH3 100 mm, 3 optimized in terms of high torque || servo motor SH3 140 mm, 1 optimized in terms of high torque || servo motor MH3 100 mm, 2 optimized in terms of torque and speed
- Product Or Component Type
- single drive
- Range Of Product
- PacDrive 3
